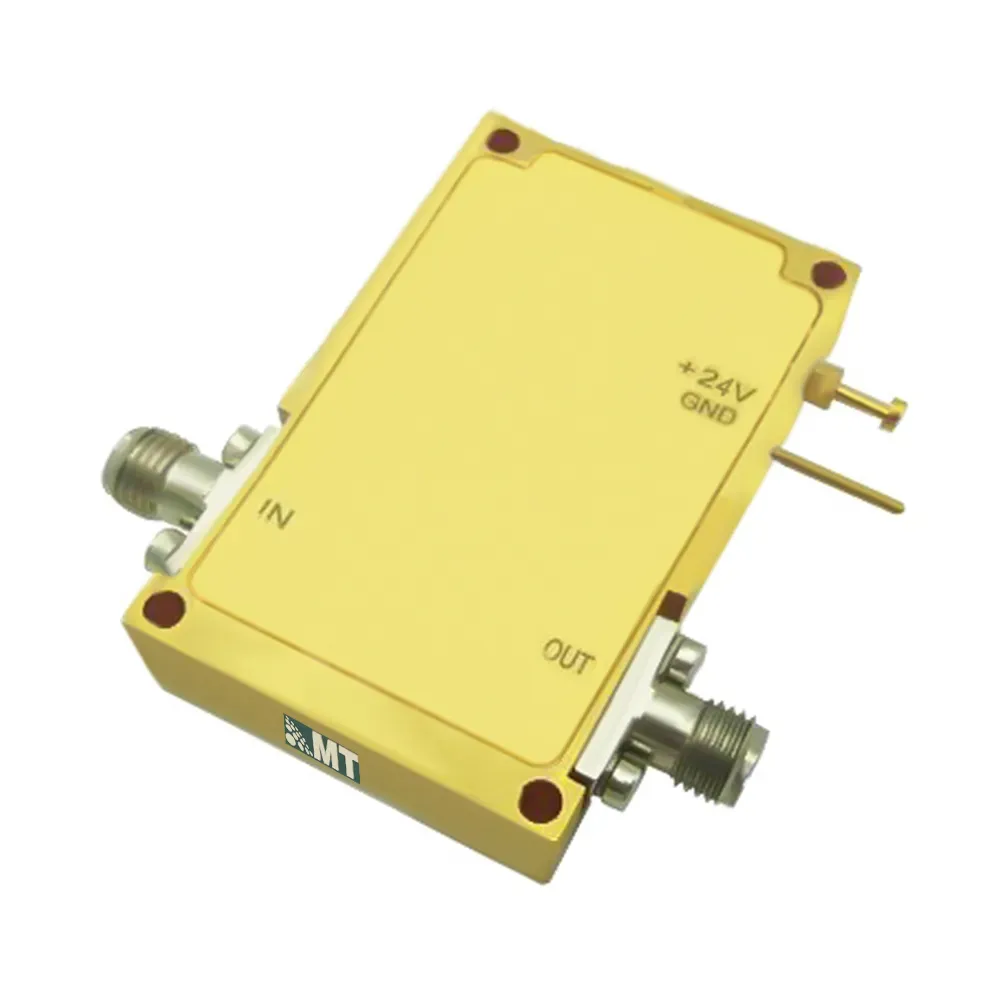

Product code: MT-0.5G8G-35-20
Low Noise Amplifier 0.5-8GHz, NF:2.5dB, Gain:35dB,P1dB:29dBm
| Model: MT-0.5G8G-35-20 |
| Ultra Wide Band: 0.5-8GHz |
| Gain: 35dB Typ |
| Noise Figure: 2.5dB Max |
| Good Power and Gain Flatness |
| 50 Ohm Matched Input / Output |
Product Part Number
MT-0.5G8G-35-20
Electrical & Mechanical Specification
| Electrical: | ||||
|---|---|---|---|---|
| Parameter | Min. | Typ. | Max. | Units |
| Frequency range | 0.5-8 | GHz | ||
| Gain | 30 | 35 | dB | |
| Gain Flatness | ±1.5 | dB | ||
| Noise Figure | 1.5 | 2.5 | dB | |
| Output P1dB | 26 | 29 | dBm | |
| Spurious | -60 | dBc | ||
| Input VSWR | 2.5 | 3.5 | :1 | |
| Output VSWR | 1.5 | 1.8 | :1 | |
| DC Voltage | 15 | V DC | ||
| DC Supply Current | 480 | mA | ||
| Impedance | 50 | Ohms | ||

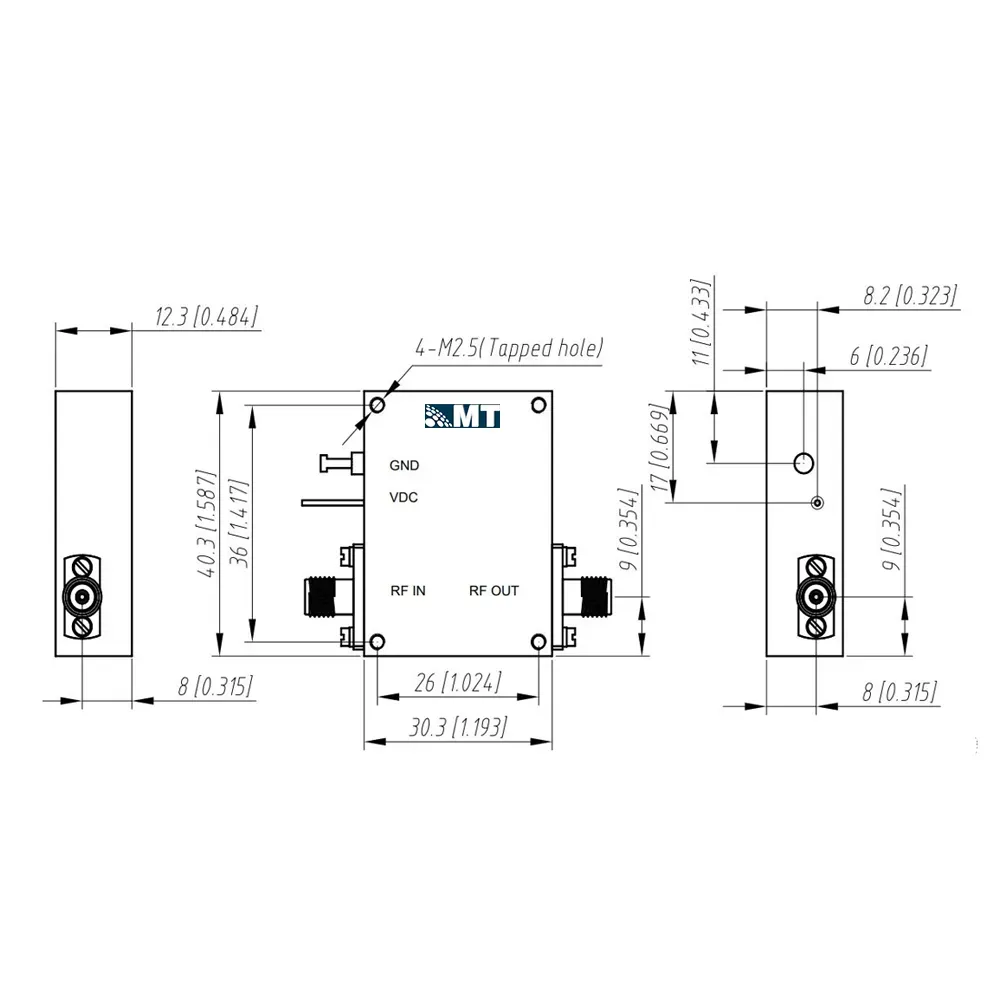

| Mechanical : | ||||
| Parameter | Value | Units | ||
| Input /Output Connector | SMA Female/SMA Female | |||
| DC Bias | Solder Pin | |||
| Size | 44.3*30.3*12.3 | mm | ||
| Weight | / | g | ||
| Environmental Conditions: | ||||
| Parameter | Min. | Typ. | Max. | Units |
| Operating Temperature | -40 | +85 | ℃ | |
| Non-operating Temperature | -55 | +125 | ℃ | |
| Relative humidity | 95 | % | ||
| Altitude | 50,000 | feet | ||
| Shock / Vibration(MIL-STD-810F) | 25g rms (15 degree 2KHz) endurance, 1 hour per axis | |||
| Shock(non operating) | 20G for 11msc half sin wave,3 axis both directions | |||
