Product code: MT-1G1.6G-32-13
Low Noise Amplifier 1-1.6GHz, NF:0.5dB, Gain:32dB,P1dB:13dBm
| Model: MT-1G1.6G-32-13 |
| Ultra Wide Band: 0.8-1.6GHz |
| Gain: 32dB Typ |
| Noise Figure: 0.5dB Typ |
| Good Power and Gain Flatness |
| 50 Ohm Matched Input / Output |
Product Part Number
MT-1G1.6G-32-13
Electrical & Mechanical Specification
| Electrical: | ||||
|---|---|---|---|---|
| Parameter | Min. | Typ. | Max. | Units |
| Frequency range | 1-1.6 | GHz | ||
| Gain | 27 | 32 | dB | |
| Gain Flatness | ±1.0 | ±1.75 | dB | |
| Noise Figure | 0.5 | dB | ||
| Output P1dB | 12 | 13 | dBm | |
| Input VSWR | 1.4 | 1.8 | :1 | |
| Output VSWR | 1.4 | 1.8 | :1 | |
| DC Voltage | 4.85 | 5 | 6 | V DC |
| DC Supply Current | 50 | 60 | mA | |
| Impedance | 50 | Ohms | ||

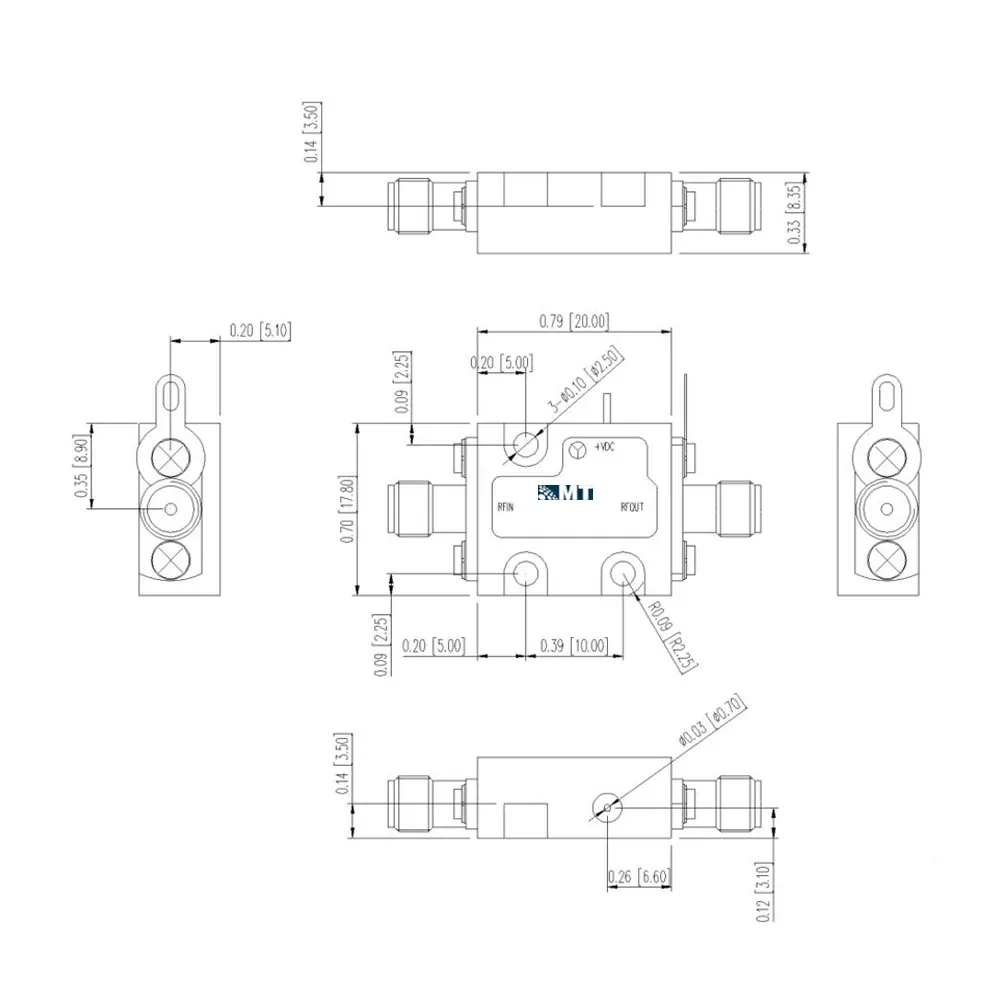

| Mechanical : | ||||
| Parameter | Value | Units | ||
| Input /Output Connector | SMA Female/SMA Female | |||
| DC Bias | Solder Pin | |||
| Size | 17.8*20*8.35 | mm | ||
| Weight | 11 | g | ||
| Environmental Conditions: | ||||
| Parameter | Min. | Typ. | Max. | Units |
| Operating Temperature | -40 | +70 | ℃ | |
| Non-operating Temperature | -65 | +150 | ℃ | |
| Relative humidity | 95 | % | ||
| Altitude | 50,000 | feet | ||
| Shock / Vibration(MIL-STD-810F) | 25g rms (15 degree 2KHz) endurance, 1 hour per axis | |||
| Shock(non operating) | 20G for 11msc half sin wave,3 axis both directions | |||
