Product code: MT-1G40G-15-50
Low Noise Amplifier 1-40GHz, NF:5.0dB, Gain:15dB,P1dB:19dBm
| Model: MT-1G40G-15-50 |
| Ultra Wide Band: 1-40GHz |
| Gain: 14dB Min |
| Noise Figure: 5.0dB Typ |
| Good Power and Gain Flatness |
| 50 Ohm Matched Input / Output |
Product Part Number
MT-1G40G-15-50
Electrical & Mechanical Specification
| Electrical: | ||||
|---|---|---|---|---|
| Parameter | Min | Typ | Max | Units |
| Frequency range | 1-40 | GHz | ||
| Gain | 14 | 15 | dB | |
| Gain Flatness | ±1.5 | dB | ||
| Noise Figure | 5 | 6 | dB | |
| Output P1dB | 18 | 19 | dBm | |
| Output IP3 | 30 | dBm | ||
| Input VSWR | 1.4 | 1.9 | :1 | |
| Output VSWR | 1.4 | 1.9 | :1 | |
| DC Voltage | 12 | V DC | ||
| DC Supply Current | 280 | mA | ||
| Impedance | 50 | Ohms | ||

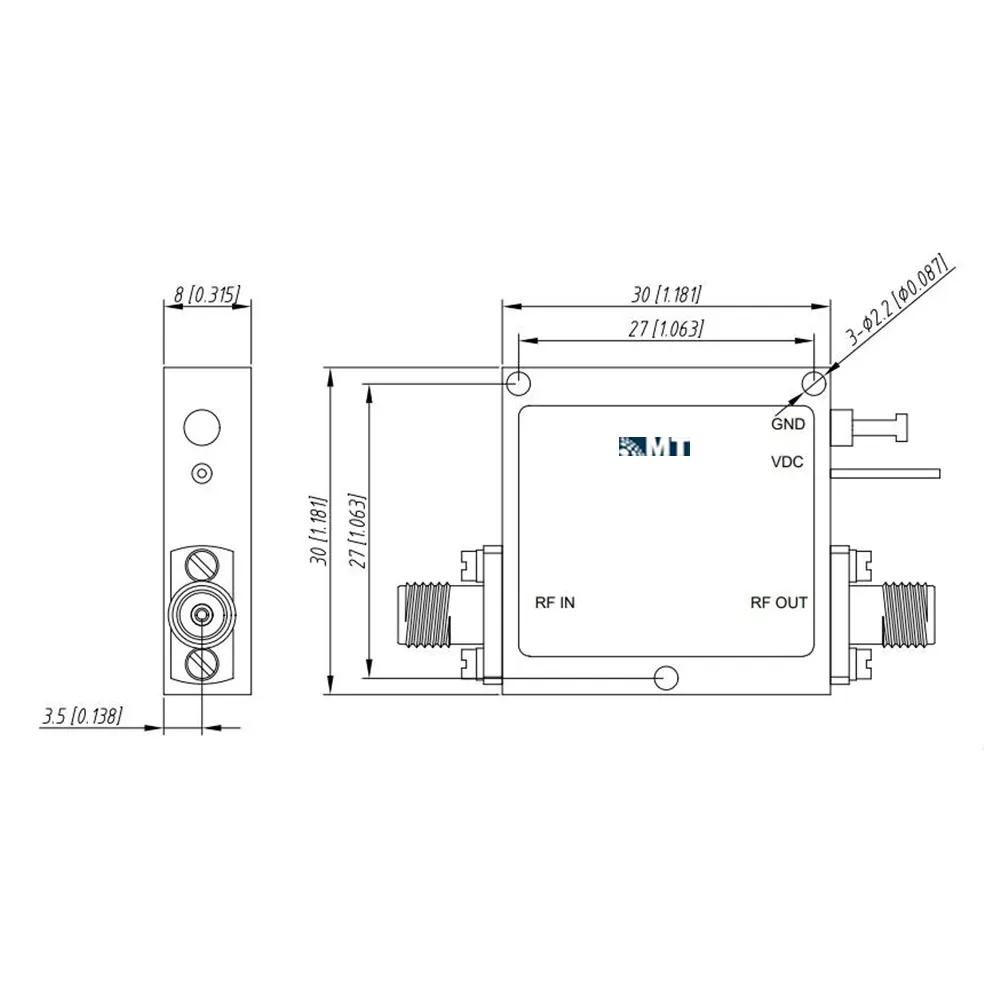

| Mechanical: | ||||
| Parameter | Value | Units | ||
| Input /Output Connector | 2.92mm Female/2.92mm Female | |||
| DC Bias | Solder Pin | |||
| Size | 30*30*10.2 | mm | ||
| Weight | / | g | ||
| Environmental Conditions: | ||||
| Parameter | Min | Typ | Max | Units |
| Operating Temperature | -40 | +75 | ℃ | |
| Non-operating Temperature | -55 | +125 | ℃ | |
| Relative humidity | 95 | % | ||
| Altitude | 50,000 | feet | ||
| Shock / Vibration(MIL-STD-810F) | 25g rms (15 degree 2KHz) endurance, 1 hour per axis | |||
| Shock(non operating) | 20G for 11msc half sin wave,3 axis both directions | |||
