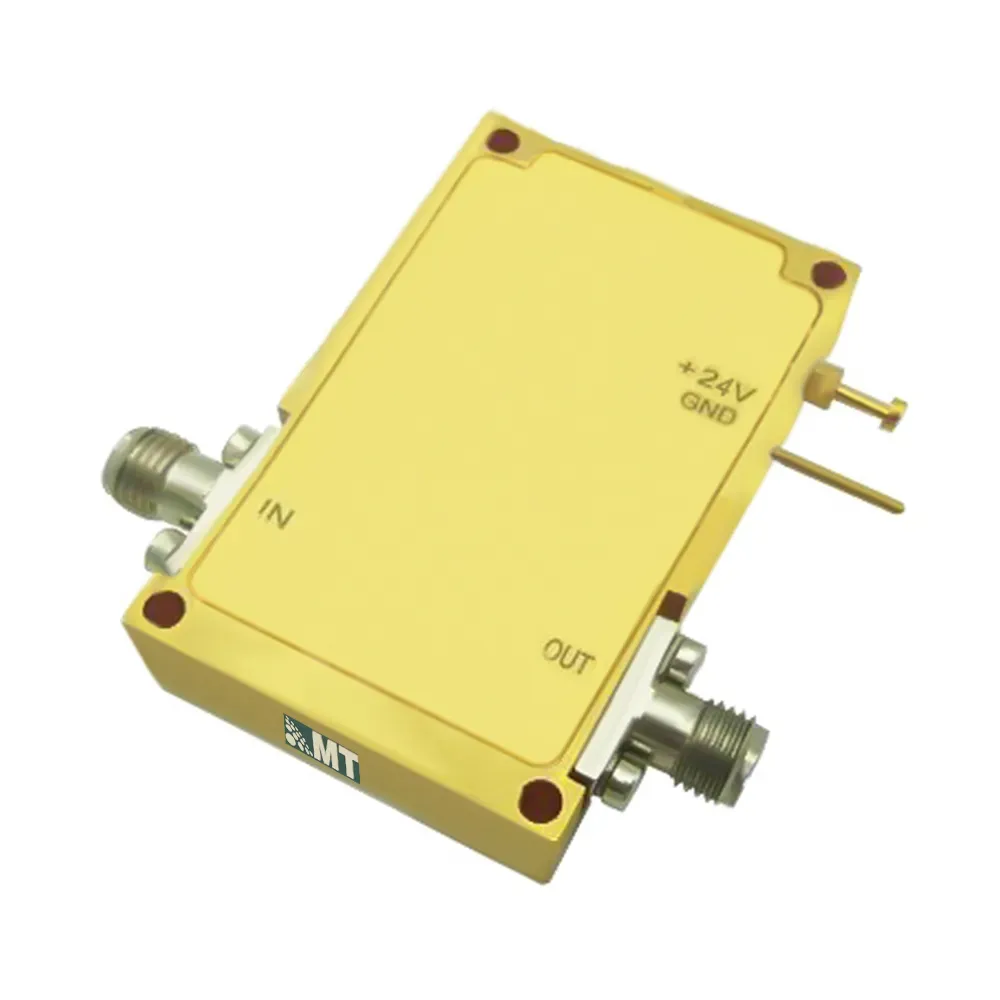

Product code: MT-1G4G-40-13
Low Noise Amplifier 1-4GHz, NF:1.3dB, Gain:40dB,P1dB:20dBm
| Model: MT-1G4G-40-13 |
| Ultra Wide Band: 1-4GHz |
| Gain: 40dB Min |
| Noise Figure: 1.3dB Max |
| Good Power and Gain Flatness |
| 50 Ohm Matched Input / Output |
Product Part Number
MT-1G4G-40-13
Electrical & Mechanical Specification
| Electrical: | ||||
|---|---|---|---|---|
| Parameter | Min | Typ | Max | Units |
| Frequency range | 1-4 | GHz | ||
| Gain | 40 | 43 | dB | |
| Noise Figure | 1 | 1.3 | dB | |
| Output P1dB | 12 | 16 | dBm | |
| Output Psat | 17 | dBm | ||
| Input VSWR | 1.6 | :1 | ||
| Output VSWR | 1.8 | :1 | ||
| DC Voltage | 8 | 12 | 16 | V DC |
| DC Supply Current | 100 | mA | ||
| Impedance | 50 | Ohms | ||

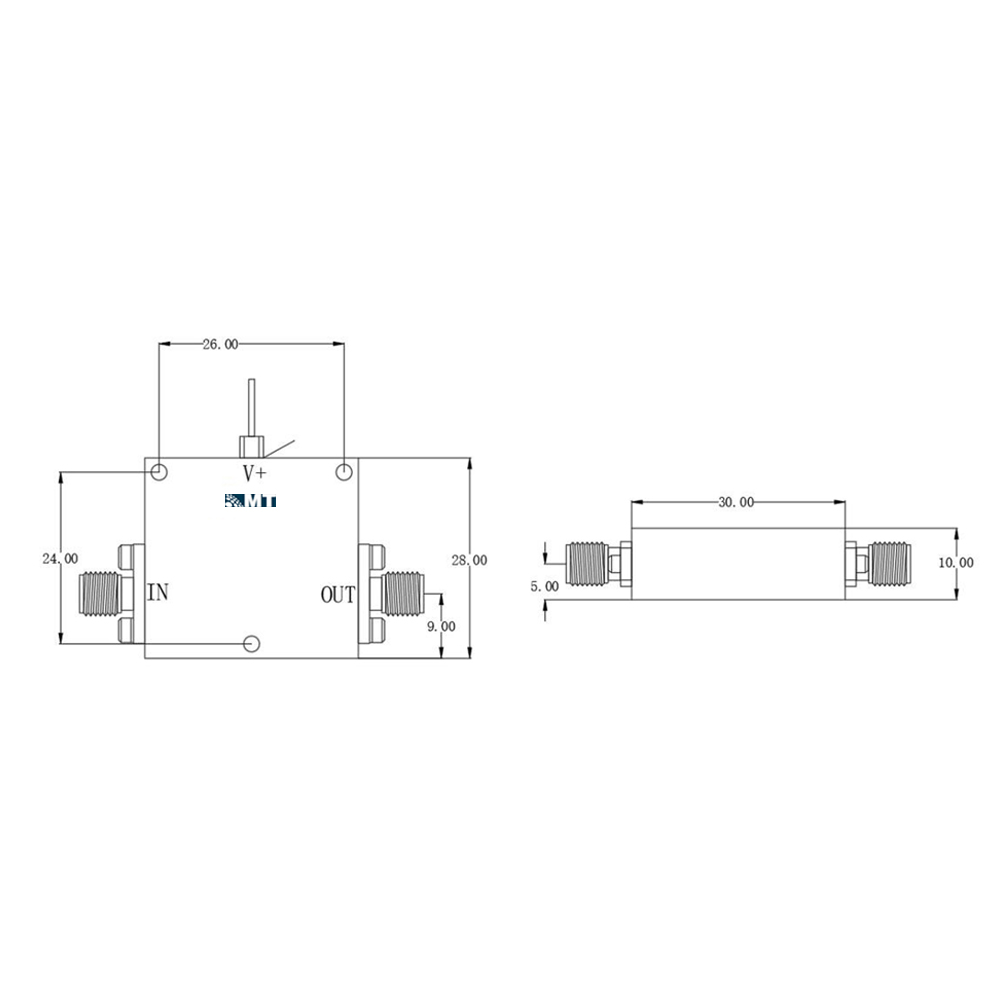

| Mechanical: | ||||
| Parameter | Value | Units | ||
| Input /Output Connector | SMA Female/SMA Female | |||
| DC Bias | Solder Pin | |||
| Size | 30*28*10 | mm | ||
| Weight | / | g | ||
| Environmental Conditions: | ||||
| Parameter | Min | Typ | Max | Units |
| Operating Temperature | -40 | +60 | ℃ | |
| Non-operating Temperature | -55 | +125 | ℃ | |
| Relative humidity | 95 | % | ||
| Altitude | 50,000 | feet | ||
| Shock / Vibration(MIL-STD-810F) | 25g rms (15 degree 2KHz) endurance, 1 hour per axis | |||
| Shock(non operating) | 20G for 11msc half sin wave,3 axis both directions | |||
