Product code: MT-11.75G12.75G-60-13

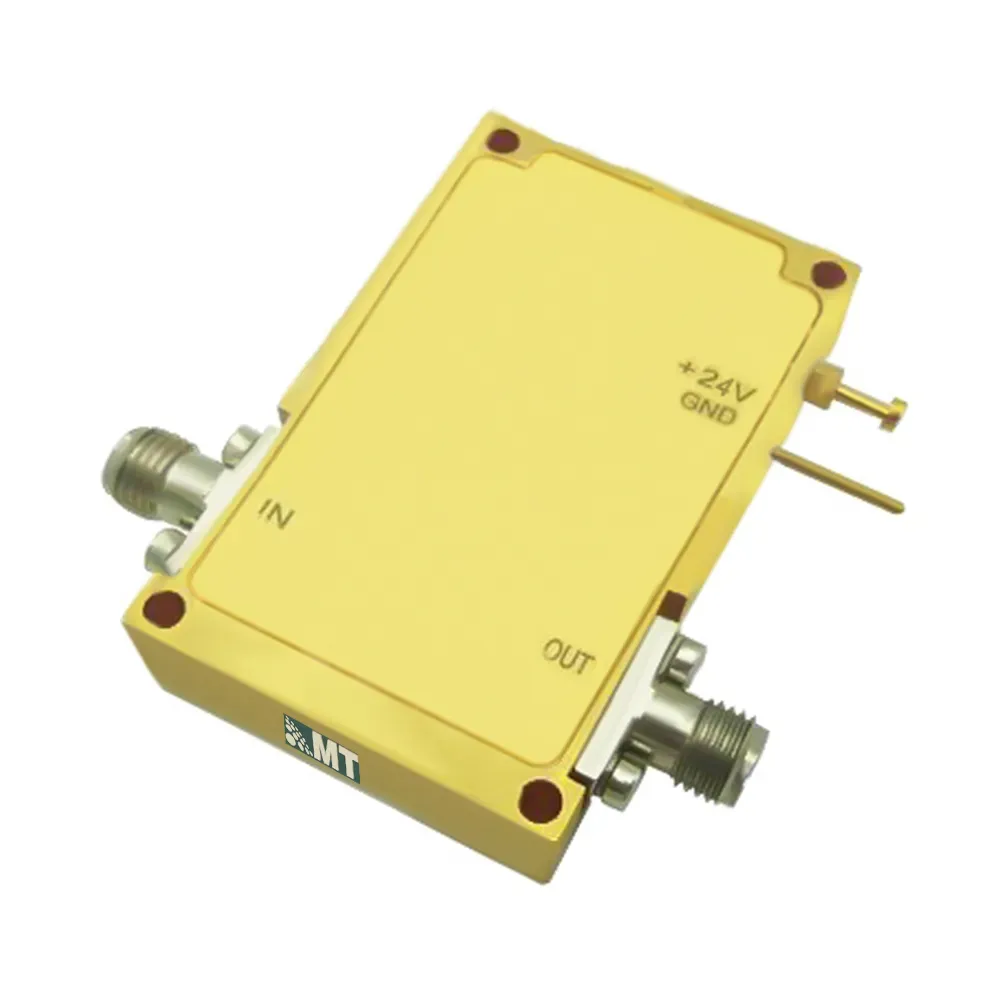

Low Noise Amplifier ,11.75-12.75GHz, NF:1.3dB, Gain:60dB,P1dB:11dBm
| Model: MT-11.75G12.75G-60-13 |
| Ultra Wide Band: 11.75-12.75GHz |
| Gain: 60dB Min |
| Noise Figure: 1.3dB Max |
| Good Power and Gain Flatness |
| 50 Ohm Matched Input / Output |
Product Part Number
MT-11.75G12.75G-60-13
Electrical & Mechanical Specification
| Electrical : | ||||
|---|---|---|---|---|
| Parameter | Min | Typ | Max | Units |
| Frequency range | 11.75-12.75 | GHz | ||
| Gain | 60 | 61 | dB | |
| Gain Flatness | ±1 | dB | ||
| Noise Figure | 1 | 1.3 | dB | |
| Output P1dB | 11 | dBm | ||
| Input VSWR | 1.8 | 2 | :1 | |
| Output VSWR | 1.8 | 2 | :1 | |
| DC Voltage | 12 | V DC | ||
| DC Supply Current | 100 | mA | ||
| Impedance | 50 | Ohms | ||
| Mechanical : | ||||
| Parameter | Value | Units | ||
| Input /Output Connector | SMA Female/SMA Female | |||
| DC Bias | Solder Pin | |||

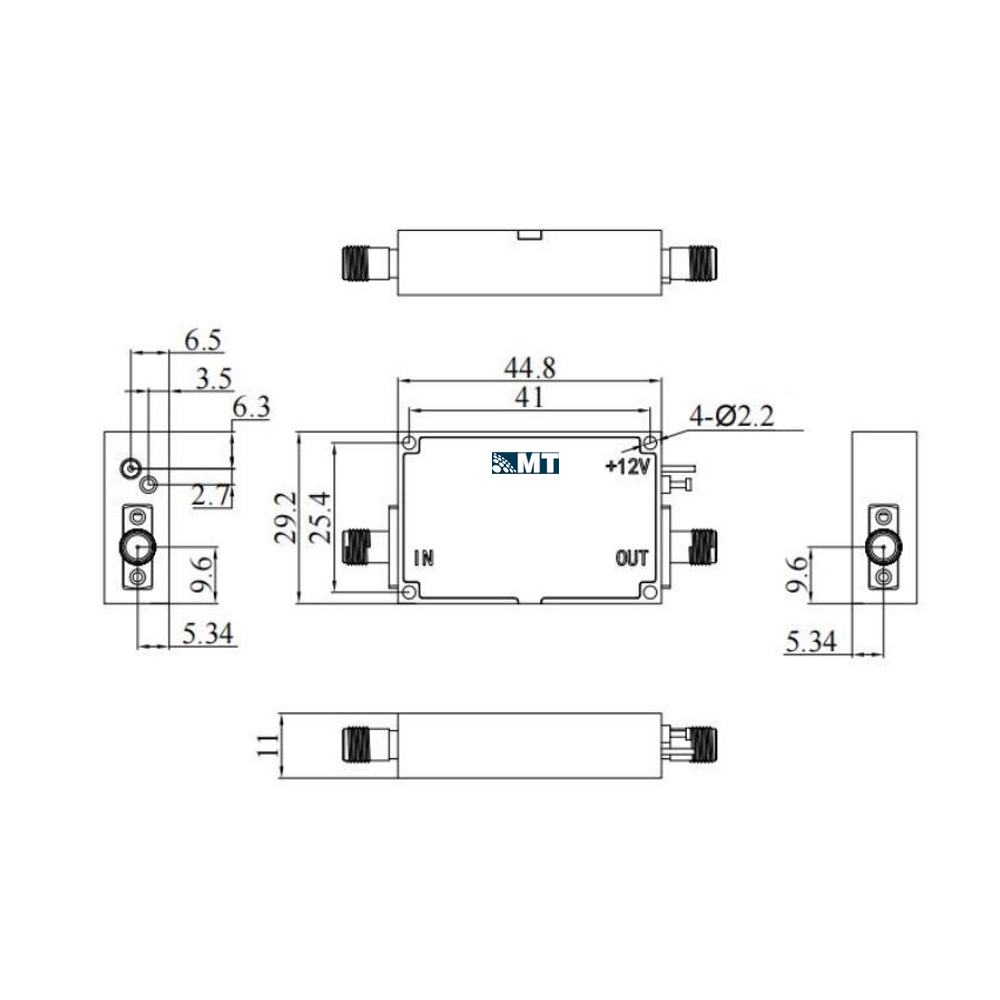

| Size | 44.8*29.2*11 | mm | ||
| Weight | 55 | g | ||
| Environmental Conditions: | ||||
| Parameter | Min | Typ | Max | Units |
| Operating Temperature | -40 | +85 | ℃ | |
| Non-operating Temperature | -55 | +125 | ℃ | |
| Relative humidity | 95 | % | ||
| Altitude | 50,000 | feet | ||
| Shock / Vibration(MIL-STD-810F) | 25g rms (15 degree 2KHz) endurance, 1 hour per axis | |||
| Shock(non operating) | 20G for 11msc half sin wave,3 axis both directions | |||
