Product code: MT-18G26G-30-25
Low Noise Amplifier 18-26GHz, NF:1.5dB, Gain:32dB,P1dB:15dBm
| Model: MT-18G26G-30-25 |
| Ultra Wide Band: 18-26GHz |
| Gain: 32dB Typ |
| Noise Figure: 1.5dB Typ |
| Good Power and Gain Flatness |
| 50 Ohm Matched Input / Output |
Product Part Number
MT-18G26G-30-25
Electrical & Mechanical Specification

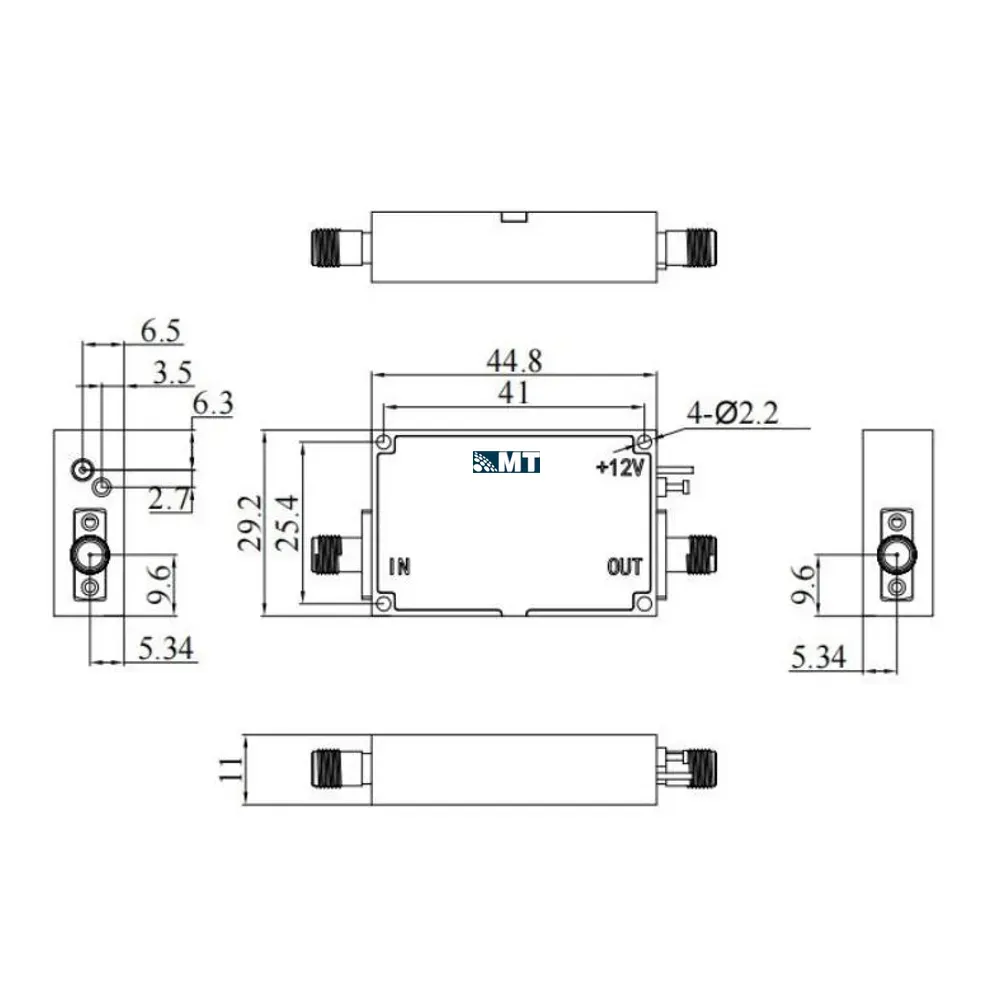

| Electrical : | ||||
|---|---|---|---|---|
| Parameter | Min | Typ | Max | Units |
| Frequency range | 18-26 | GHz | ||
| Gain | 30 | 32 | dB | |
| Gain Flatness | ±1.5 | ±2.5 | dB | |
| Noise Figure | 1.5 | 2 | dB | |
| Output P1dB | 13 | 15 | dBm | |
| Output IP3 | 25 | dBm | ||
| Input VSWR | 1.5 | 2 | :1 | |
| Output VSWR | 1.8 | 2 | :1 | |
| DC Voltage | 12 | V DC | ||
| DC Supply Current | 260 | mA | ||
| Impedance | 50 | Ohms | ||
| Mechanical : | ||||
| Parameter | Value | Units | ||
| Input /Output Connector | SMA Female/SMA Female | |||
| DC Bias | Solder Pin | |||
| Size | 30*30*8 | mm | ||
| Weight | / | g | ||
| Environmental Conditions: | ||||
| Parameter | Min | Typ | Max | Units |
| Operating Temperature | -45 | +85 | ℃ | |
| Non-operating Temperature | -55 | +125 | ℃ | |
| Relative humidity | 95 | % | ||
| Altitude | 50,000 | feet | ||
| Shock / Vibration(MIL-STD-810F) | 25g rms (15 degree 2KHz) endurance, 1 hour per axis | |||
| Shock(non operating) | 20G for 11msc half sin wave,3 axis both directions | |||
