Product code: MT-18G27G-52-28
Low Noise Amplifier 18-27GHz, NF:2.8dB, Gain:52dB,P1dB:8dBm
| Model: MT-18G27G-52-28 |
| Ultra Wide Band: 18-27GHz |
| Gain: 52dB Min |
| Noise Figure: 2.8dB Max |
| Good Power and Gain Flatness |
| 50 Ohm Matched Input / Output |
Product Part Number
MT-18G27G-52-28
Electrical & Mechanical Specification
| Electrical : | ||||
|---|---|---|---|---|
| Parameter | Min | Typ | Max | Units |
| Frequency range | 18-27 | GHz | ||
| Gain | 52 | dB | ||
| Gain Flatness | ±0.6 | dB | ||
| Noise Figure | 2.8 | dB | ||
| Output P1dB | 8 | dBm | ||
| Input VSWR | 2 | :1 | ||
| DC Voltage | 12 | V DC | ||
| DC Supply Current | 200 | mA | ||
| Impedance | 50 | Ohms | ||
| Mechanical : | ||||
| Parameter | Value | Units | ||
| Input /Output Connector | 2.92mm Female/2.9mm Female | |||
| DC Bias | Solder Pin | |||

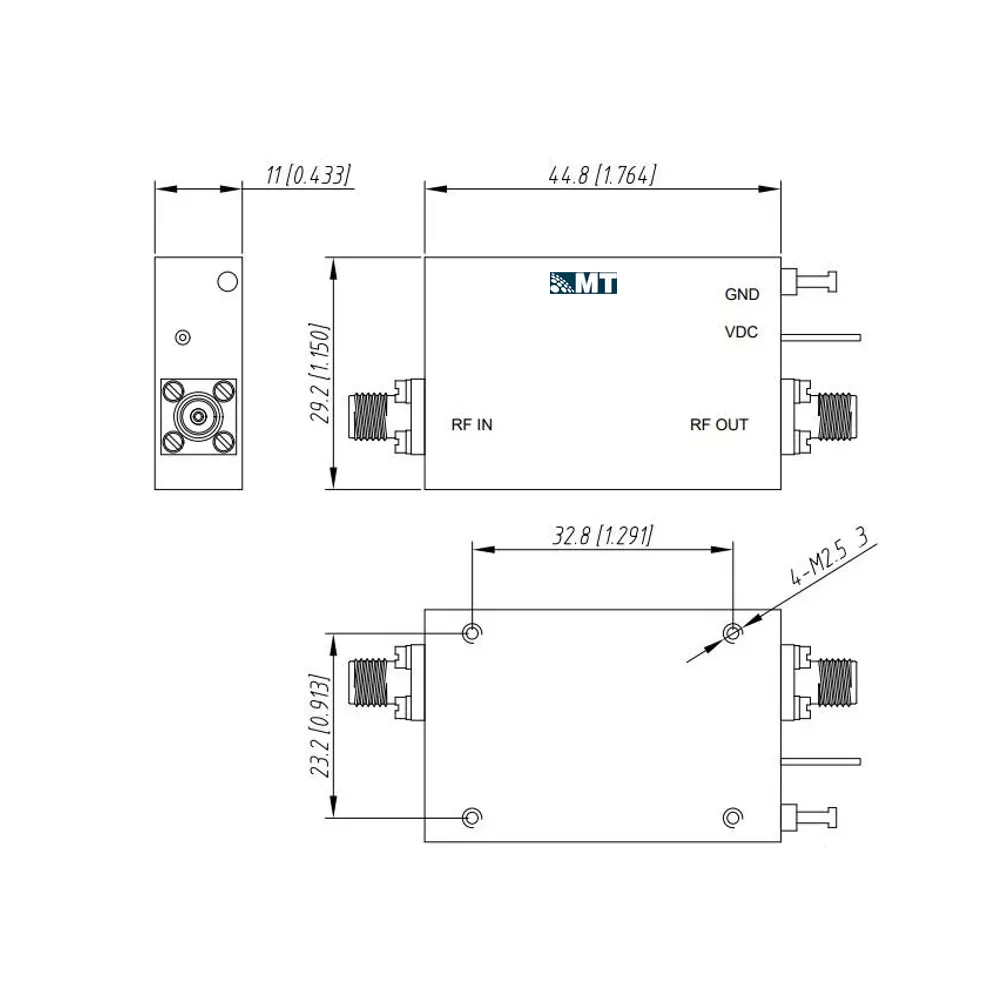

| Size | 44.8*29.2*11 | mm | ||
| Weight | / | g | ||
| Environmental Conditions: | ||||
| Parameter | Min | Typ | Max | Units |
| Operating Temperature | -45 | +85 | ℃ | |
| Non-operating Temperature | -55 | +125 | ℃ | |
| Relative humidity | 95 | % | ||
| Altitude | 50,000 | feet | ||
| Shock / Vibration(MIL-STD-810F) | 25g rms (15 degree 2KHz) endurance, 1 hour per axis | |||
| Shock(non operating) | 20G for 11msc half sin wave,3 axis both directions | |||
