Product code: MT-18G40G-11-25
Low Noise Amplifier 18-40GHz, NF:2.5dB, Gain:11dB,P1dB:11dBm
| Model: MT-18G40G-11-25 |
| Ultra Wide Band: 18-40GHz |
| Gain: 11dB Typ |
| Noise Figure: 2.5dB Typ |
| Good Power and Gain Flatness |
| 50 Ohm Matched Input / Output |
Product Part Number
MT-18G40G-11-25
Electrical & Mechanical Specification
| Electrical : | ||||
|---|---|---|---|---|
| Parameter | Min | Typ | Max | Units |
| Frequency range | 18-40 | GHz | ||
| Gain | 11 | dB | ||
| Gain Flatness | ±2.0 | dB | ||
| Noise Figure | 2.5 | 3 | dB | |

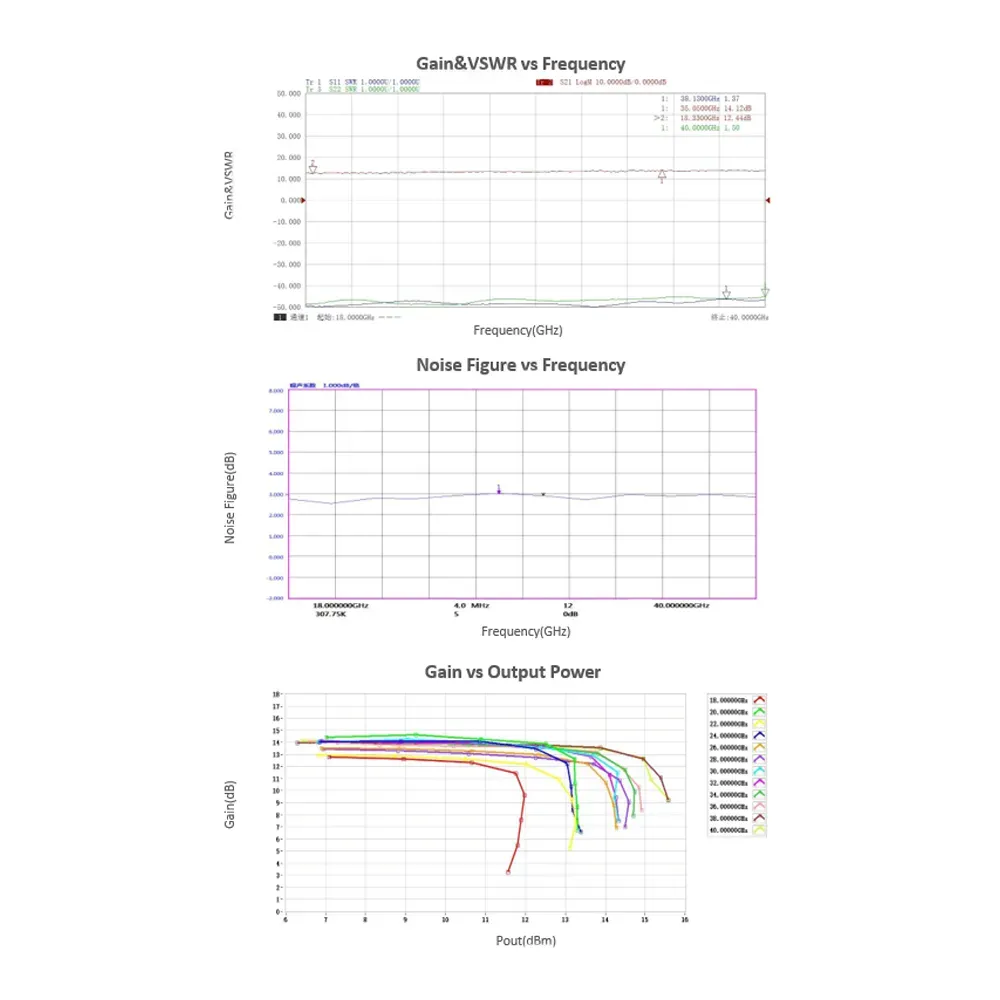

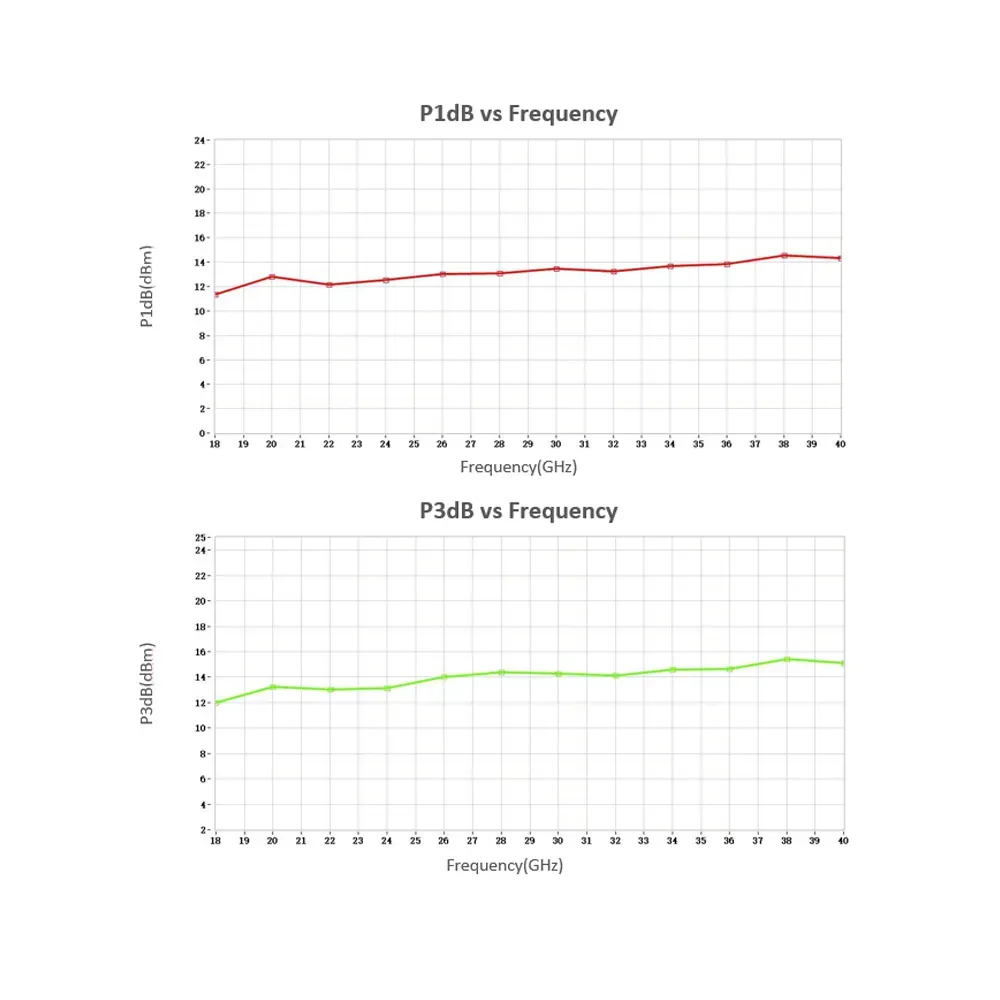

| Output P1dB | 10 | 11 | dBm | |
| Input VSWR | 2 | 2.5 | :1 | |
| Output VSWR | 2 | 2.5 | :1 | |
| DC Voltage | 8 | 12 | V DC | |
| DC Supply Current | 30 | mA | ||
| Impedance | 50 | Ohms | ||
| Mechanical : | ||||
| Parameter | Value | Units | ||
| Input /Output Connector | 2.92mm Female/2.92mm Female | |||
| DC Bias | Solder Pin | |||

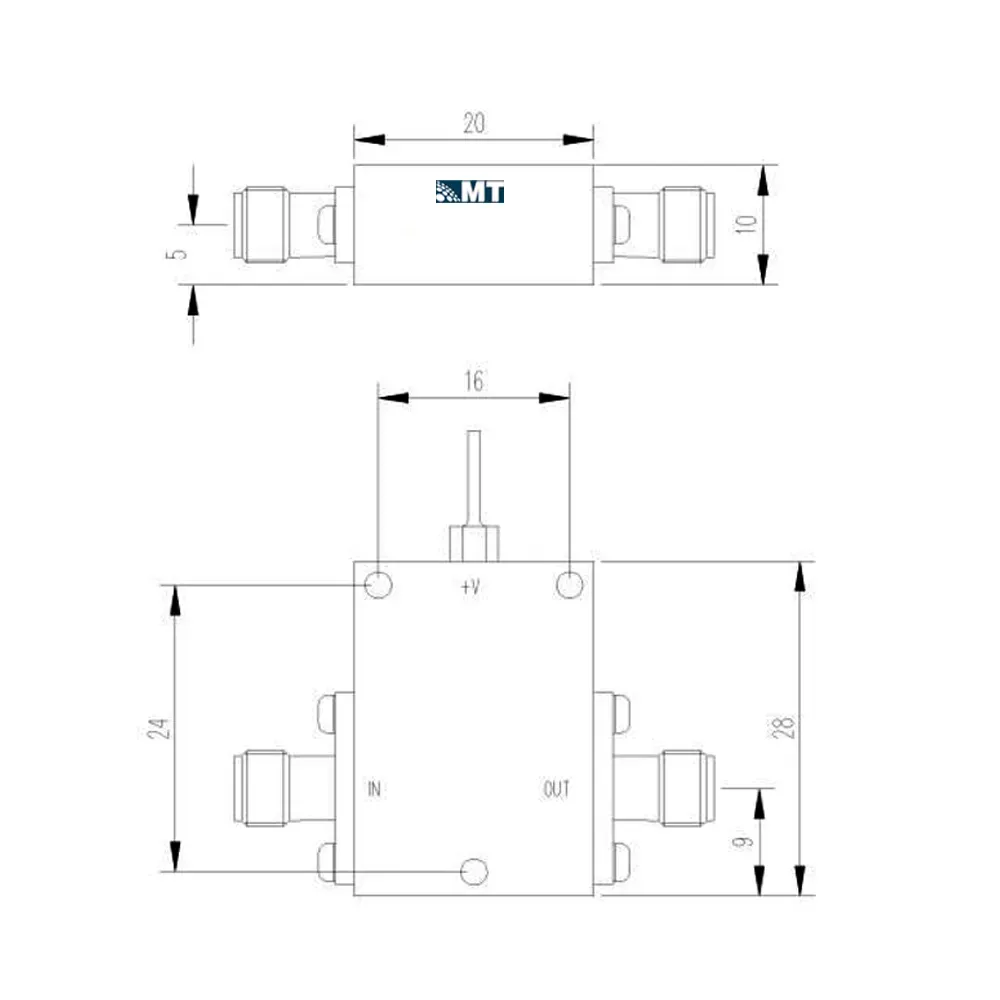

| Size | 28*16*20 | mm | ||
| Weight | / | g | ||
| Environmental Conditions: | ||||
| Parameter | Min | Typ | Max | Units |
| Operating Temperature | -40 | +85 | ℃ | |
| Non-operating Temperature | -55 | +125 | ℃ | |
| Relative humidity | 95 | % | ||
| Altitude | 50,000 | feet | ||
| Shock / Vibration(MIL-STD-810F) | 25g rms (15 degree 2KHz) endurance, 1 hour per axis | |||
| Shock(non operating) | 20G for 11msc half sin wave,3 axis both directions | |||
