Product code: MT-18G40G-25-30
Low Noise Amplifier 18-40GHz, NF:3.0dB, Gain:25dB,P1dB:15dBm
| Model: MT-18G40G-25-30 |
| Ultra Wide Band: 18-40GHz |
| Gain: 25dB Typ |
| Noise Figure: 3dB Max |
| Good Power and Gain Flatness |
| 50 Ohm Matched Input / Output |
Product Part Number
MT-18G40G-25-30
Electrical & Mechanical Specification
| Electrical : | ||||
|---|---|---|---|---|
| Parameter | Min | Typ | Max | Units |
| Frequency range | 18-40 | GHz | ||
| Gain | 25 | dB | ||
| Gain Flatness | ±2.5 | dB | ||
| Noise Figure | 3 | dB | ||

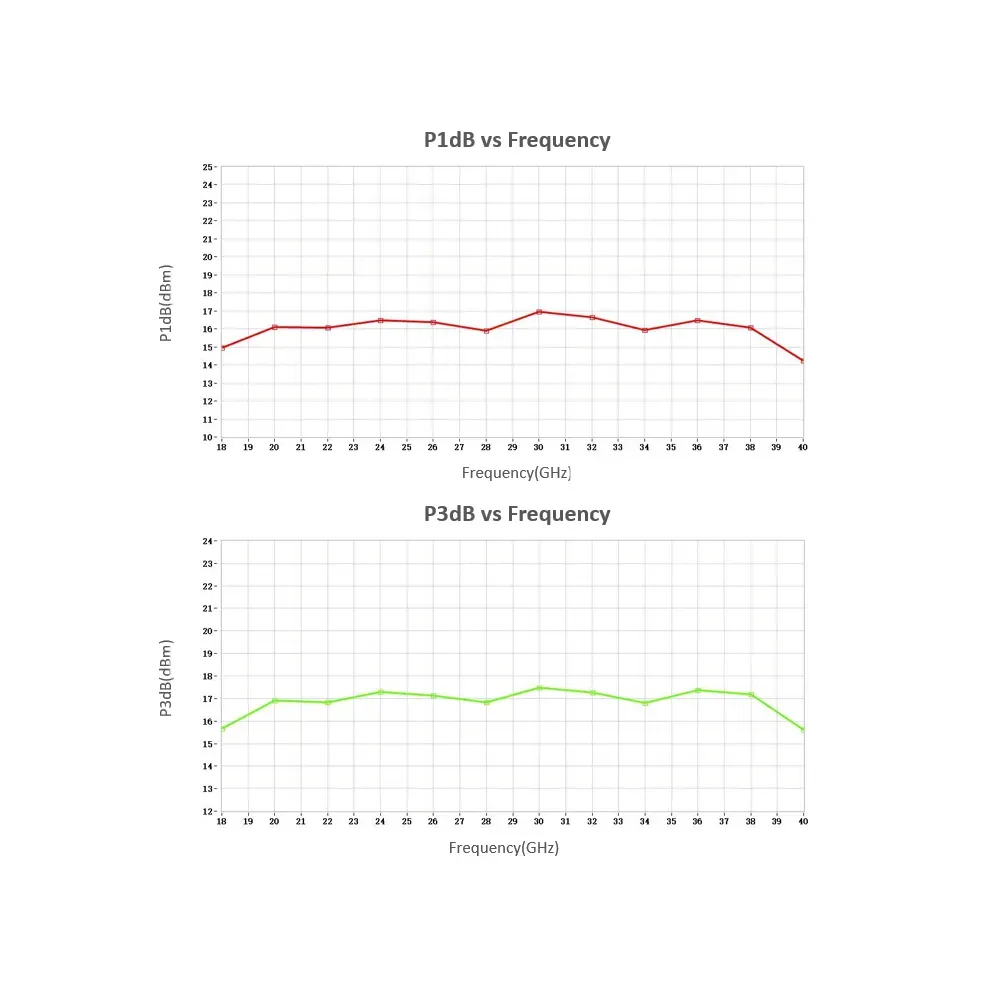

| Output P1dB | 15 | dBm | ||
| Spurious | -60 | dBc | ||
| Input VSWR | 2.2 | :1 | ||
| Output VSWR | 2.2 | :1 | ||
| DC Voltage | 8 | 12 | 20 | V DC |
| DC Supply Current | 80 | mA | ||
| Impedance | 50 | Ohms | ||
| Mechanical : | ||||
| Parameter | Value | Units | ||
| Input /Output Connector | 2.92 Female | |||
| DC Bias | Solder Pin | |||

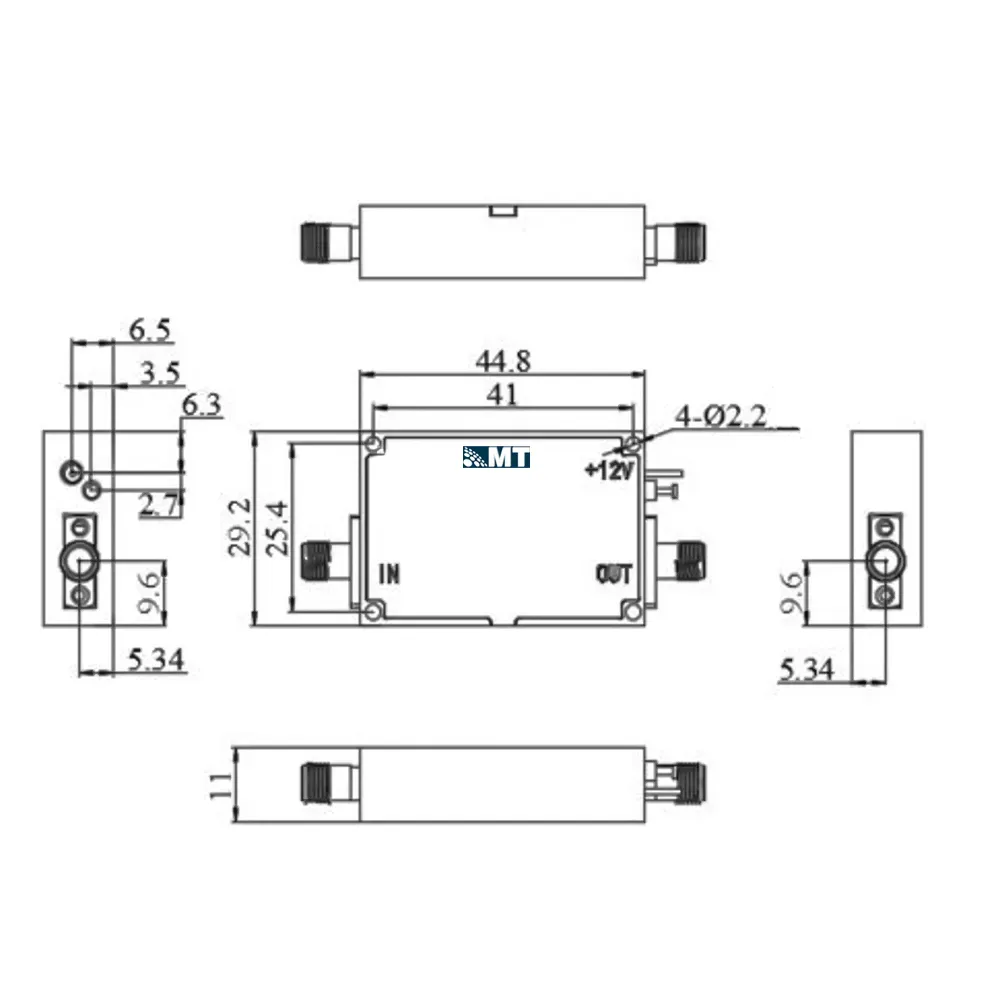

| Size | 44.8*29.2*11 | mm | ||
| Weight | 55 | g | ||
| Environmental Conditions: | ||||
| Parameter | Min | Typ | Max | Units |
| Operating Temperature | -45 | +85 | ℃ | |
| Non-operating Temperature | -55 | +125 | ℃ | |
| Relative humidity | 95 | % | ||
| Altitude | 50,000 | feet | ||
| Shock / Vibration(MIL-STD-810F) | 25g rms (15 degree 2KHz) endurance, 1 hour per axis | |||
| Shock(non operating) | 20G for 11msc half sin wave,3 axis both directions | |||
