Product code: MT-2G8G-32-11
Low Noise Amplifier 2-8GHz, NF:0.8dB, Gain:35dB,P1dB:15dBm
| Model: MT-2G8G-32-11 |
| Ultra Wide Band: 2-8GHz |
| Gain: 35dB Typ |
| Noise Figure: 0.8dB Typ |
| Good Power and Gain Flatness |
| 50 Ohm Matched Input / Output |
Product Part Number
MT-2G8G-32-11
Electrical & Mechanical Specification
| Electrical: | ||||
|---|---|---|---|---|
| Parameter | Min. | Typ. | Max. | Units |
| Frequency range | 2-8 | GHz | ||
| Gain | 32 | 35 | dB | |
| Gain Flatness | ±0.5 | ±1.3 | dB | |
| Noise Figure | 0.8 | 1.1 | dB | |
| Output P1dB | 13 | 15 | dBm | |
| Output Psat | 16 | dBm | ||
| Output IP3 | 25 | dBm | ||
| Input VSWR | 1.6 | 2 | :1 | |
| Output VSWR | 1.6 | 2 | :1 | |
| DC Voltage | 12 | V DC | ||
| DC Supply Current | 100 | 130 | mA | |
| Impedance | 50 | Ohms | ||

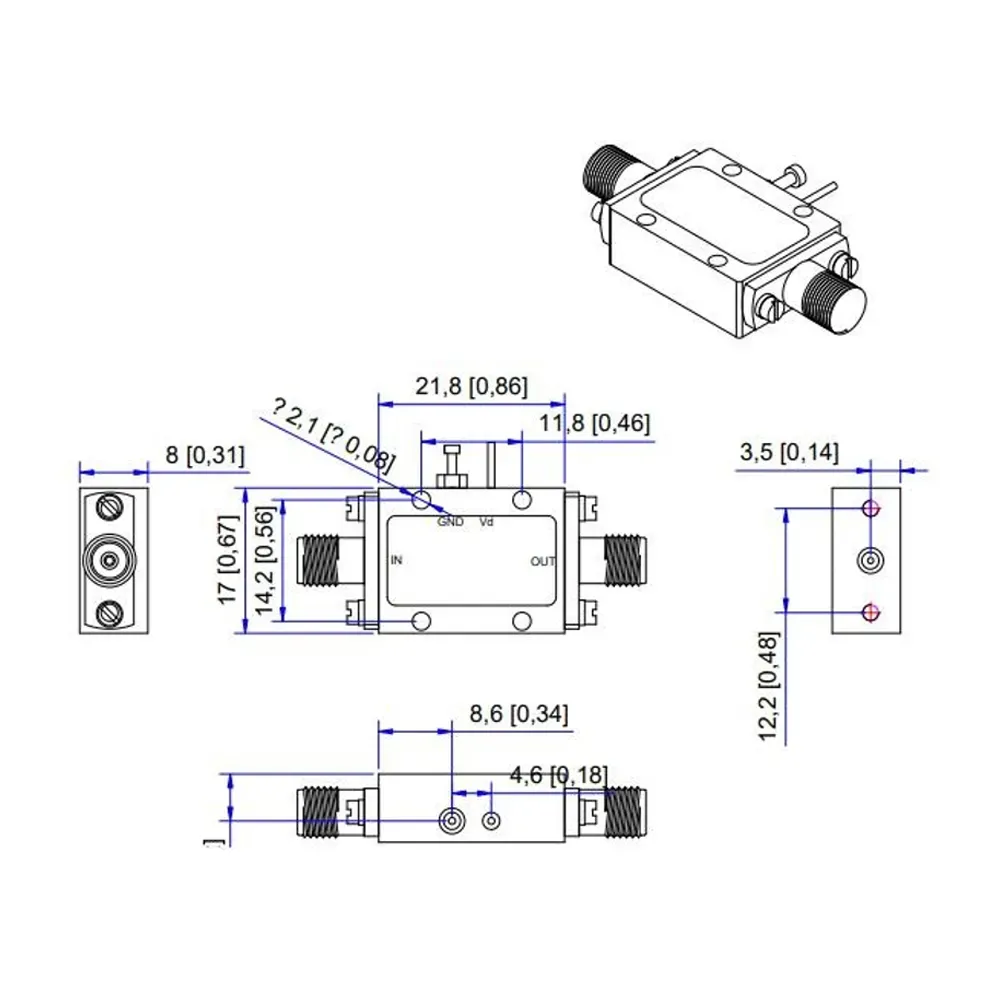

| Mechanical : | ||||
| Parameter | Value | Units | ||
| Input /Output Connector | SMA Female/SMA Female | |||
| DC Bias | Solder Pin | |||
| Size | 21.8*17*8 | mm | ||
| Weight | 55 | g | ||
| Environmental Conditions: | ||||
| Parameter | Min. | Typ. | Max. | Units |
| Operating Temperature | -45 | +85 | ℃ | |
| Non-operating Temperature | -55 | +125 | ℃ | |
| Relative humidity | 95 | % | ||
| Altitude | 50,000 | feet | ||
| Shock / Vibration(MIL-STD-810F) | 25g rms (15 degree 2KHz) endurance, 1 hour per axis | |||
| Shock(non operating) | 20G for 11msc half sin wave,3 axis both directions | |||
Request a Quote
Other Inquiries
Please send purchase request at sales@mtsrl.in
