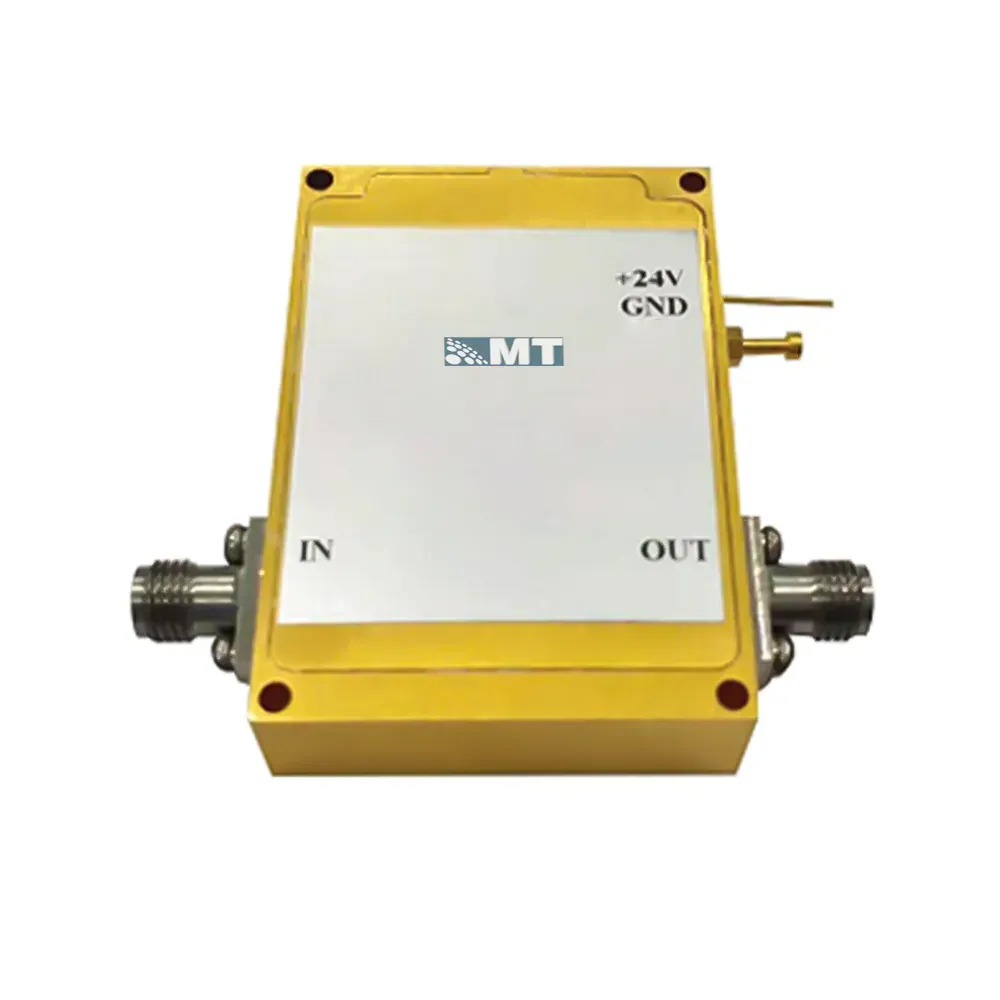

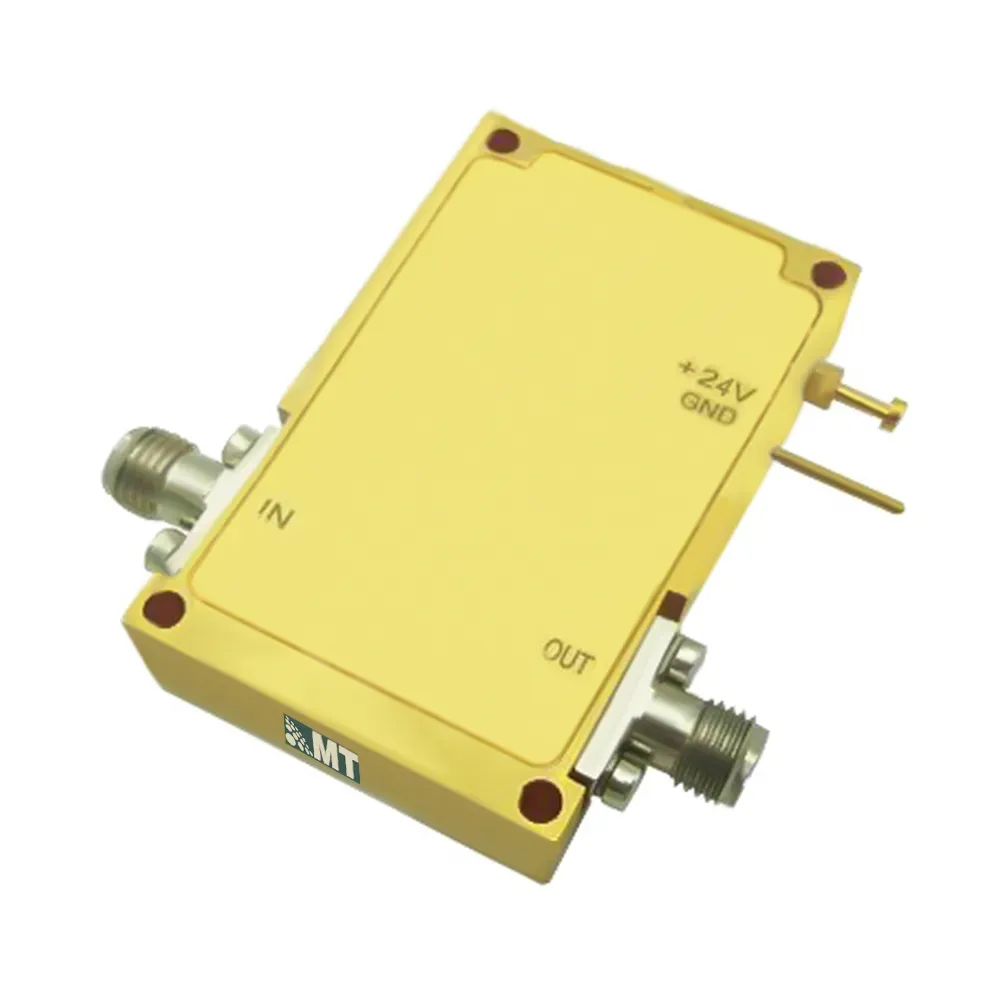

Product code: MT-23.8G24.2G-18-45
Low Noise Amplifier ,23.8-24.2GHz, NF:4.5dB, Gain:18dB,P1dB:13dBm
| Model: MT-23.8G24.2G-18-45 |
| Ultra Wide Band: 23.8-24.2GHz |
| Gain: 18dB Min |
| Noise Figure: 4.5dB Max |
| Good Power and Gain Flatness |
| 50 Ohm Matched Input / Output |
Product Part Number
MT-23.8G24.2G-18-45
Electrical & Mechanical Specification
| Electrical : | ||||
|---|---|---|---|---|
| Parameter | Min | Typ | Max | Units |
| Frequency range | 23.8-24.2 | GHz | ||
| Gain | 18 | dB | ||
| Gain Flatness | ±0.6 | dB | ||
| Noise Figure | 4.5 | dB | ||
| Output P1dB | 13 | dBm | ||
| Input VSWR | 1.8 | :1 | ||
| Output VSWR | 1.8 | :1 | ||
| DC Voltage | 12 | V DC | ||
| DC Supply Current | 120 | mA | ||
| Impedance | 50 | Ohms | ||
| Mechanical : | ||||
| Parameter | Value | Units | ||
| Input /Output Connector | 2.92mm Female/2.92mm Female | |||
| DC Bias | Solder Pin | |||

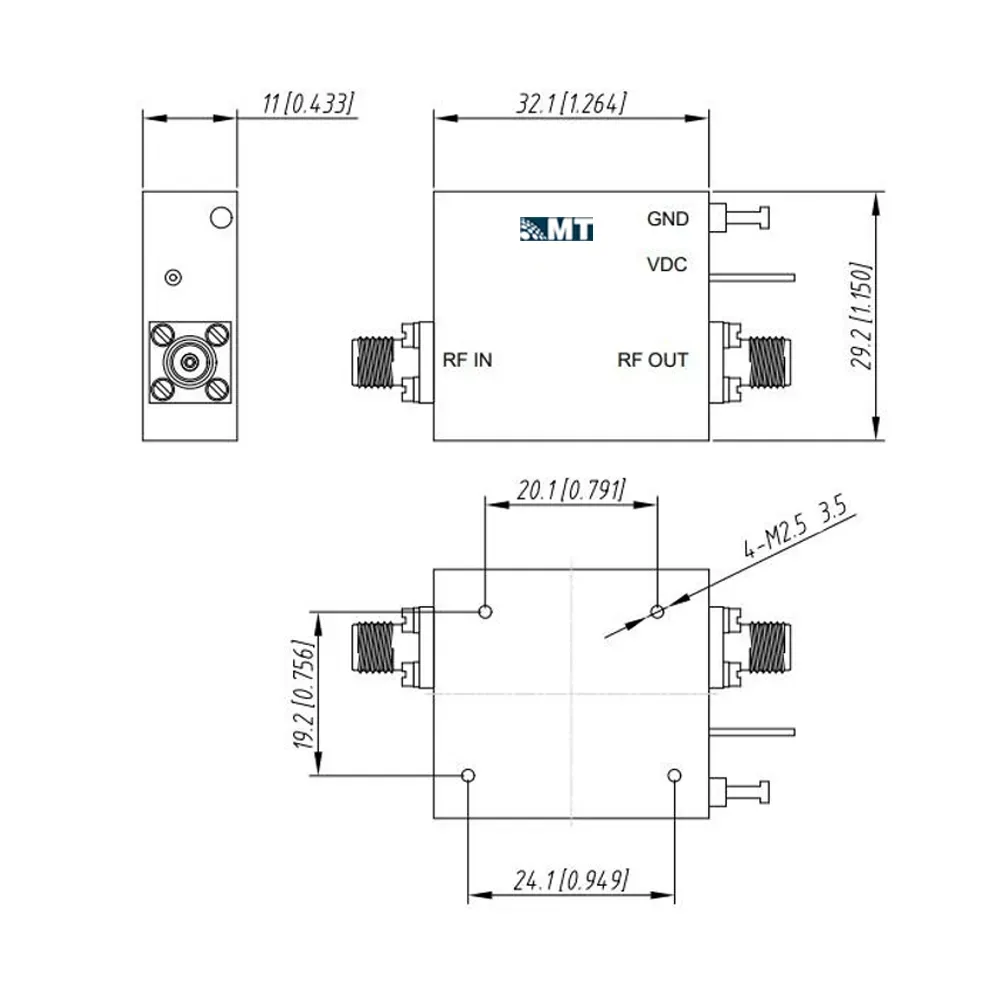

| Size | 32.1*29.2*11 | mm | ||
| Weight | / | g | ||
| Environmental Conditions: | ||||
| Parameter | Min | Typ | Max | Units |
| Operating Temperature | -45 | +85 | ℃ | |
| Non-operating Temperature | -55 | +125 | ℃ | |
| Relative humidity | 95 | % | ||
| Altitude | 50,000 | feet | ||
| Shock / Vibration(MIL-STD-810F) | 25g rms (15 degree 2KHz) endurance, 1 hour per axis | |||
| Shock(non operating) | 20G for 11msc half sin wave,3 axis both directions | |||
