Product code: MT-24G44G-40-50-2

Low Noise Amplifier 24-44GHz, NF:5.0dB, Gain:40dB,P1dB:21dBm

Model: MT-24G44G-40-50-2
Ultra Wide Band: 24-44GHz
Gain: 40dB Typ
Noise Figure: 5.0dB Typ
Good Power and Gain Flatness
50 Ohm Matched Input / Output
WhatsApp Chat
Skype
Product Part Number
MT-24G44G-40-50-2
Electrical & Mechanical Specification
Electrical :
ParameterMinTypMaxUnits
Frequency range24-44GHz
Gain3840dB
Gain Flatness±3.0±4.0dB
Noise Figure56dB
Output P1dB2021dBm
Output Psat22dBm
Spurious-60dBc
Output IP330dBm
Input VSWR1.82.5:1
Output VSWR1.82.5:1
DC Voltage12V DC
DC Supply Current750mA
Impedance50Ohms

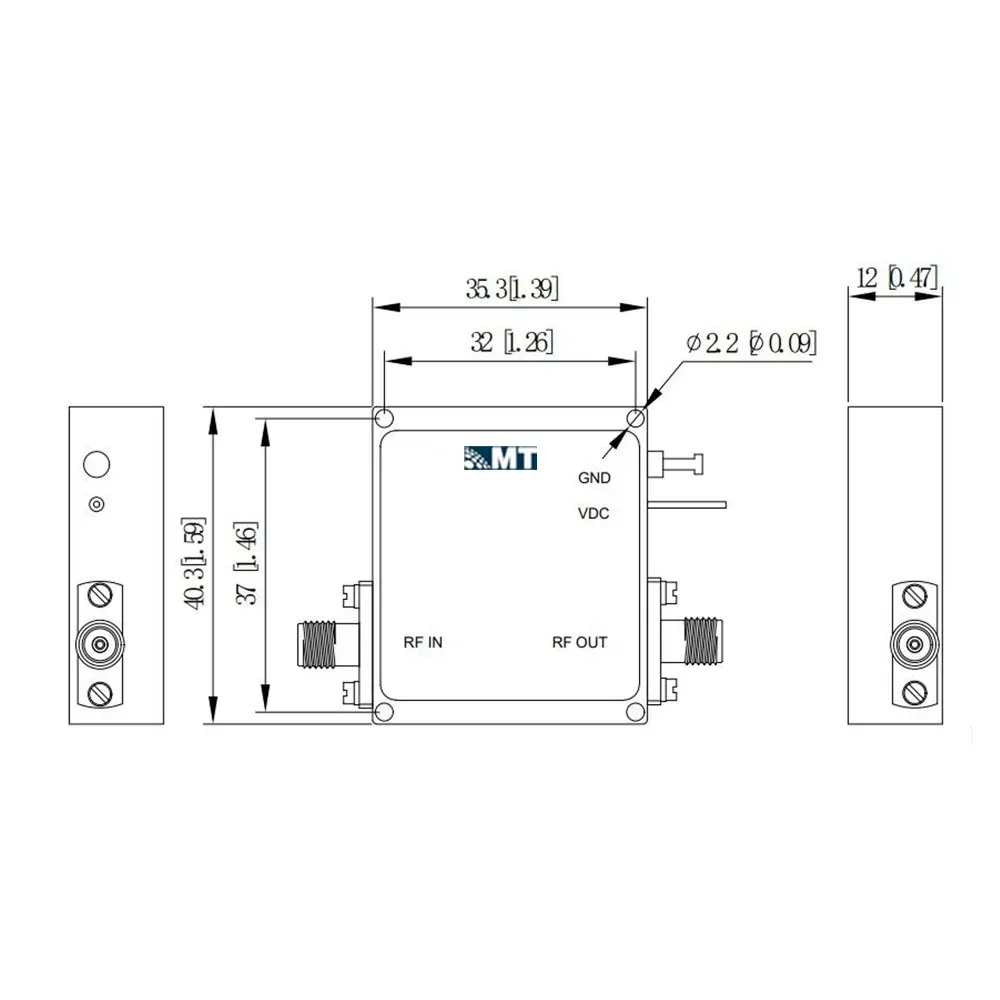

Mechanical :
ParameterValueUnits
Input /Output Connector2.4mm Female/2.4mm Female
DC BiasSolder Pin
Size35*40*12mm
Weight50g
Environmental Conditions:
ParameterMinTypMaxUnits
Operating Temperature-45+85℃
Non-operating Temperature-55+125℃
Relative humidity95%
Altitude50,000feet
Shock / Vibration(MIL-STD-810F)25g rms (15 degree 2KHz) endurance, 1 hour per axis
Shock(non operating)20G for 11msc half sin wave,3 axis both directions
