Product code: MT-26.5G40G-30-30
Low Noise Amplifier 26.5-40GHz, NF:2.5dB, Gain:30dB,P1dB:0dBm
| Model: MT-26.5G40G-30-30 |
| Ultra Wide Band: 26.5-40GHz |
| Gain: 30dB Min |
| Noise Figure: 2.5dB Typ |
| Good Power and Gain Flatness |
| 50 Ohm Matched Input / Output |
Product Part Number
MT-26.5G40G-30-30
Electrical & Mechanical Specification
| Electrical : | ||||
|---|---|---|---|---|
| Parameter | Min | Typ | Max | Units |
| Frequency range | 26.5-40 | GHz | ||
| Gain | 30 | dB | ||
| Gain Flatness | ±1.5 | ±2 | dB | |
| Noise Figure | 2.5 | 3 | dB | |
| Output P1dB | 0 | dBm | ||
| Output IP3 | 10 | dBm | ||
| Input VSWR | 2 | :1 | ||
| Output VSWR | 2 | :1 | ||
| DC Voltage | 12 | V DC | ||
| DC Supply Current | 60 | mA | ||
| Impedance | 50 | Ohms | ||

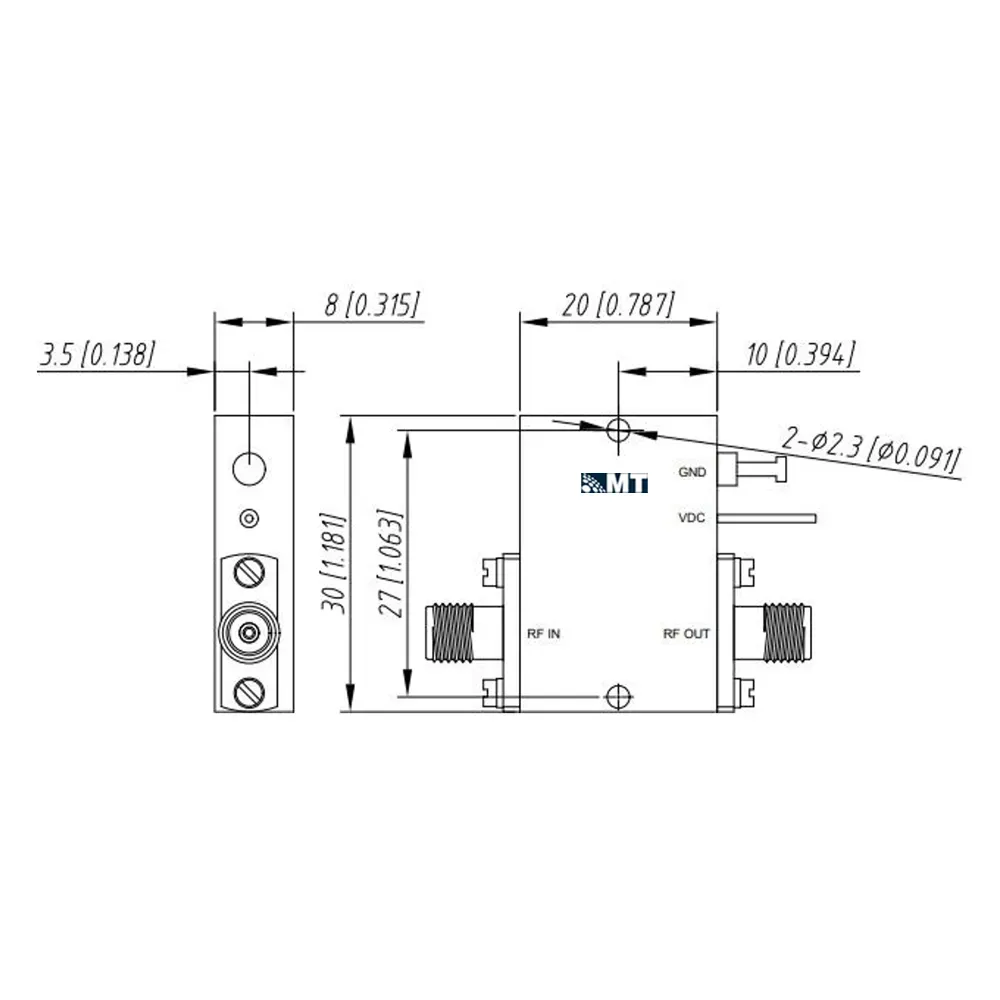

| Mechanical : | ||||
| Parameter | Value | Units | ||
| Input /Output Connector | 2.92mm Female/2.92mm Female | |||
| DC Bias | Solder Pin | |||
| Size | 20*30*8 | mm | ||
| Weight | 50 | g | ||
| Environmental Conditions: | ||||
| Parameter | Min | Typ | Max | Units |
| Operating Temperature | -45 | +85 | ℃ | |
| Non-operating Temperature | -55 | +125 | ℃ | |
| Relative humidity | 95 | % | ||
| Altitude | 50,000 | feet | ||
| Shock / Vibration(MIL-STD-810F) | 25g rms (15 degree 2KHz) endurance, 1 hour per axis | |||
| Shock(non operating) | 20G for 11msc half sin wave,3 axis both directions | |||
