Product code: MT-26.5G50G-18-60
Low Noise Amplifier 26.5-50GHz, NF:6.0dB, Gain:18dB,P1dB:14dBm
| Model: MT-26.5G50G-18-60 |
| Ultra Wide Band: 26.5-50GHz |
| Gain: 18dB Typ |
| Noise Figure: 6.0dB Typ |
| Good Power and Gain Flatness |
| 50 Ohm Matched Input / Output |
Product Part Number
MT-26.5G50G-18-60
Electrical & Mechanical Specification
| Electrical : | ||||
|---|---|---|---|---|
| Parameter | Min | Typ | Max | Units |
| Frequency range | 26.5-50 | GHz | ||
| Gain | 15 | 18 | dB | |
| Gain Flatness | ±2.0 | ±3.0 | dB | |
| Noise Figure | 6 | dB | ||
| Output P1dB | 14 | dBm | ||
| Spurious | -60 | dBc | ||
| IP3 | 20 | dBm | ||
| Input VSWR | 1.8 | 2 | :1 | |
| Output VSWR | 1.8 | 2 | :1 | |
| DC Voltage | 12 | V DC | ||
| DC Supply Current | 200 | mA | ||
| Impedance | 50 | Ohms | ||

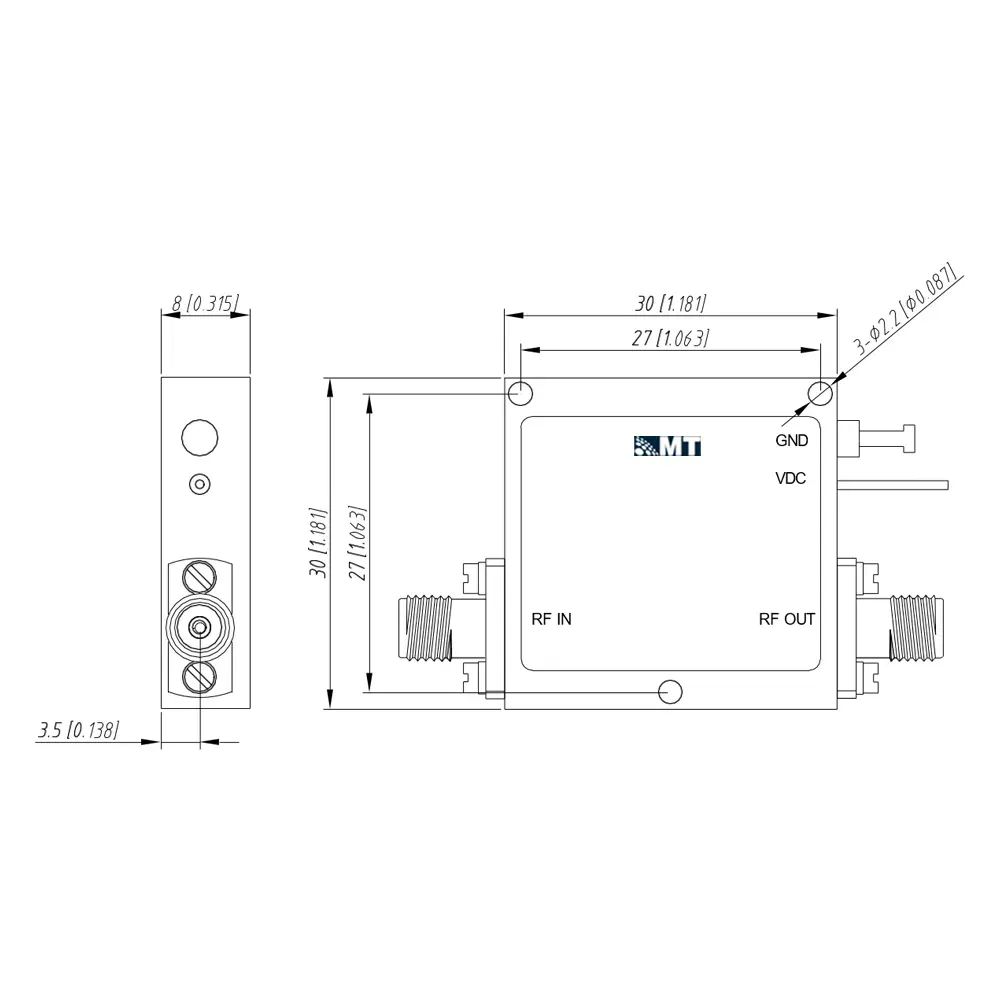

| Mechanical : | ||||
| Parameter | Value | Units | ||
| Input /Output Connector | 2.4 Female | |||
| Bias | Solder Pin | |||
| Size | 30*30*8 | mm | ||
| Weight | / | g | ||
| Environmental Conditions: | ||||
| Parameter | Min | Typ | Max | Units |
| Operating Temperature | -40 | 75 | ℃ | |
| Non-operating Temperature | -55 | 125 | ℃ | |
| Relative humidity | 95 | % | ||
| Altitude | 50,000 | feet | ||
| Shock / Vibration(MIL-STD-810F) | 25g rms (15 degree 2KHz) endurance, 1 hour per axis | |||
| Shock(non operating) | 20G for 11msc half sin wave,3 axis both directions |
