Product code: MT-33G35G-36-40-WR28-L
Low Noise Amplifier 33-35GHz, NF:2.0dB, Gain:36dB,P1dB:13dBm
| Model: MT-33G35G-36-40-WR28-L |
| Ultra Wide Band: 33-35GHz |
| Gain: 36dB Typ |
| Noise Figure: 2.0dB Typ |
| Good Power and Gain Flatness |
| 50 Ohm Matched Input / Output |
Product Part Number
MT-33G35G-36-40-WR28-L
Electrical & Mechanical Specification
| Electrical : | ||||
|---|---|---|---|---|
| Parameter | Min | Typ | Max | Units |
| Frequency range | 33-35 | GHz | ||
| Gain | 36 | dB | ||
| Gain Flatness | ±0.5@Band=1GHz | dB | ||
| Noise Figure | 2 | dB | ||
| Output P1dB | 12 | 13 | dBm | |
| Output Psat | 14 | dBm | ||
| Input VSWR | 2 | :1 | ||
| Output VSWR | 2 | :1 | ||
| DC Voltage | 5 | 8 | V DC | |
| DC Supply Current | 85 | mA | ||
| Impedance | 50 | Ohms | ||

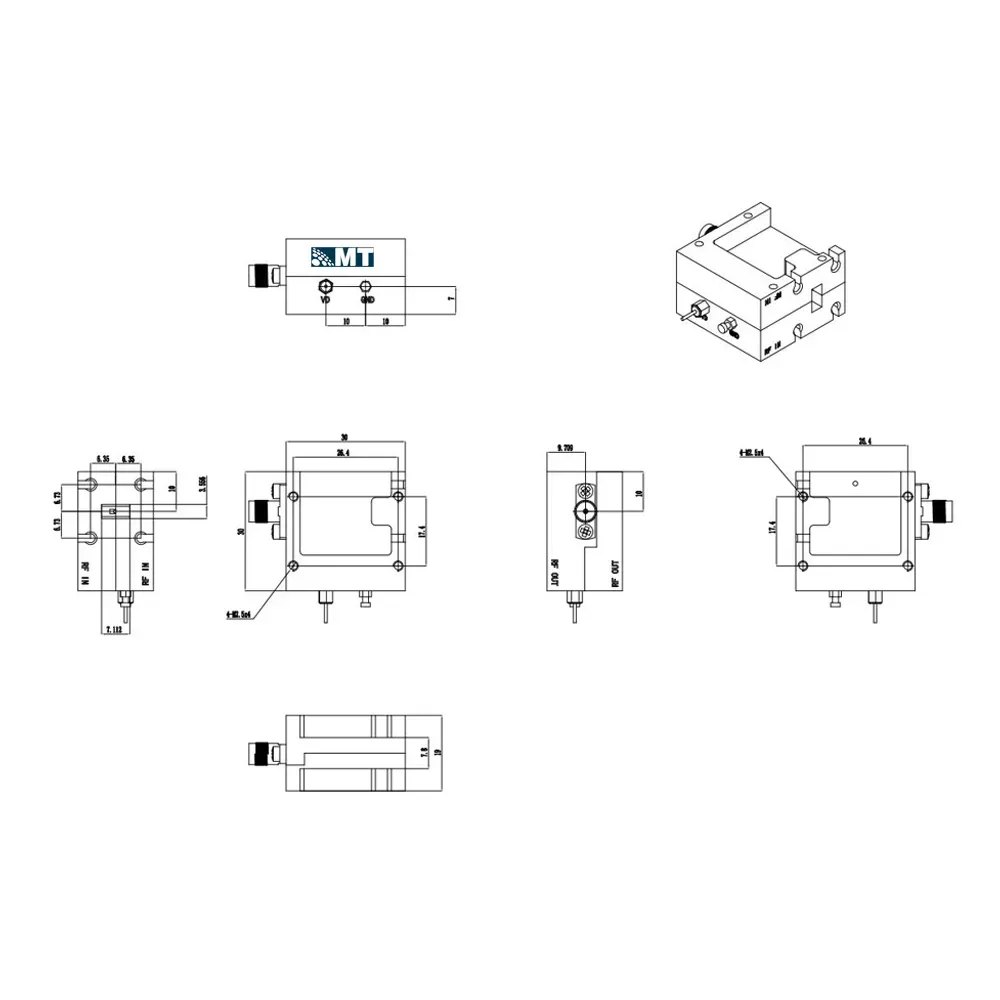

| Mechanical : | ||||
| Parameter | Value | Units | ||
| Input /Output Connector | WR-28 UG-599U/2.92mm Female | |||
| DC Bias | Solder Pin | |||
| Size | 30*30*19 | mm | ||
| Weight | / | g | ||
| Environmental Conditions: | ||||
| Parameter | Min | Typ | Max | Units |
| Operating Temperature | -45 | +85 | ℃ | |
| Non-operating Temperature | -55 | +125 | ℃ | |
| Relative humidity | 95 | % | ||
| Altitude | 50,000 | feet | ||
| Shock / Vibration(MIL-STD-810F) | 25g rms (15 degree 2KHz) endurance, 1 hour per axis | |||
| Shock(non operating) | 20G for 11msc half sin wave,3 axis both directions | |||
