Product code: MT-4G50G-25-60
Low Noise Amplifier 4-50GHz, NF:6.0dB, Gain:25dB,P1dB:12dBm
| Model: MT-4G50G-25-60 |
| Ultra Wide Band: 4-50GHz |
| Gain: 25dB Typ |
| Noise Figure: 12dB Typ |
| Good Power and Gain Flatness |
| 50 Ohm Matched Input / Output |
Product Part Number
MT-4G50G-25-60
Electrical & Mechanical Specification
| Electrical: | ||||
|---|---|---|---|---|
| Parameter | Min. | Typ. | Max. | Units |
| Frequency range | 4-50 | GHz | ||
| Gain | 23 | 25 | dB | |
| Gain Flatness | ±2.0 | dB | ||
| Noise Figure | 6 | 8.5 | dB | |
| Output P1dB | 10 | 12 | dBm | |
| Output IP3 | 30 | dBm | ||
| Input VSWR | 2 | 2.5 | :1 | |
| Output VSWR | 2 | 2.5 | :1 | |
| DC Voltage | 7 | 12 | V DC | |
| DC Supply Current | 300 | mA | ||
| Impedance | 50 | Ohms | ||
| Mechanical : | ||||
| Parameter | Value | Units | ||
| Input /Output Connector | 2.4mm Female/2.4mm Female | |||
| DC Bias | Solder Pin | |||

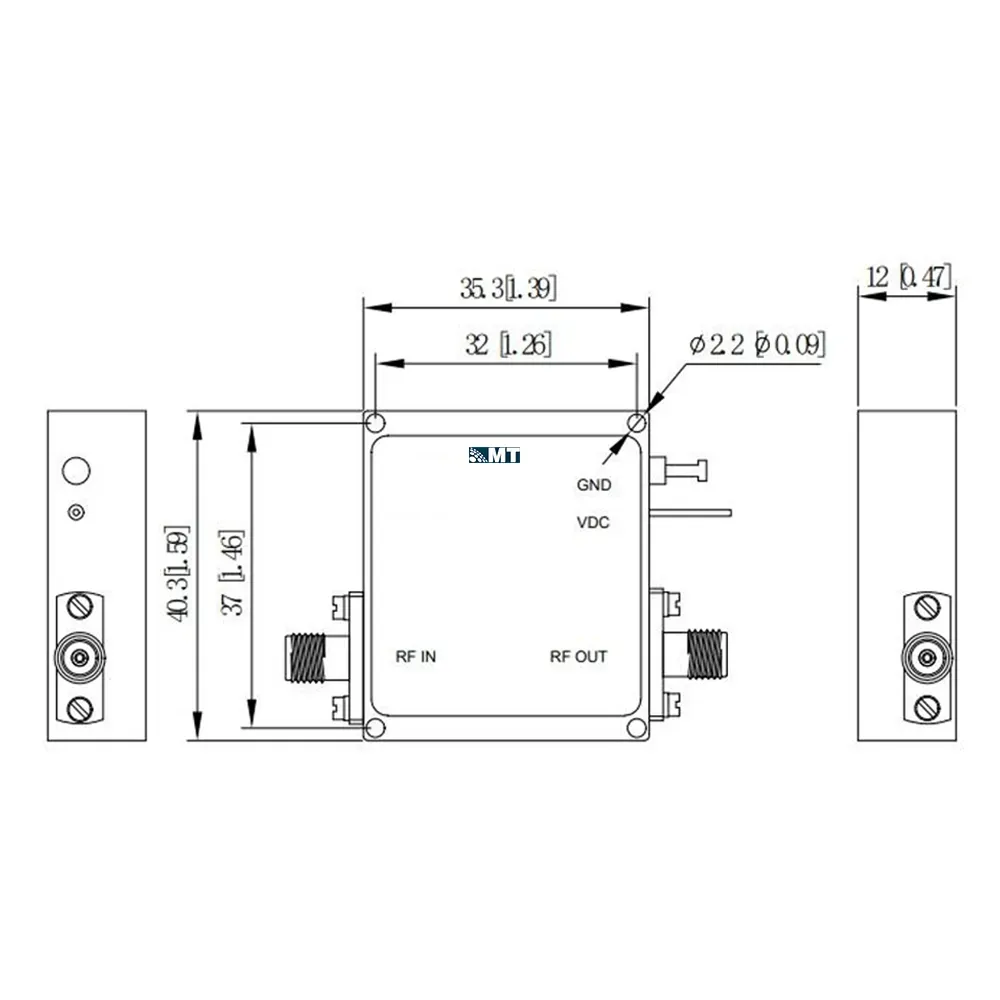

| Size | 35.3*40.3*12 | mm | ||
| Weight | 48 | g | ||
| Environmental Conditions: | ||||
| Parameter | Min. | Typ. | Max. | Units |
| Operating Temperature | -25 | +85 | ℃ | |
| Non-operating Temperature | -55 | +125 | ℃ | |
| Relative humidity | 95 | % | ||
| Altitude | 50,000 | feet | ||
| Shock / Vibration(MIL-STD-810F) | 25g rms (15 degree 2KHz) endurance, 1 hour per axis | |||
| Shock(non operating) | 20G for 11msc half sin wave,3 axis both directions | |||
