Product code: MT-4G8G-45-07
Low Noise Amplifier 4-8GHz, NF:0.9dB, Gain:45dB,P1dB:16dBm
| Model: MT-4G8G-45-07 |
| Ultra Wide Band: 4-8GHz |
| Gain: 45dB Typ |
| Noise Figure: 0.9dB Typ |
| Good Power and Gain Flatness |
| 50 Ohm Matched Input / Output |
Product Part Number
MT-4G8G-45-07
Electrical & Mechanical Specification
| Electrical: | ||||
|---|---|---|---|---|
| Parameter | Min. | Typ. | Max. | Units |
| Frequency range | 4-8 | GHz | ||

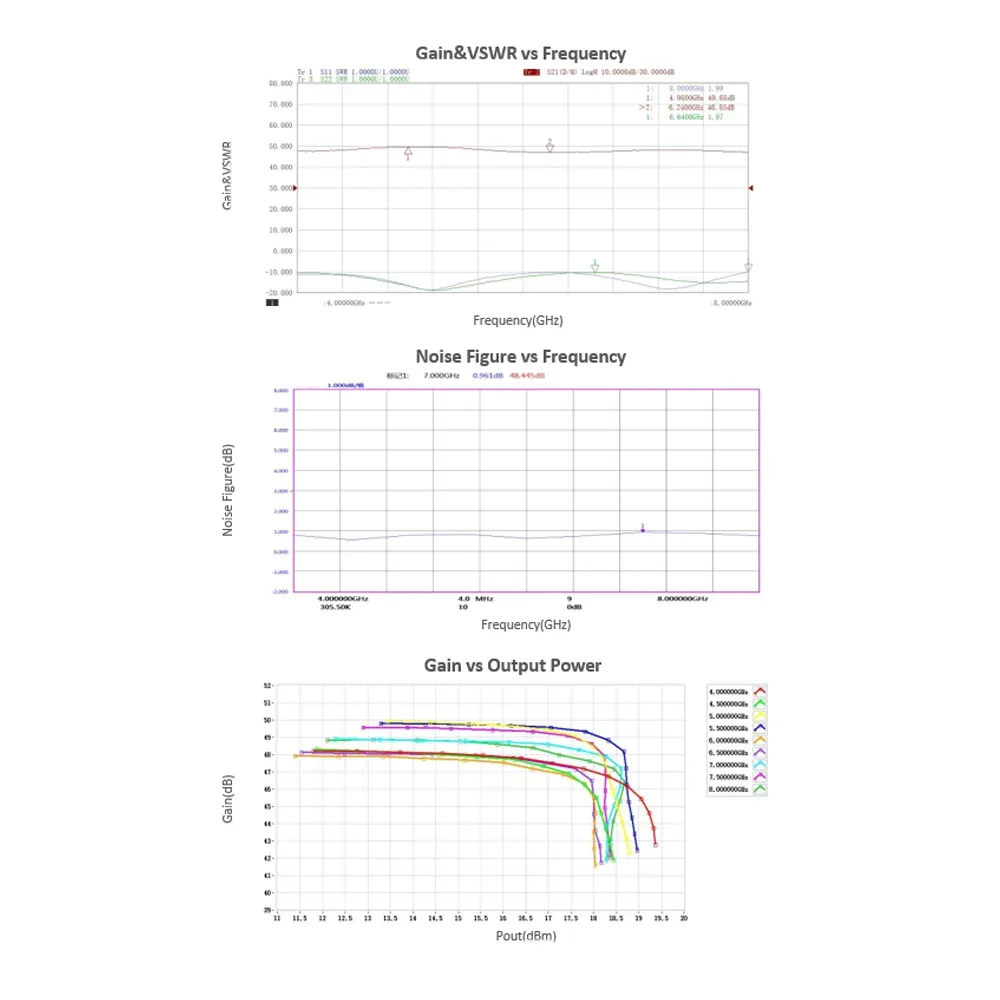

| Gain | 43 | 45 | dB | |
| Gain Flatness | ±1 | ±1.5 | dB | |
| Noise Figure | 0.9 | 1.2 | dB | |

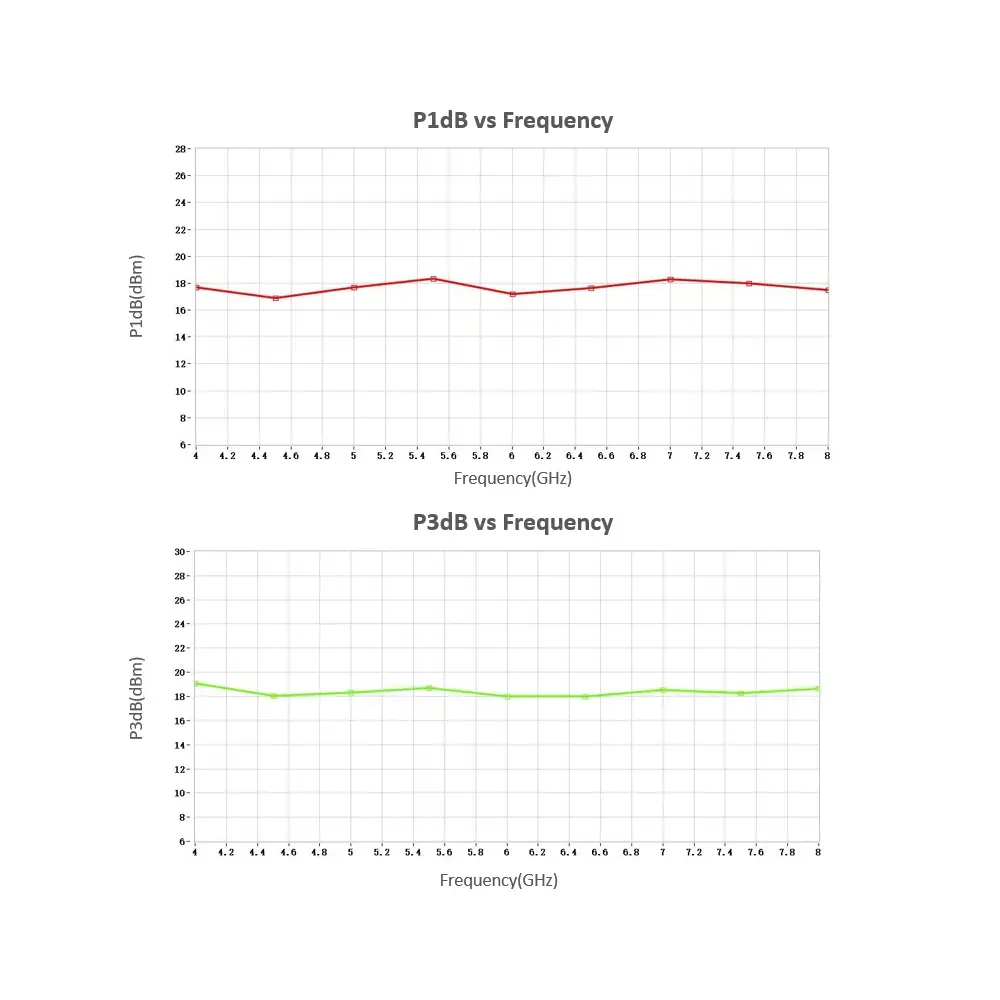

| Output P1dB | 14 | 16 | dBm | |
| Input VSWR | 1.5 | 2 | :1 | |
| Output VSWR | 1.5 | 2.2 | :1 | |
| DC Voltage | 8 | 12 | 15 | V DC |
| DC Supply Current | 70 | mA | ||
| Impedance | 50 | Ohms | ||

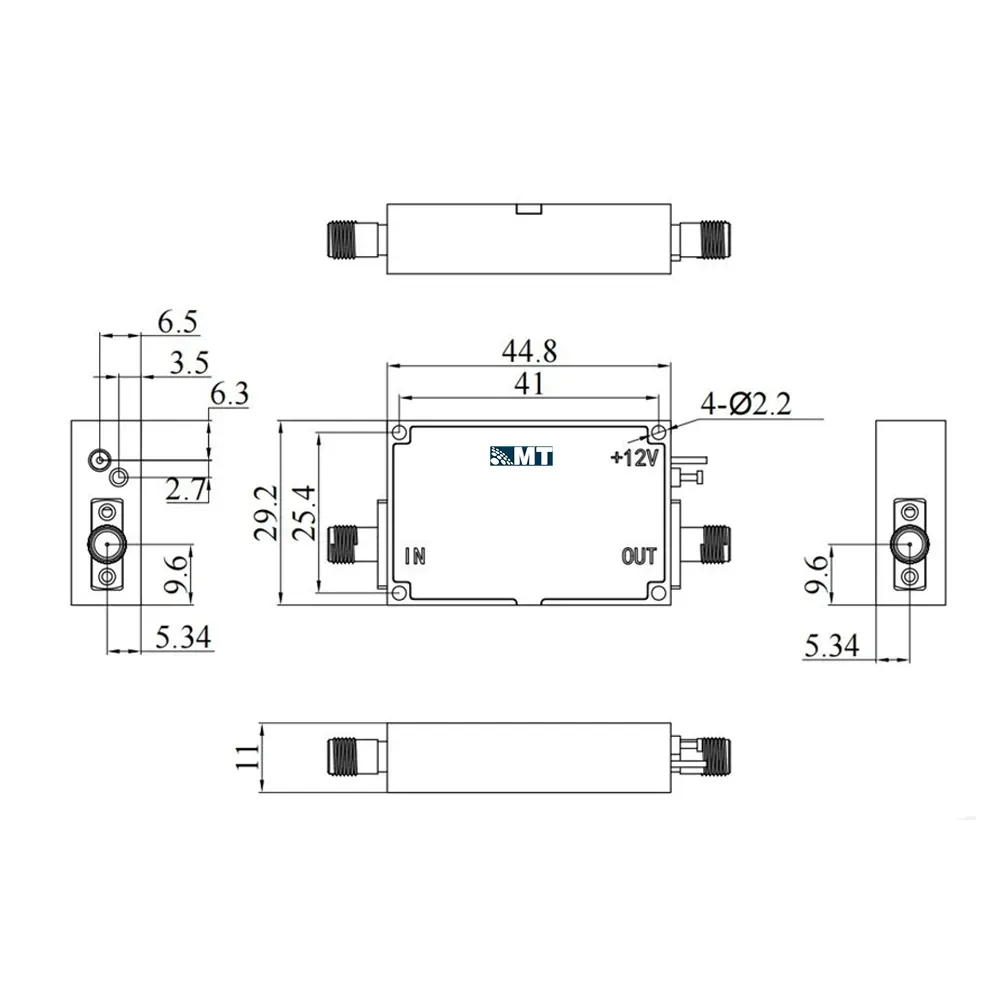

| Mechanical : | ||||
| Parameter | Value | Units | ||
| Input /Output Connector | SMA Female/SMA Female | |||
| DC Bias | Solder Pin | |||
| Size | 44.8*29.2*11 | mm | ||
| Weight | 55 | g | ||
| Environmental Conditions: | ||||
| Parameter | Min. | Typ. | Max. | Units |
| Operating Temperature | -45 | +85 | ℃ | |
| Non-operating Temperature | -55 | +125 | ℃ | |
| Relative humidity | 95 | % | ||
| Altitude | 50,000 | feet | ||
| Shock / Vibration(MIL-STD-810F) | 25g rms (15 degree 2KHz) endurance, 1 hour per axis | |||
| Shock(non operating) | 20G for 11msc half sin wave,3 axis both directions | |||
