Product code: MT-40G50G-50-35
Low Noise Amplifier 40-50GHz, NF:3.5dB, Gain:50dB,P1dB:20dBm
| Model: MT-40G50G-50-35 |
| Ultra Wide Band: 40-50GHz |
| Gain: 50dB Min |
| Noise Figure: 3.5dB Max |
| Good Power and Gain Flatness |
| 50 Ohm Matched Input / Output |
Product Part Number
MT-40G50G-50-35
Electrical & Mechanical Specification
| Electrical : | ||||
|---|---|---|---|---|
| Parameter | Min | Typ | Max | Units |
| Frequency range | 40-50 | GHz | ||
| Gain | 50 | 53 | dB | |
| Gain Flatness | ±3.0 | dB | ||
| Noise Figure | 3 | 3.5 | dB | |
| Output P1dB | 20 | dBm | ||
| Spurious | -60 | dBc | ||
| Input VSWR | 2.6 | :1 | ||
| DC Voltage | 8 | 12 | V DC | |
| DC Supply Current | 180 | 270 | mA | |
| Impedance | 50 | Ohms | ||
| Mechanical : | ||||
| Parameter | Value | Units | ||
| Input /Output Connector | 2.4mm Female/2.4mm Female | |||
| DC Bias | Solder Pin | |||

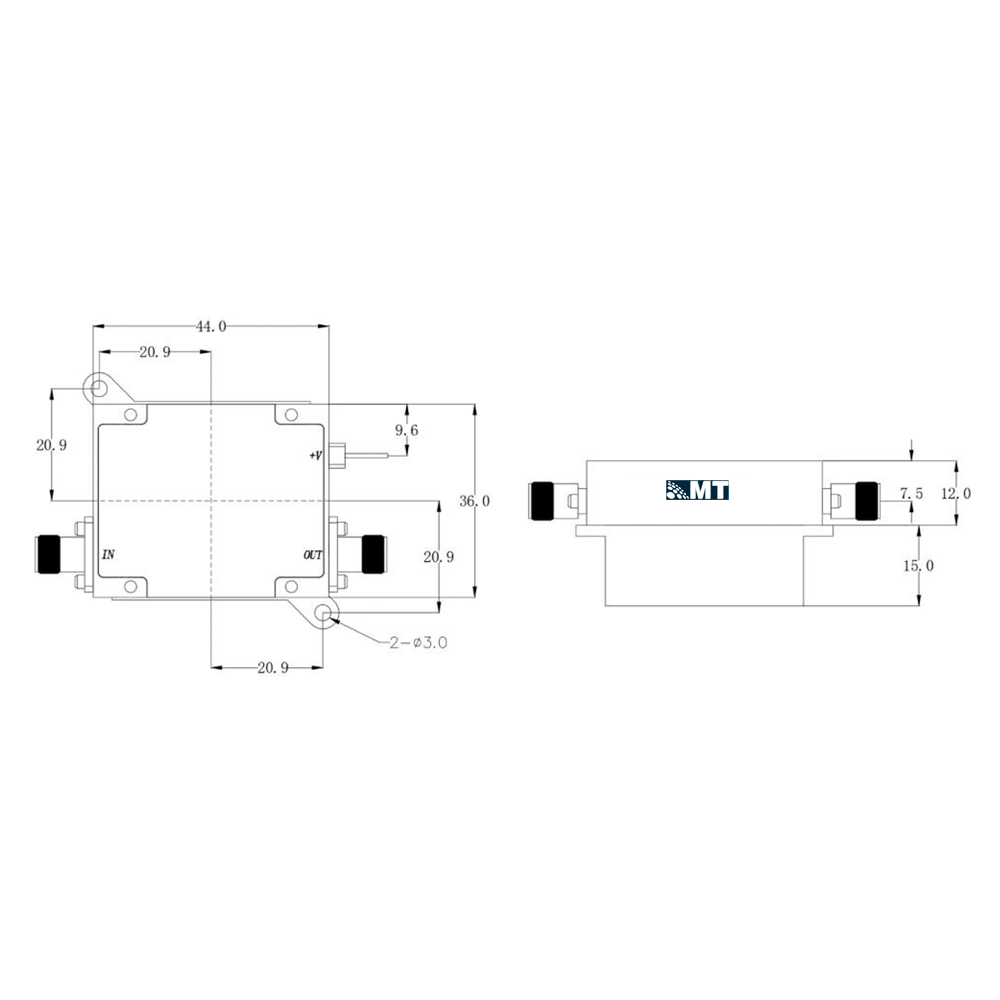

| Size | 44*36*12 | mm | ||
| Weight | / | g | ||
| Environmental Conditions: | ||||
| Parameter | Min | Typ | Max | Units |
| Operating Temperature | -45 | +85 | ℃ | |
| Non-operating Temperature | -55 | +125 | ℃ | |
| Relative humidity | 95 | % | ||
| Altitude | 50,000 | feet | ||
| Shock / Vibration(MIL-STD-810F) | 25g rms (15 degree 2KHz) endurance, 1 hour per axis | |||
| Shock(non operating) | 20G for 11msc half sin wave,3 axis both directions | |||
