Product code: MT-5M700M-24-15
Low Noise Amplifier 5-700MHz, NF:1.5dB, Gain:24dB,P1dB:23dBm
| Model: MT-5M700M-24-15 |
| Ultra Wide Band: 5-700MHz |

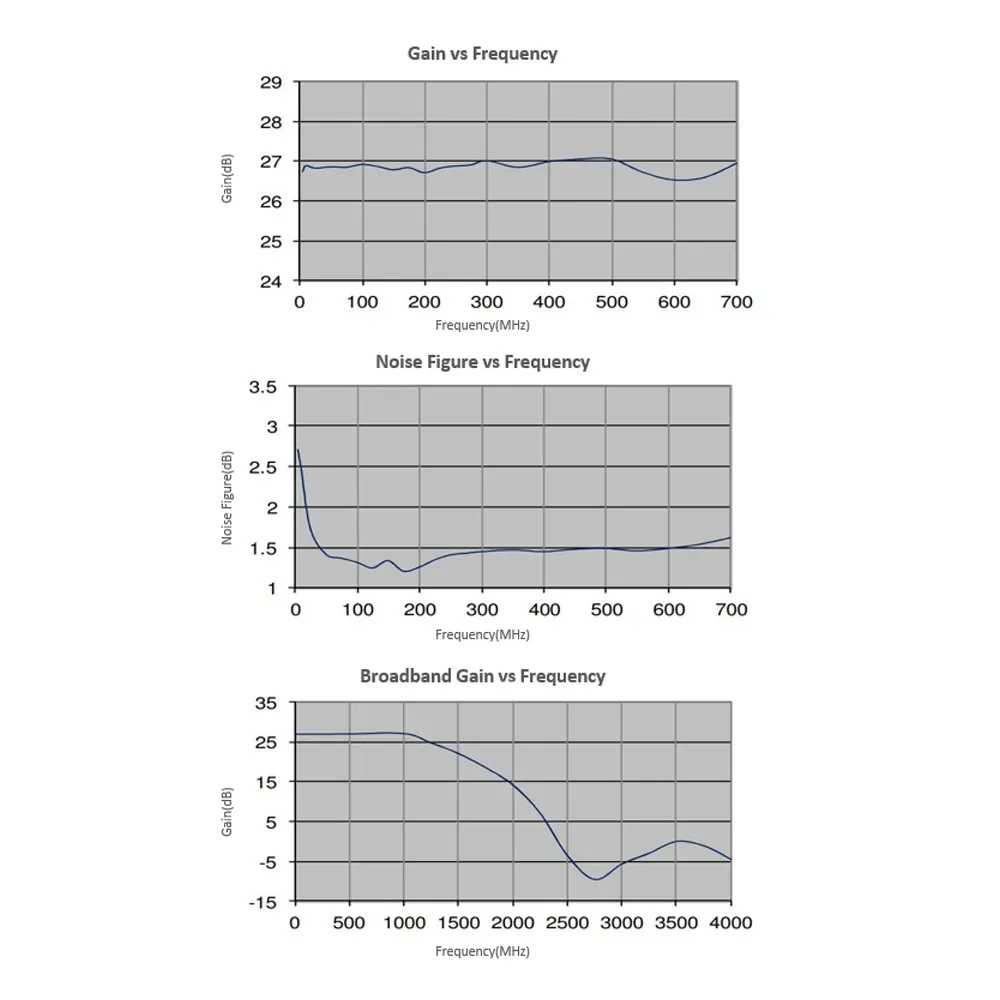

| Gain: 24dB Min |
| Noise Figure: 1.5dB Typ |
| Good Power and Gain Flatness |
| 50 Ohm Matched Input / Output |
