Product code: MT-50K53G-12-50

Low Noise Amplifier 50K-53GHz, NF:5.0dB, Gain:12dB

Model:MT-50K53G-12-50
Ultra Wide Band:50K-53GHz
Gain: 12dB Typ
Noise Figure: 5.0dB Typ
Unconditional stability
50 Ohm Matched Input / Output
WhatsApp Chat
Skype
Product Part Number
MT-50K53G-12-50
Electrical & Mechanical Specification
Electrical:
ParameterMin.Typ.Max.Units
Frequency range50K-53GHzGHz
Gain12dB
Gain Flatness±2dB
Noise Figure5dB
1dB15dBm
Output P1dB
Output IP320dBm
Input VSWR2：1
Output VSWR2：1
DC Voltage58V DC
DC power supply160mA
Impedance50Ohms

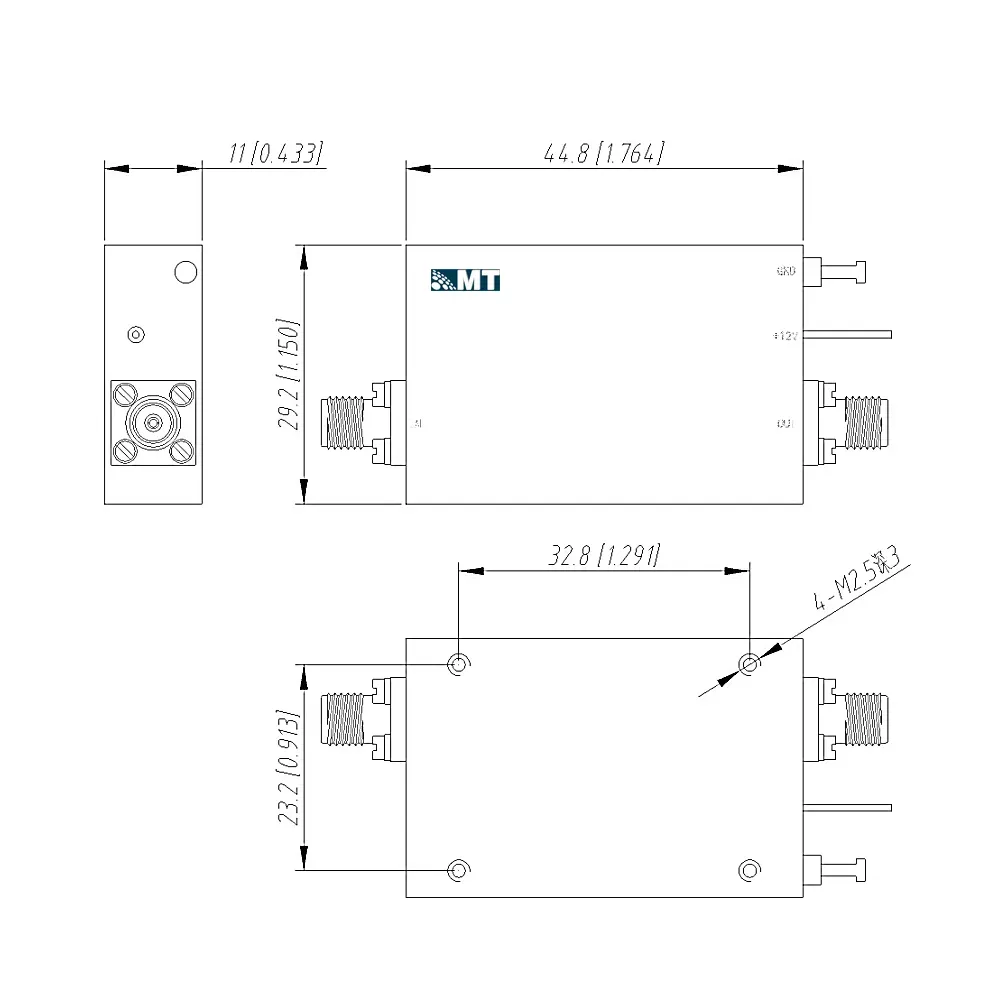

Mechanical :
Parameter Value
Input/Output Connector2.4mm-Female/2.4mm-Female
Power Supply PinSolder Pin
Size44.8*29.2*11 mm
Weight/
Environmental Conditions:
ParameterMin.Typ.Max.Units
Operating Temperature-40+85℃
Non-operating Temperature-55+125℃
Relative humidity95%
Altitude1000030000feet
Shock / Vibration(MIL-STD-810F)Airborne
Shock(non operating)20G for 11msc half sin wave,3 axis both directions
