Product code: MT-50K50G-38-50
Low Noise Amplifier, 50KHz-50GHz, NF:5.5dB, Gain:38dB,P1dB:14dBm
| Model: MT-50K50G-38-50 |
| Ultra Wide Band: 50KHz-50GHz |
| Gain: 38dB Typ |
| Noise Figure: 3.0dB Typ |
| Good Power and Gain Flatness |
| 50 Ohm Matched Input / Output |
Product Part Number
MT-50K50G-38-50
Electrical & Mechanical Specification
| Electrical: | |||||
|---|---|---|---|---|---|
| Parameter | Min | Typ | Max | Units | |
| Frequency range | 50KHz-50GHz | ||||
| Gain | 36 | 38 | dB | ||
| Gain Flatness | ±2.5 | dB | |||
| Noise Figure | 5.5 | dB | |||
| Output P1dB | @10MHz-40GHz | 14 | dBm | ||
| @40-50GHz | 9 | dBm | |||
| Input VSWR | 1.8 | :1 | |||
| Output VSWR | 1.8 | :1 | |||
| DC Voltage | 6 | 12 | V DC | ||
| DC Supply Current | 180 | mA | |||
| Impedance | 50 | Ohms | |||

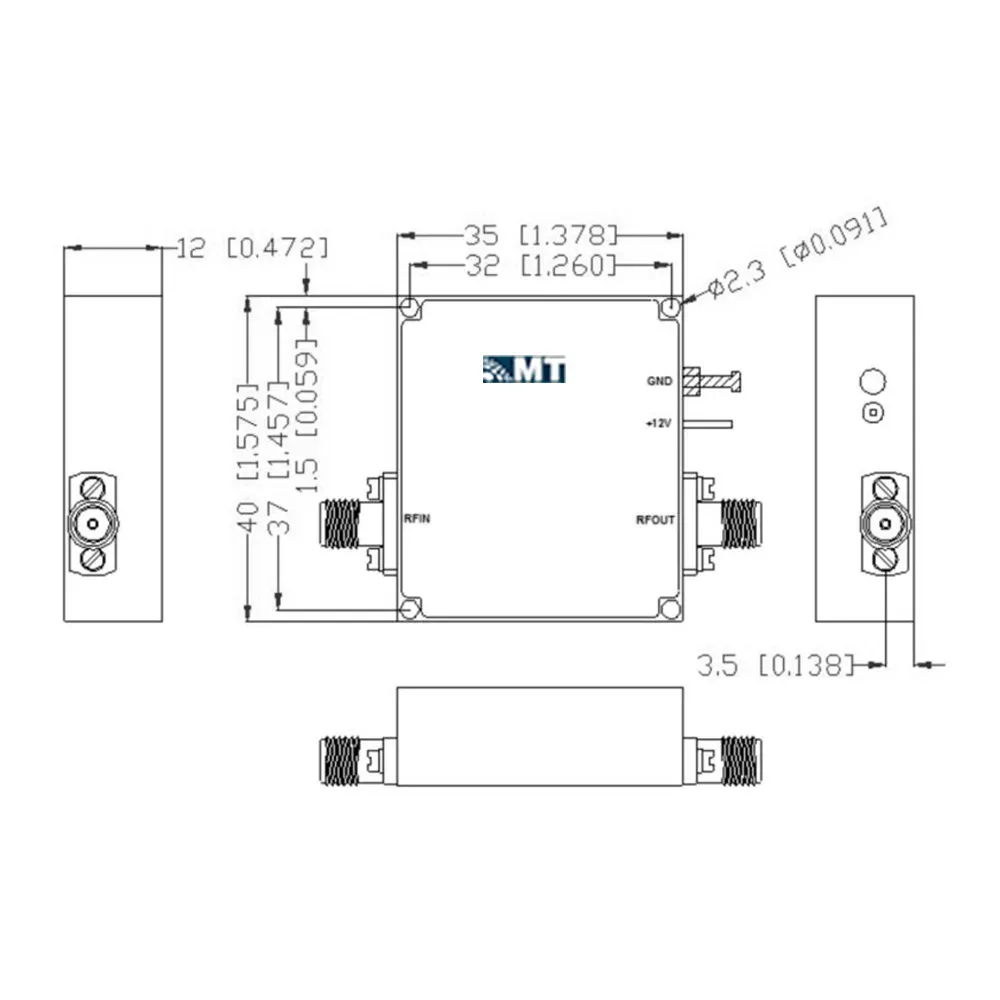

| Mechanical: | |||||
| Parameter | Value | Units | |||
| Input /Output Connector | 2.4mm Female/2.4mm Female | ||||
| DC Bias | Solder Pin | ||||
| Size | 35*45*12 | mm | |||
| Weight | / | g | |||
| Environmental Conditions : | |||||
| Parameter | Min | Typ | Max | Units | |
| Operating Temperature | -45 | +85 | ℃ | ||
| Non-operating Temperature | -55 | +125 | ℃ | ||
| Relative humidity | 95 | % | |||
| Altitude | 50,000 | feet | |||
| Shock / Vibration(MIL-STD-810F) | 25g rms (15 degree 2KHz) endurance, 1 hour per axis | ||||
| Shock(non operating) | 20G for 11msc half sin wave,3 axis both directions | ||||
