Low Noise Amplifier 6-18GHz, NF:2.5dB, Gain:38dB,P1dB:22dBm

Product code: MT-6G18G-38-25

Model: MT-6G18G-38-25

Ultra Wide Band: 6-18GHz

Gain: 38dB Typ

Noise Figure: 2.5dB Typ

Good Power and Gain Flatness

50 Ohm Matched Input / Output

Product Part Number

MT-6G18G-38-25

Electrical & Mechanical Specification

Electrical:
Parameter	Min.	Typ.	Max.	Units
Frequency range		6-18		GHz
Gain	35	38	41	dB
Gain Flatness		±2	±2.5	dB
Noise Figure		2	3	dB
Output P1dB	20	22		dBm
Output IP3	27	30		dBm
Spurious			-60	dBc
Revsrse Isolation	40	45		dB
Input VSWR		1.8	2.5	:1
Output VSWR		1.8	2.5	:1
DC Voltage	10	12	15	V DC
DC Supply Current	250	280	320	mA
Impedance	50			Ohms

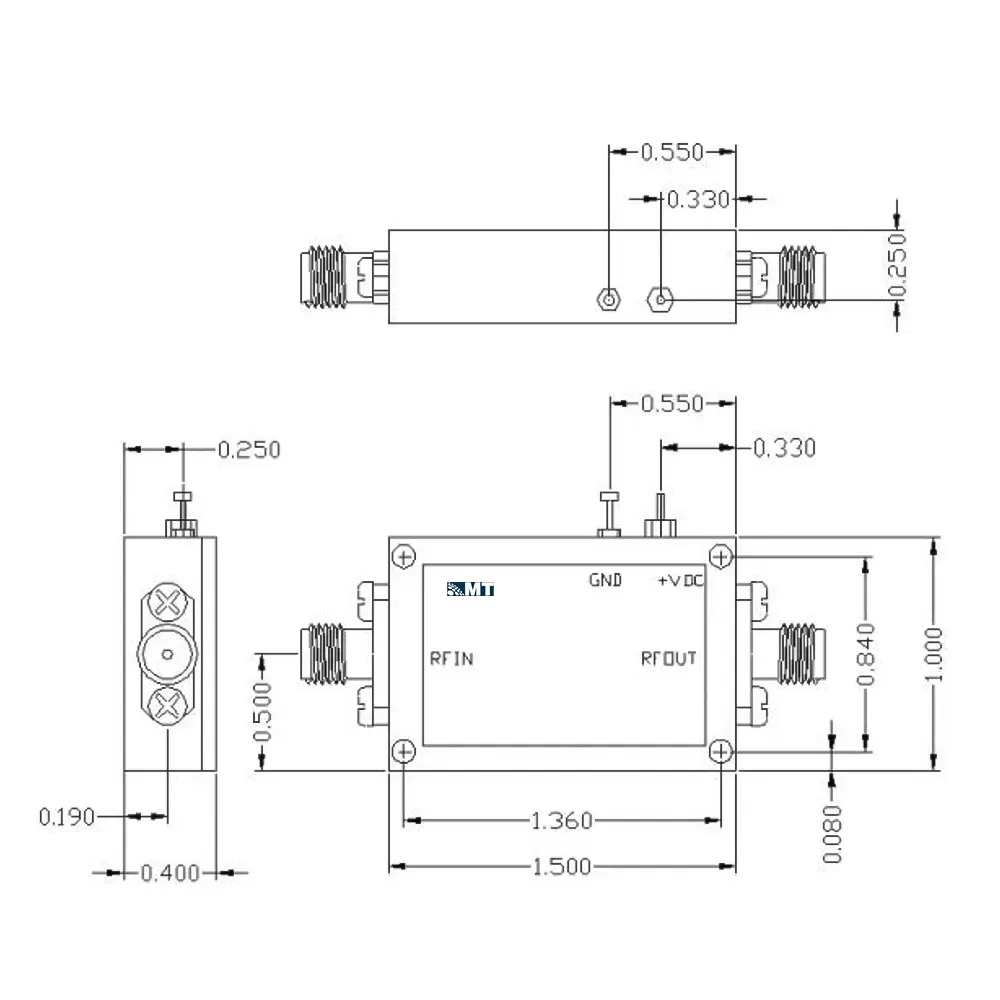

Mechanical :
Parameter	Value	Units
Input /Output Connector	SMA Female/SMA Female
DC Bias	Solder Pin
Size	1.510.4	Inch
Weight	/	g
Environmental Conditions:
Parameter	Min.	Typ.	Max.	Units
Operating Temperature	-40		+75	℃
Non-operating Temperature	-55		+125	℃
Relative humidity		95		%
Altitude	50,000			feet
Shock / Vibration(MIL-STD-810F)	25g rms (15 degree 2KHz) endurance, 1 hour per axis
Shock(non operating)	20G for 11msc half sin wave,3 axis both directions
