Product code: MT-6G18G-41-40
Low Noise Amplifier 6-18GHz, NF:4.0dB, Gain:41dB,P1dB:28dBm
| Model: MT-6G18G-41-40 |
| Ultra Wide Band: 6-18GHz |
| Gain: 41dB Min |
| Noise Figure: 4.0dB Max |
| Good Power and Gain Flatness |
| 50 Ohm Matched Input / Output |
Product Part Number
MT-6G18G-41-40
Electrical & Mechanical Specification
| Electrical: | ||||
|---|---|---|---|---|
| Parameter | Min. | Typ. | Max. | Units |
| Frequency range | 6-18 | GHz | ||
| Gain | 41 | 43 | dB | |
| Gain Flatness | ±1.5 | ±2.0 | dB | |
| Noise Figure | 3 | 4 | dB | |
| Output P1dB | 26 | 28 | dBm | |
| Output Psat | 29 | dBm | ||
| Input VSWR | 1.6 | :1 | ||
| Output VSWR | 1.8 | :1 | ||
| DC Voltage | 15 | V DC | ||
| DC Supply Current | 520 | mA | ||
| Impedance | 50 | Ohms | ||
| Mechanical : | ||||
| Parameter | Value | Units | ||
| Input /Output Connector | SMA Female/SMA Female | |||
| DC Bias | Solder Pin | |||

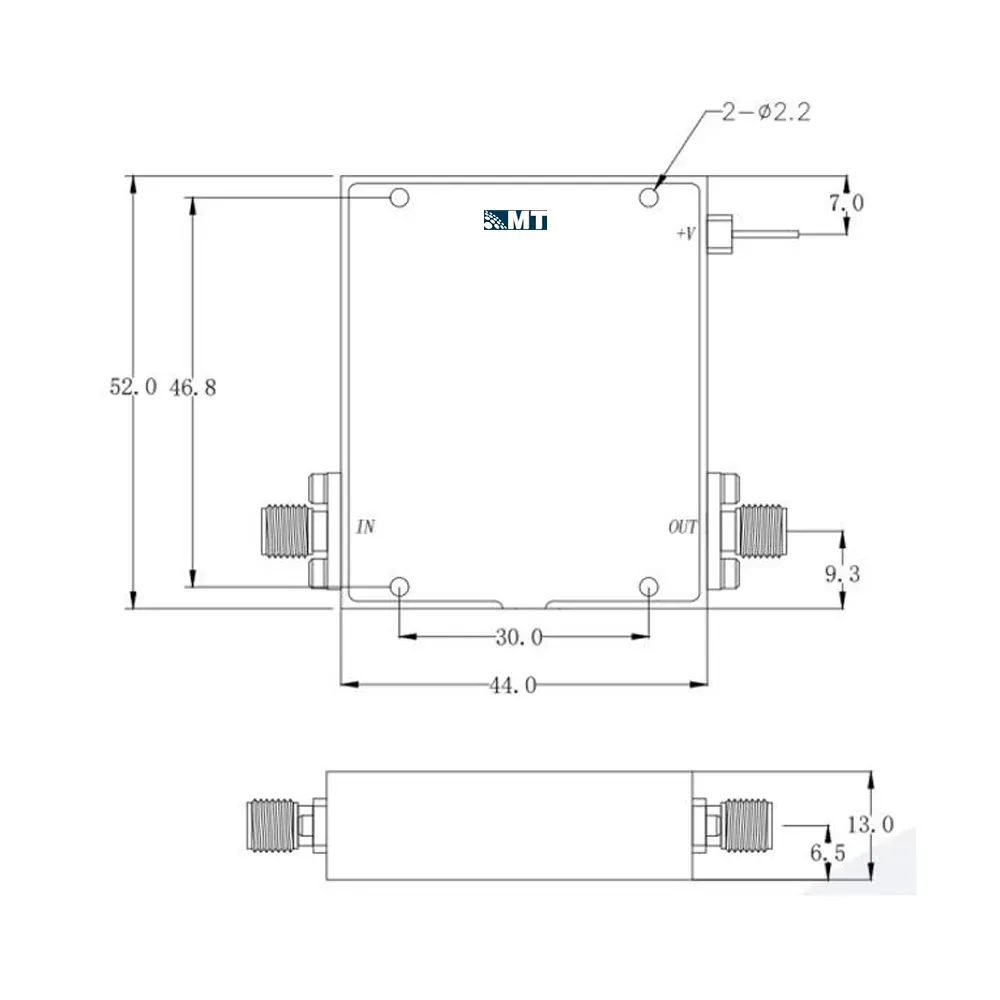

| Size | 44*52*13 | mm | ||
| Weight | / | g | ||
| Environmental Conditions: | ||||
| Parameter | Min. | Typ. | Max. | Units |
| Operating Temperature | -40 | +60 | ℃ | |
| Non-operating Temperature | -55 | +125 | ℃ | |
| Relative humidity | 95 | % | ||
| Altitude | 50,000 | feet | ||
| Shock / Vibration(MIL-STD-810F) | 25g rms (15 degree 2KHz) endurance, 1 hour per axis | |||
| Shock(non operating) | 20G for 11msc half sin wave,3 axis both directions | |||
