Product code: MT-6G26.5G-18-20
Low Noise Amplifier 6-26.5GHz, NF:2.0dB, Gain:18dB,P1dB:13dBm
| Model: MT-6G26.5G-18-20 |
| Ultra Wide Band: 6-26.5GHz |
| Gain: 18dB Typ |
| Noise Figure: 2.0dB Typ |
| Good Power and Gain Flatness |
| 50 Ohm Matched Input / Output |
Product Part Number
MT-6G26.5G-18-20
Electrical & Mechanical Specification
| Electrical: | ||||
|---|---|---|---|---|
| Parameter | Min. | Typ. | Max. | Units |
| Frequency range | 6-26.5 | GHz | ||
| Gain | 18 | 20 | dB | |
| Gain Flatness | ±2.0 | dB | ||
| Noise Figure | 2 | 3 | dB | |
| Output P1dB | 13 | dBm | ||
| Output Psat | 15 | dBm | ||
| Input VSWR | 2.2 | :1 | ||
| Output VSWR | 2.2 | :1 | ||
| DC Voltage | 6 | 8 | 14 | V DC |
| DC Supply Current | 50 | mA | ||
| Impedance | 50 | Ohms | ||
| Mechanical : | ||||
| Parameter | Value | Units | ||
| Input /Output Connector | SMA Female/SMA Female | |||
| DC Bias | Solder Pin | |||

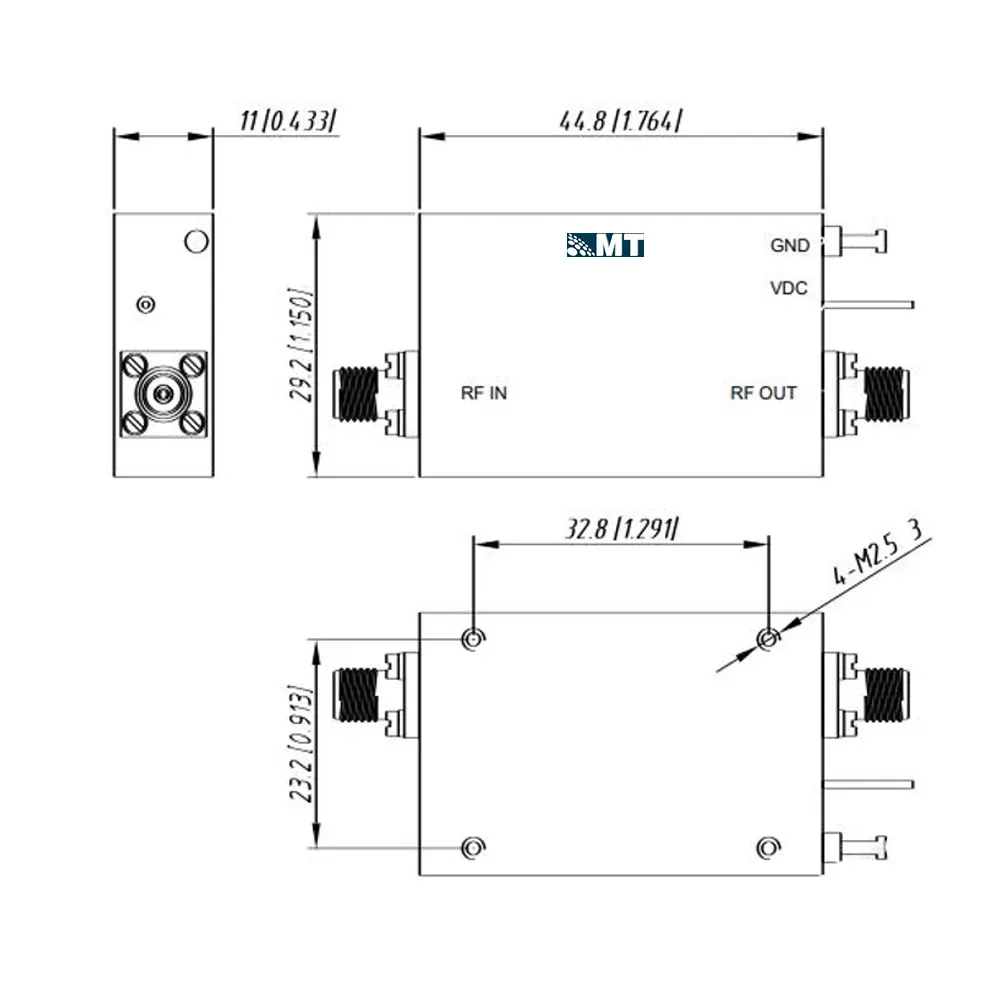

| Size | 44.8*29.2*11 | mm | ||
| Weight | 50 | g | ||
| Environmental Conditions: | ||||
| Parameter | Min. | Typ. | Max. | Units |
| Operating Temperature | -25 | +85 | ℃ | |
| Non-operating Temperature | -55 | +125 | ℃ | |
| Relative humidity | 95 | % | ||
| Altitude | 50,000 | feet | ||
| Shock / Vibration(MIL-STD-810F) | 25g rms (15 degree 2KHz) endurance, 1 hour per axis | |||
| Shock(non operating) | 20G for 11msc half sin wave,3 axis both directions | |||
