Product code: MT-6G34G-32-35
Low Noise Amplifier 6-34GHz, NF:3.5dB, Gain:32dB,P1dB:14dBm
| Model: MT-6G34G-32-35 |
| Ultra Wide Band: 6-34GHz |
| Gain: 32dB Typ |
| Noise Figure: 3.5dB Typ |
| Good Power and Gain Flatness |
| 50 Ohm Matched Input / Output |
Product Part Number
MT-6G34G-32-35
Electrical & Mechanical Specification
| Electrical: | ||||
|---|---|---|---|---|
| Parameter | Min. | Typ. | Max. | Units |
| Frequency range | 6-34 | GHz | ||

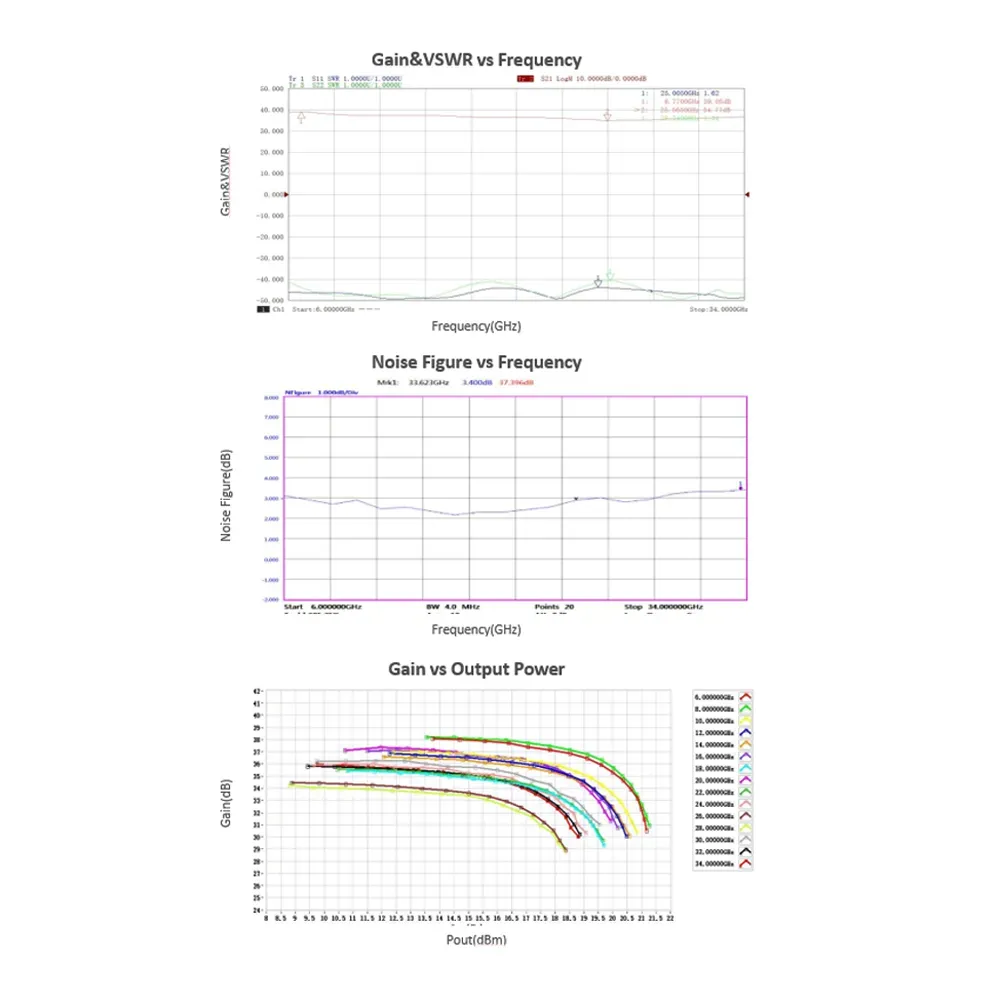

| Gain | 30 | 32 | dB | |
| Gain Flatness | ±2.5 | dB | ||
| Noise Figure | 3.5 | dB | ||

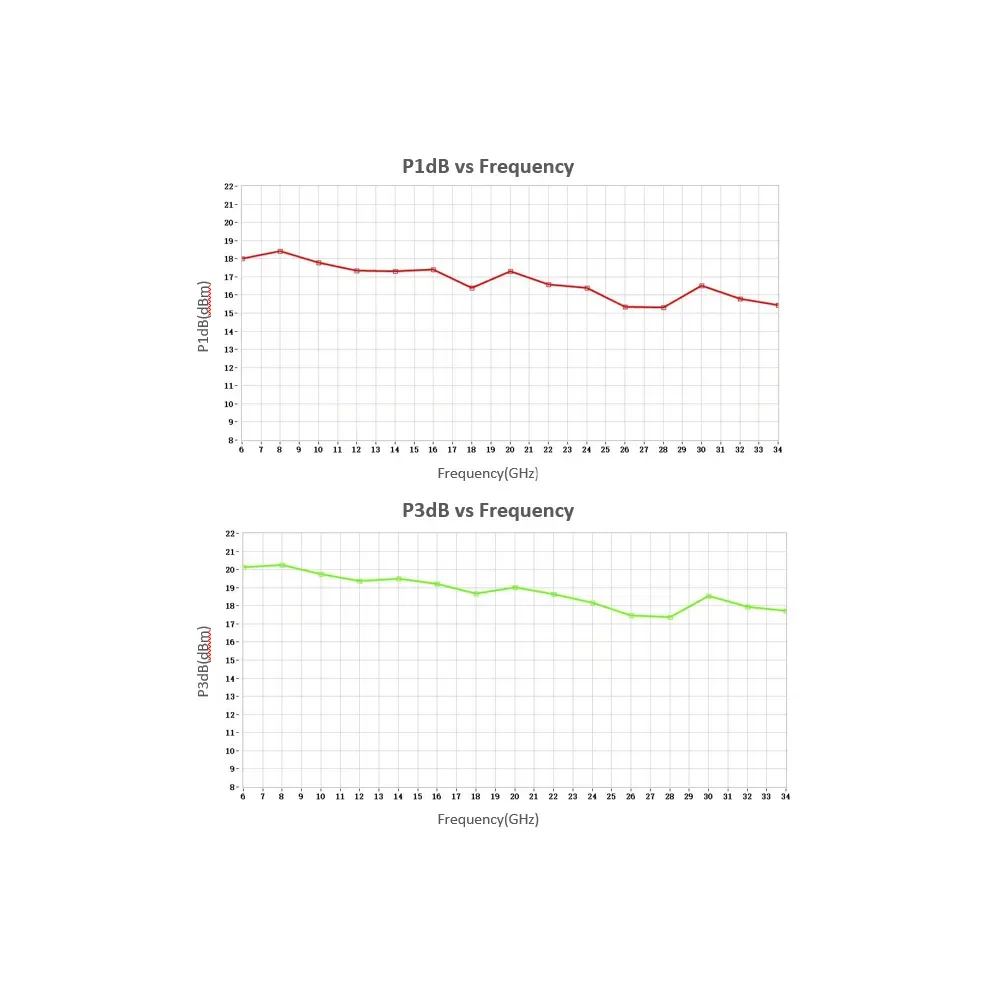

| Output P1dB | 13 | 14 | dBm | |
| Output Psat | 15 | dBm | ||
| Input VSWR | 1.6 | :1 | ||
| Output VSWR | 1.6 | :1 | ||
| DC Voltage | 8 | 12 | 13 | V DC |
| DC Supply Current | 280 | mA | ||
| Impedance | 50 | Ohms | ||

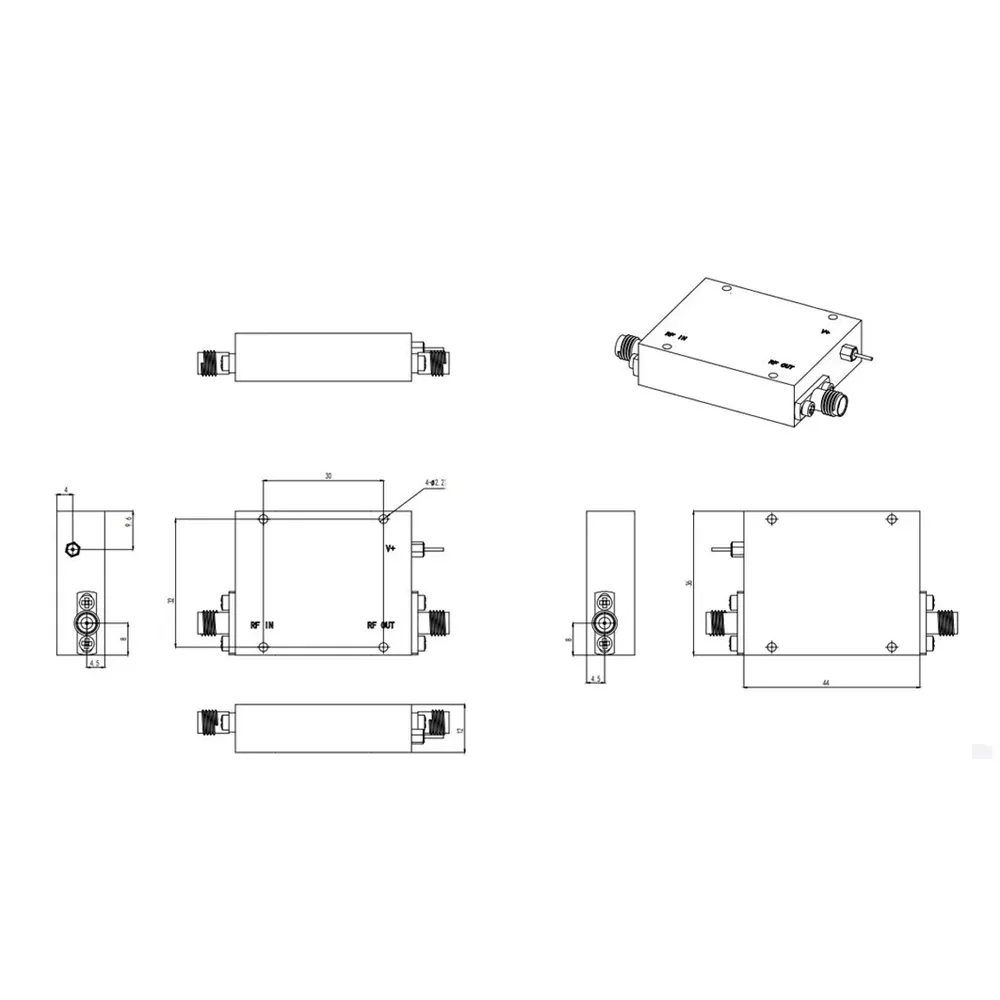

| Mechanical : | ||||
| Parameter | Value | Units | ||
| Input /Output Connector | 2.92mm Female/2.92mm Female | |||
| DC Bias | Solder Pin | |||
| Size | 44*36*12 | mm | ||
| Weight | / | g | ||
| Environmental Conditions: | ||||
| Parameter | Min. | Typ. | Max. | Units |
| Operating Temperature | -45 | +85 | ℃ | |
| Non-operating Temperature | -55 | +125 | ℃ | |
| Relative humidity | 95 | % | ||
| Altitude | 50,000 | feet | ||
| Shock / Vibration(MIL-STD-810F) | 25g rms (15 degree 2KHz) endurance, 1 hour per axis | |||
| Shock(non operating) | 20G for 11msc half sin wave,3 axis both directions | |||
