Product code: MT-8G12G-30-10
Low Noise Amplifier 8-12GHz, NF:1.0dB, Gain:30dB,P1dB:9dBm
| Model: MT-8G12G-30-10 |
| Ultra Wide Band: 18-12GHz |
| Gain: 30dB Max |
| Noise Figure: 1.0dB Max |
| Good Power and Gain Flatness |
| 50 Ohm Matched Input / Output |
Product Part Number
MT-8G12G-30-10
Electrical & Mechanical Specification
| Electrical: | ||||
|---|---|---|---|---|
| Parameter | Min. | Typ. | Max. | Units |
| Frequency range | 8-12 | GHz | ||
| Gain | 30 | dB | ||
| Gain Flatness | ±0.5 | dB | ||
| Noise Figure | 1 | dB | ||
| Output P1dB | 9 | dBm | ||
| Input VSWR | 2 | :1 | ||
| Output VSWR | 2 | :1 | ||
| DC Voltage | 12 | V DC | ||
| DC Supply Current | 50 | mA | ||
| Impedance | 50 | Ohms | ||

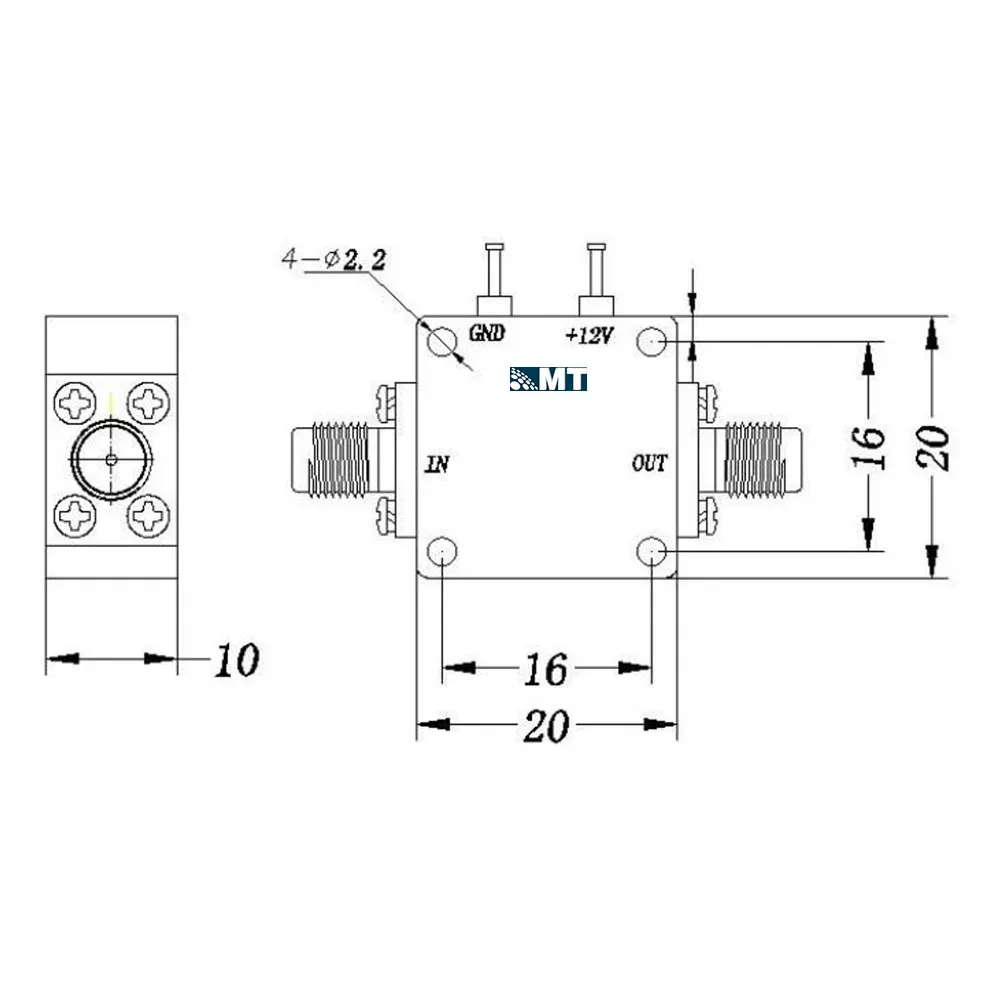

| Mechanical : | ||||
| Parameter | Value | Units | ||
| Input /Output Connector | SMA Female/SMA Female | |||
| DC Bias | Solder Pin | |||
| Size | 20*20*10 | mm | ||
| Weight | / | g | ||
| Environmental Conditions: | ||||
| Parameter | Min. | Typ. | Max. | Units |
| Operating Temperature | -45 | +85 | ℃ | |
| Non-operating Temperature | -55 | +125 | ℃ | |
| Relative humidity | 95 | % | ||
| Altitude | 50,000 | feet | ||
| Shock / Vibration(MIL-STD-810F) | 25g rms (15 degree 2KHz) endurance, 1 hour per axis | |||
| Shock(non operating) | 20G for 11msc half sin wave,3 axis both directions | |||
