Product code: MT-8G12G-32-15
Low Noise Amplifier 8-12GHz, NF:1.5dB, Gain:32dB,P1dB:15dBm
| Model: MT-8G12G-32-15 |
| Ultra Wide Band: 8-12GHz |
| Gain: 32dB Min |
| Noise Figure: 1.5dB Max |
| Good Power and Gain Flatness |
| 50 Ohm Matched Input / Output |
Product Part Number
MT-8G12G-32-15
Electrical & Mechanical Specification
| Electrical: | ||||
|---|---|---|---|---|
| Parameter | Min. | Typ. | Max. | Units |
| Frequency range | 8-12 | GHz | ||
| Gain | 32 | dB | ||
| Gain Flatness | ±1.5 | dB | ||
| Noise Figure | 1.5 | dB | ||
| Output P1dB | 15 | dBm | ||
| Input VSWR | 2 | :1 | ||
| Output VSWR | 2 | :1 | ||
| DC Voltage | 12 | 15 | V DC | |
| DC Supply Current | 100 | mA | ||
| Impedance | 50 | Ohms | ||

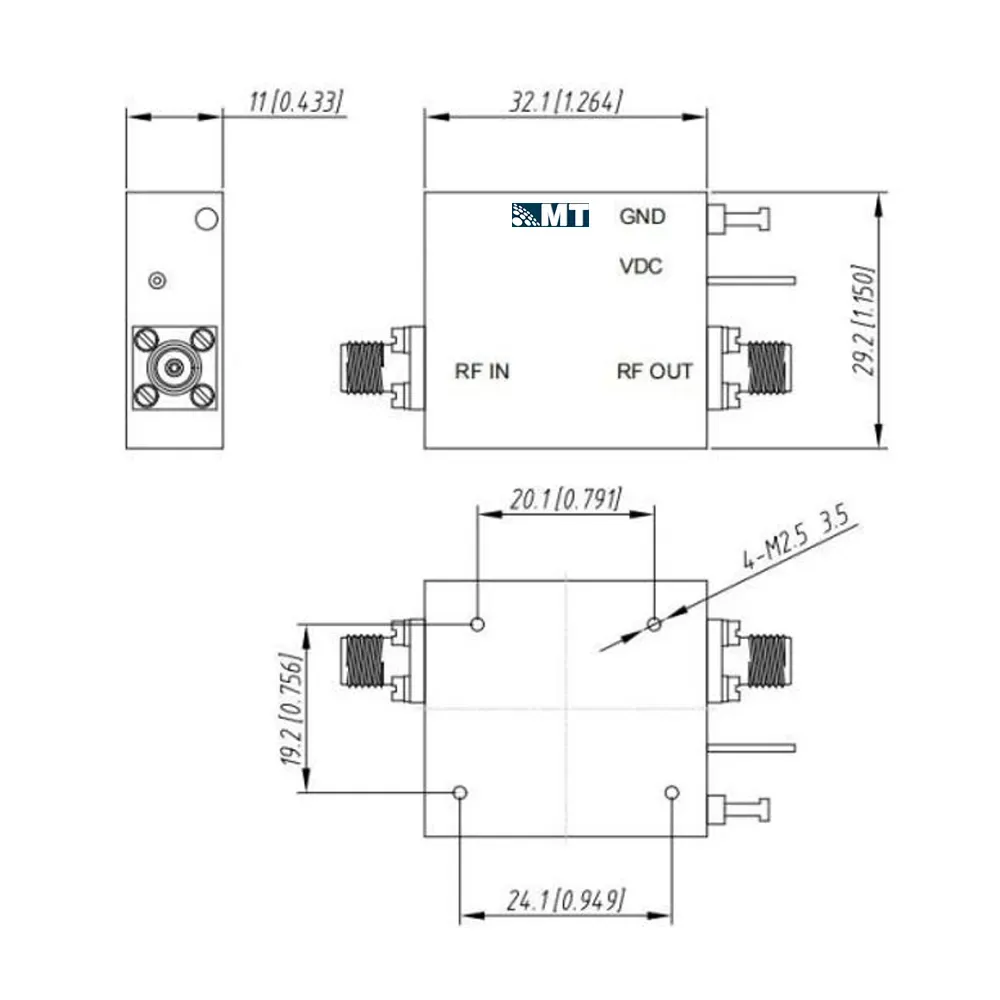

| Mechanical : | ||||
| Parameter | Value | Units | ||
| Input /Output Connector | SMA Female/SMA Female | |||
| DC Bias | Solder Pin | |||
| Size | 32.1*29.2*11 | mm | ||
| Weight | 300 | g | ||
| Environmental Conditions: | ||||
| Parameter | Min. | Typ. | Max. | Units |
| Operating Temperature | -45 | +85 | ℃ | |
| Non-operating Temperature | -55 | +125 | ℃ | |
| Relative humidity | 95 | % | ||
| Altitude | 50,000 | feet | ||
| Shock / Vibration(MIL-STD-810F) | 25g rms (15 degree 2KHz) endurance, 1 hour per axis | |||
| Shock(non operating) | 20G for 11msc half sin wave,3 axis both directions | |||
