Product code: MT-9G10G-21-20
Low Noise Amplifier 9-10GHz, NF:2.0dB, Gain:21dB,P1dB:18.5dBm
| Model: MT-9G10G-21-20 |
| Ultra Wide Band: 9-10GHz |
| Gain: 21dB Typ |
| Noise Figure: 2.0dB Typ |
| Good Power and Gain Flatness |
| 50 Ohm Matched Input / Output |
Product Part Number
MT-9G10G-21-20

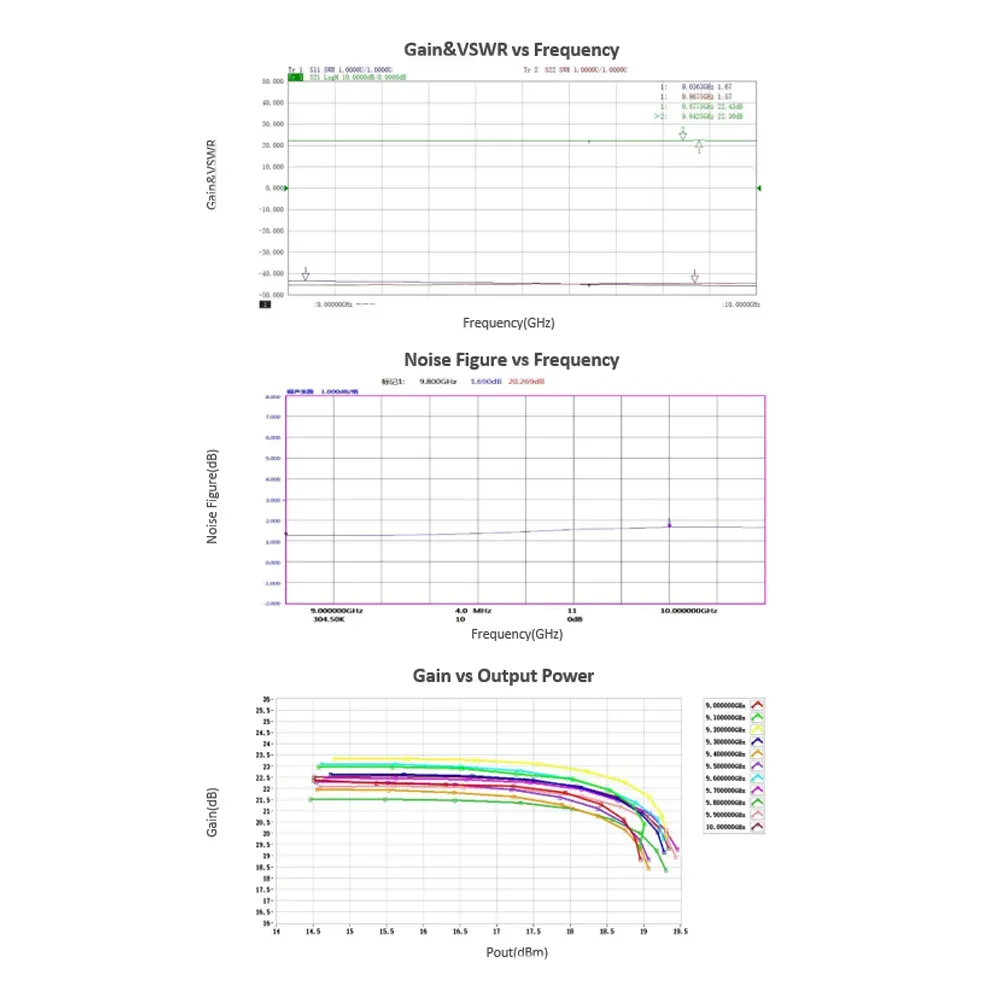

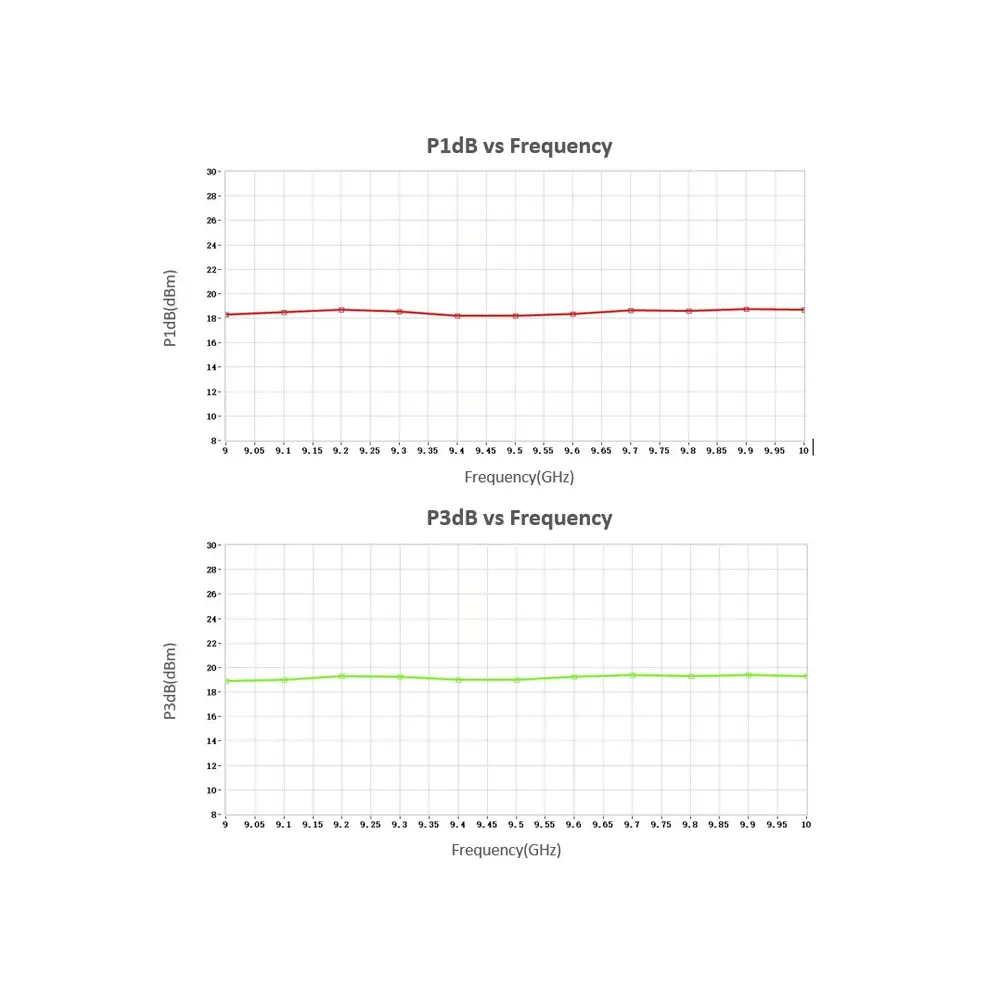

Electrical & Mechanical Specification
| Electrical : | ||||
|---|---|---|---|---|
| Parameter | Min | Typ | Max | Units |
| Frequency range | 9-10 | GHz | ||
| Gain | 21 | dB | ||
| Gain Flatness | ±0.4 | ±0.5 | dB | |
| Noise Figure | 2 | 2.4 | dB | |
| Output P1dB | 18 | 18.5 | dBm | |
| Output Psat | 19 | 19.5 | dBm | |
| Input VSWR | 1.5 | 2.2 | :1 | |
| Output VSWR | 1.5 | 2.2 | :1 | |
| DC Voltage | 8 | 12 | 15 | V DC |
| DC Supply Current | 85 | mA | ||
| Impedance | 50 | Ohms | ||

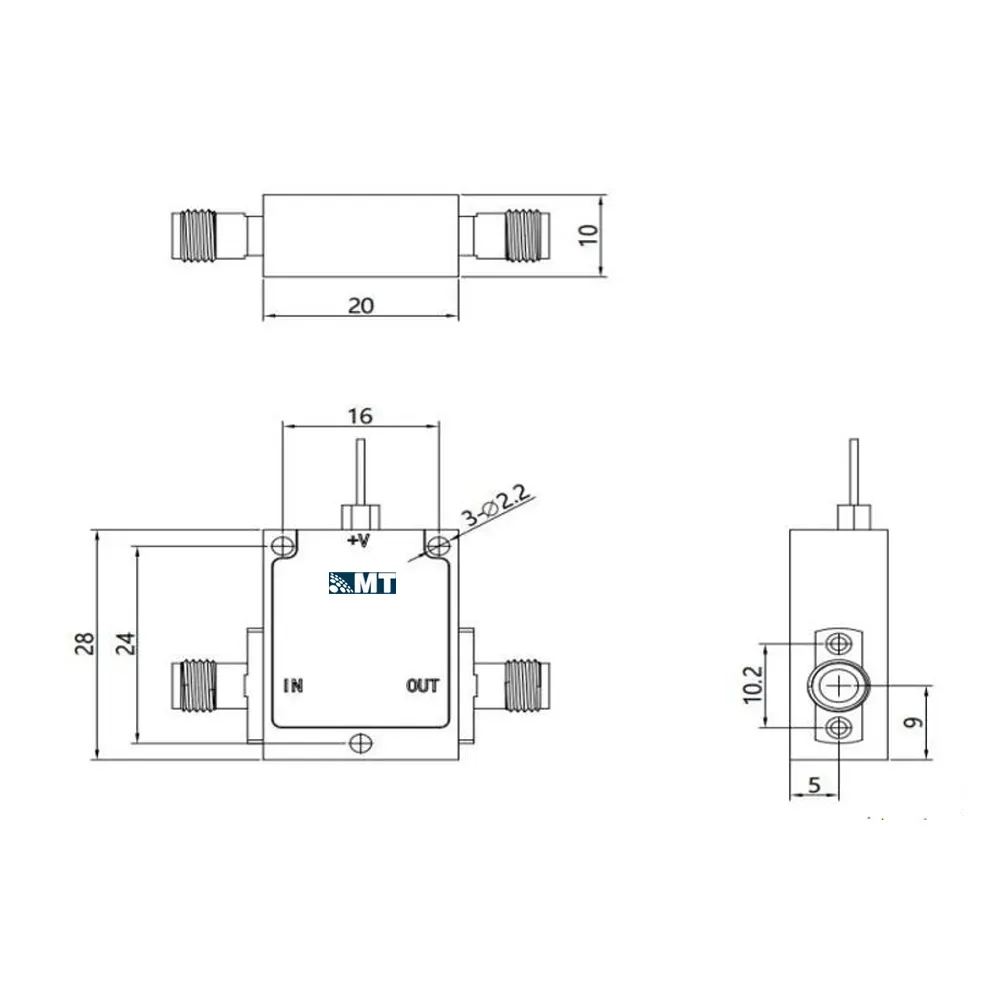

| Mechanical : | ||||
| Parameter | Value | Units | ||
| Input /Output Connector | SMA Female/SMA Female | |||
| DC Bias | Solder Pin | |||
| Size | 28*20*10 | mm | ||
| Weight | / | g | ||
| Environmental Conditions: | ||||
| Parameter | Min | Typ | Max | Units |
| Operating Temperature | -45 | +85 | ℃ | |
| Non-operating Temperature | -55 | +125 | ℃ | |
| Relative humidity | 95 | % | ||
| Altitude | 50,000 | feet | ||
| Shock / Vibration(MIL-STD-810F) | 25g rms (15 degree 2KHz) endurance, 1 hour per axis | |||
| Shock(non operating) | 20G for 11msc half sin wave,3 axis both directions | |||
