Product code: MT-0.01G67G-25-50
Low Noise Amplifier,0.01-67GHz, NF:5.0dB, Gain:25dB,P1dB:15dBm
| Model:MT-0.01G67G-25-50 |
| Ultra Wide Band: 01-67GHz |
| Gain: 25dB Typ |
| Noise Figure: 5.0dB Typ |
| Good Power and Gain Flatness |
| 50 Ohm Matched Input / Output |
Product Part Number
MT-0.01G67G-25-50
Electrical & Mechanical Specification
| Electrical: | ||||
|---|---|---|---|---|
| Parameter | Min | Typ | Max | Units |
| Frequency range | 0.01-67 | GHz | ||
| Gain | 25 | dB | ||
| Gain Flatness | ±3 | dB | ||
| Noise Figure | 5 | dB | ||
| Output P1dB | 15 | dBm | ||
| Output IP3 | 25 | dBm | ||
| Input VSWR | 1.8 | 2.5 | :1 | |
| Output VSWR | 1.8 | 2.5 | :1 | |
| DC Voltage | 12 | V DC | ||
| DC Supply Current | 300 | mA | ||
| Impedance | 50 | Ohms | ||

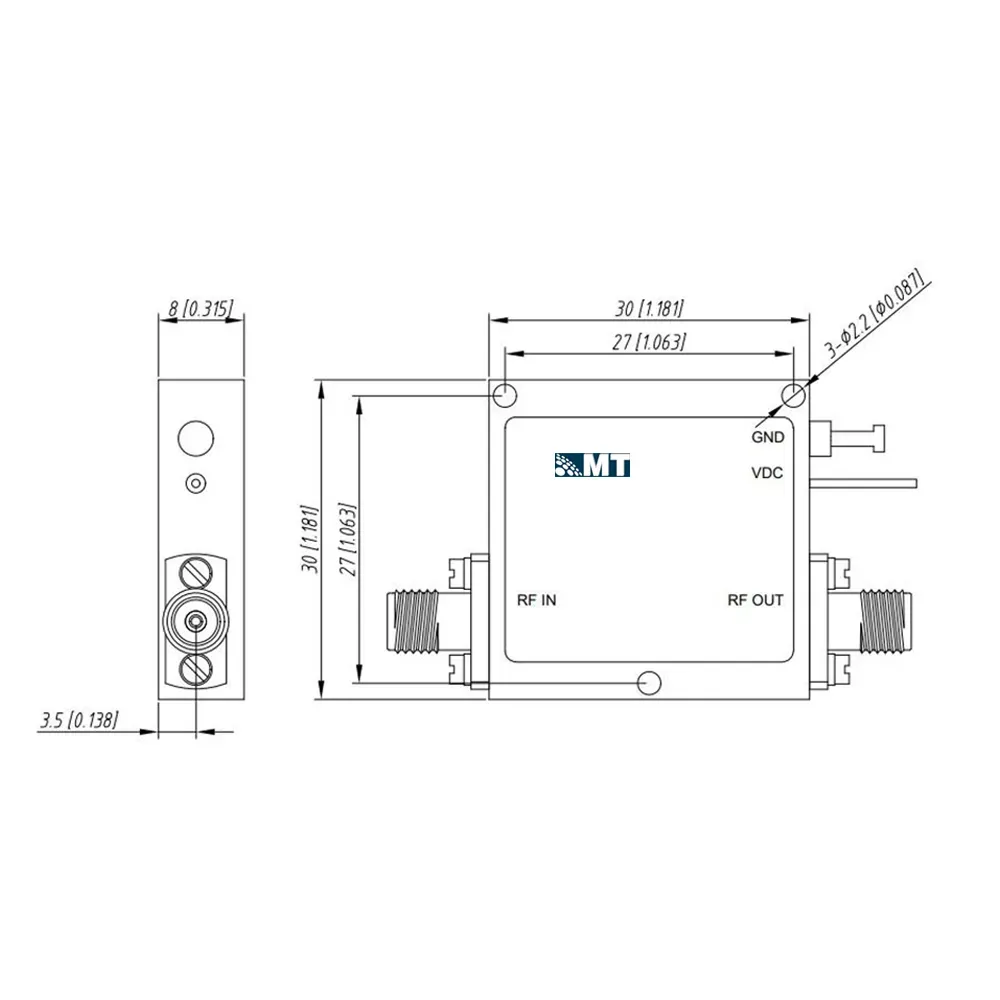

| Mechanical: | ||||
| Parameter | Value | Units | ||
| Input /Output Connector | 1.85mm Female/1.85mm Female | |||
| DC Bias | Solder Pin | |||
| Size | 30*30*8 | mm | ||
| Weight | 50 | g | ||
| Environmental Conditions: | ||||
| Parameter | Min | Typ | Max | Units |
| Operating Temperature | -40 | +75 | ℃ | |
| Non-operating Temperature | -55 | +125 | ℃ | |
| Relative humidity | 95 | % | ||
| Altitude | 50,000 | feet | ||
| Shock / Vibration(MIL-STD-810F) | 25g rms (15 degree 2KHz) endurance, 1 hour per axis | |||
| Shock(non operating) | 20G for 11msc half sin wave,3 axis both directions | |||
