Product code: MT-698-2700-5.5dBi

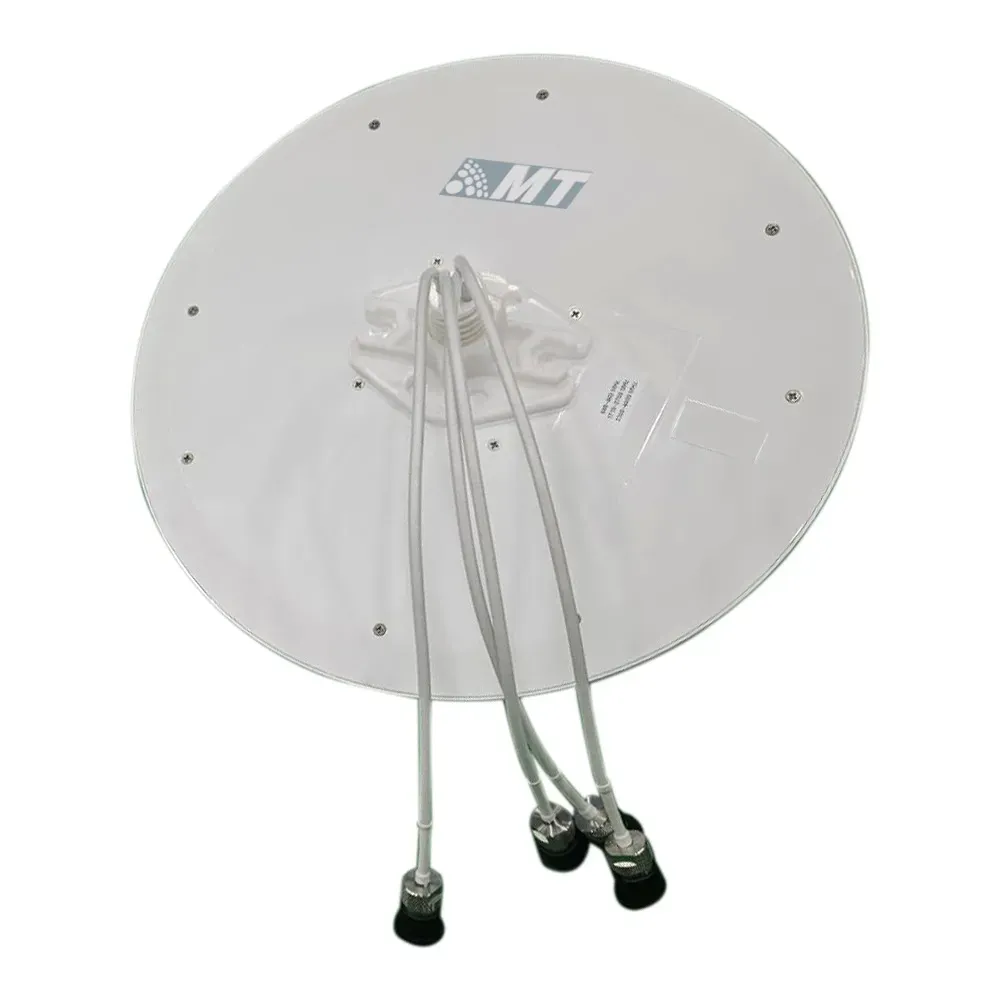

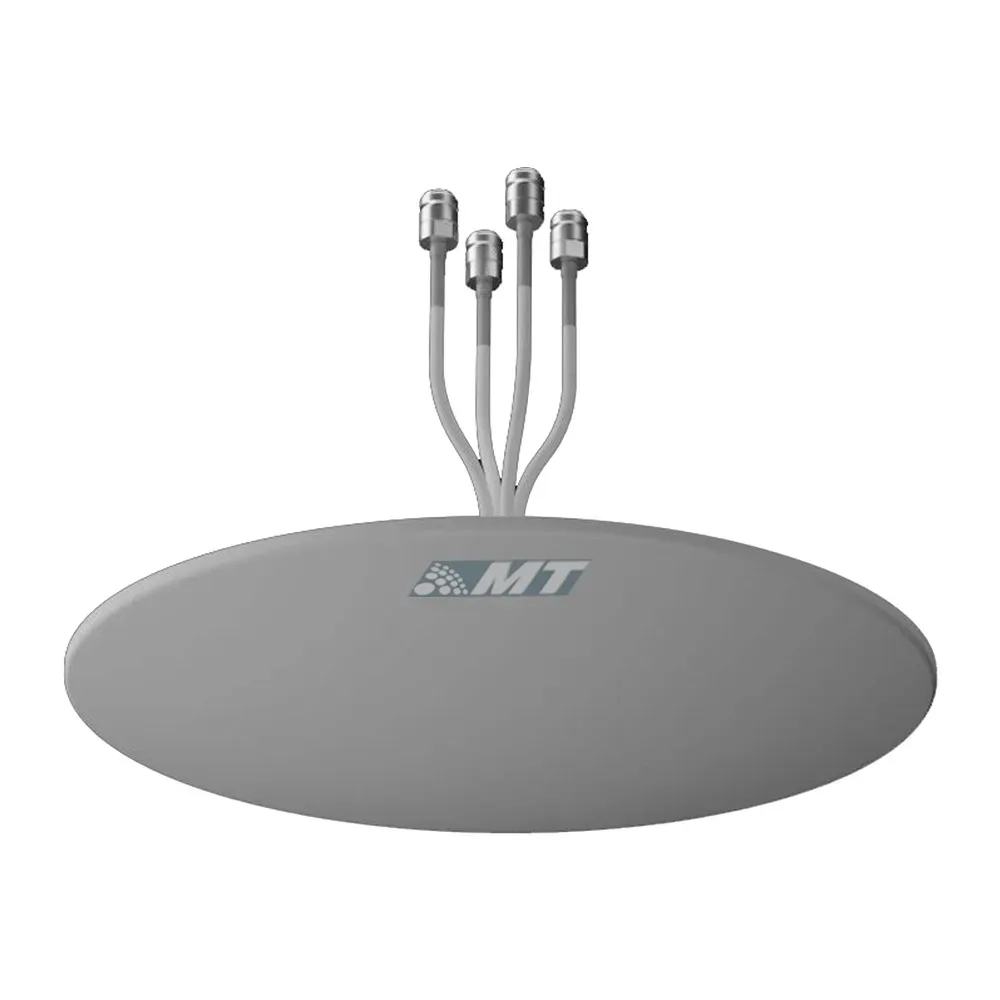

698-2700MHz 4-Port Indoor Omni Slim Ceiling Mount Antennas

Part No: MT-698-2700-5.5dBi
Wide Frequency Band 698-2700-5.5dBi
 Low VSWR
High Gain
Widely used for DAS
WhatsApp Chat
Skype
Product Part Number
MT-698-2700-5.5dBi
Electrical & Mechanical Specification
Electrical Specifications
FrequencyRange(MHz)698-9601710-2700
Gain(dBi)45.5
VSWR≤1.8≤1.7
PolarizationLinear Horizontal for Each Radiator
Isolation(dB)>17>20
PIM, 3rd Order, 2x20W(dBc)≤-140 | -150 | -153
Horizontal Beamwidth360°
Vertical Beamwidth82°46°
Input Impedance50 Ω
Max.Power50 W
Mechanical Specifications
Connector4xN | 4.3-10 Female
Dimensions(mm)Ø355×14
Weight(kg)1
Radome MaterialASA+PC
Operating Temperature-40°C to +65
MountingCeiling Mount
