Product code: MT-698-2700-28X-LP-1

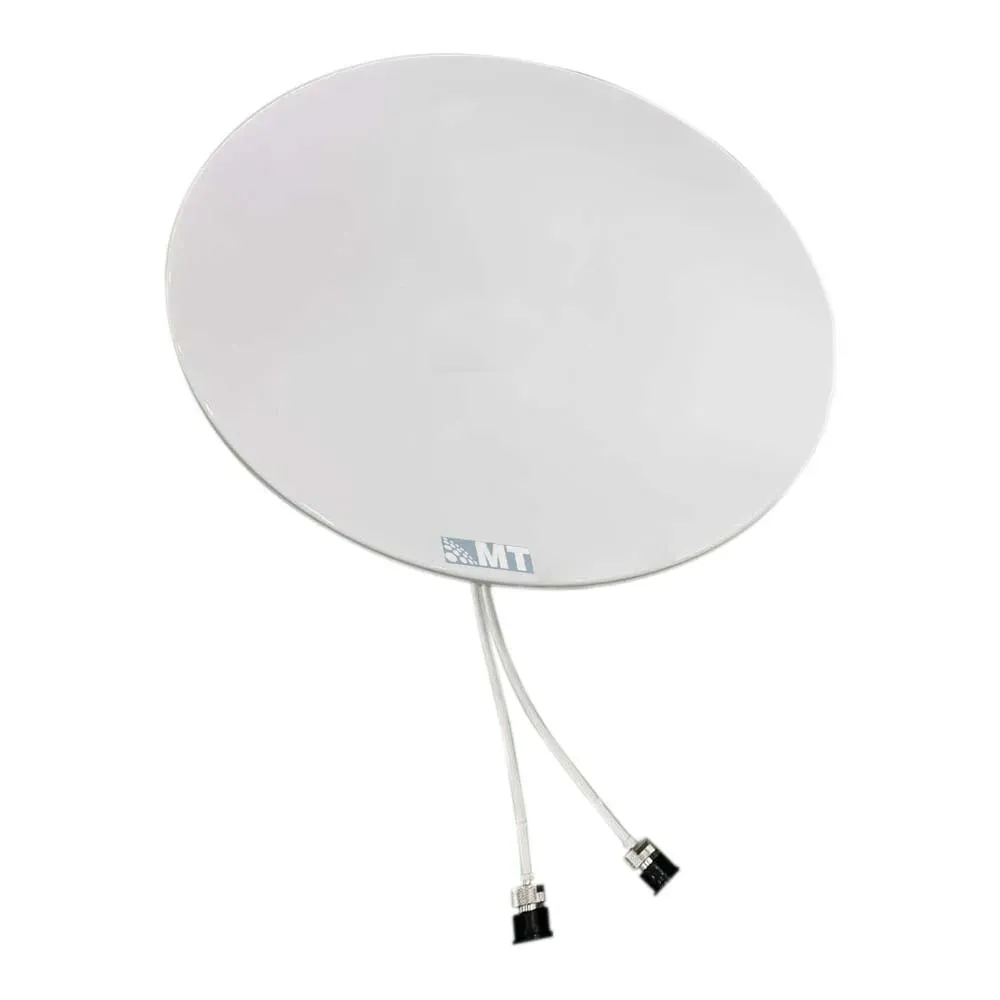

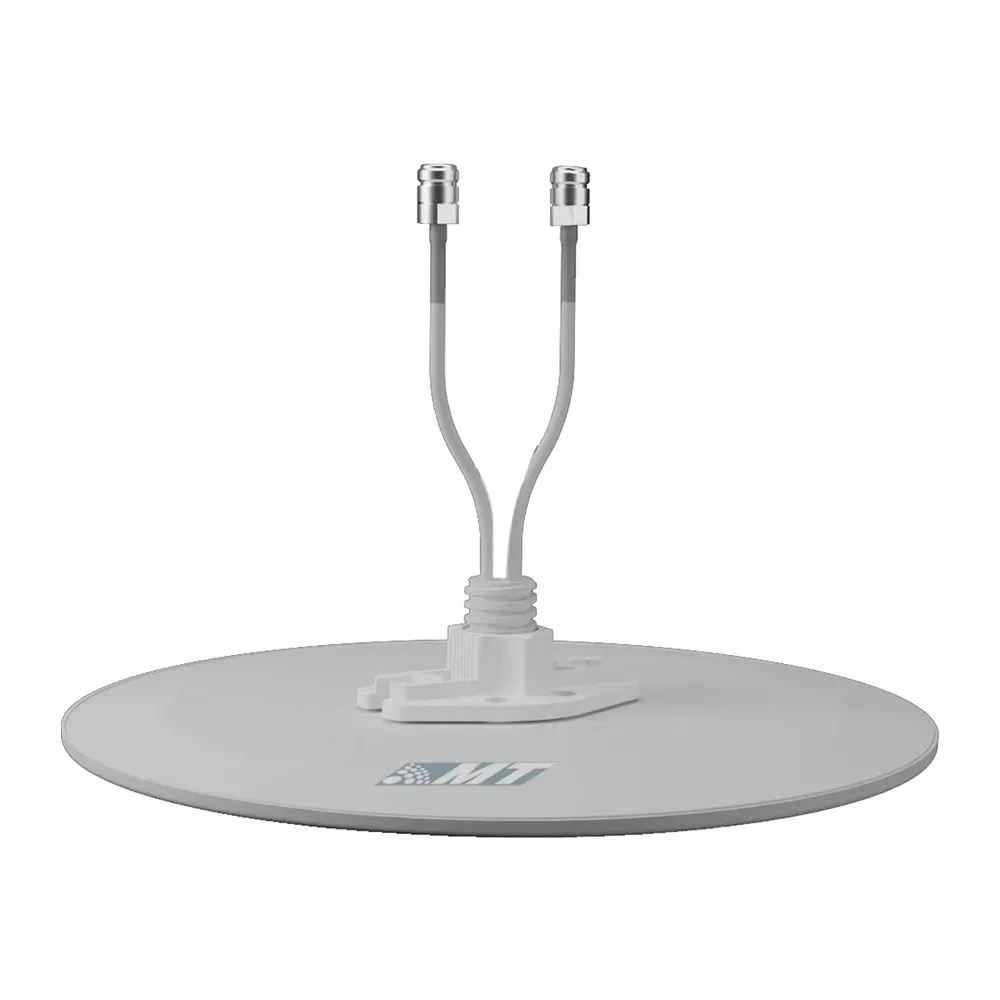

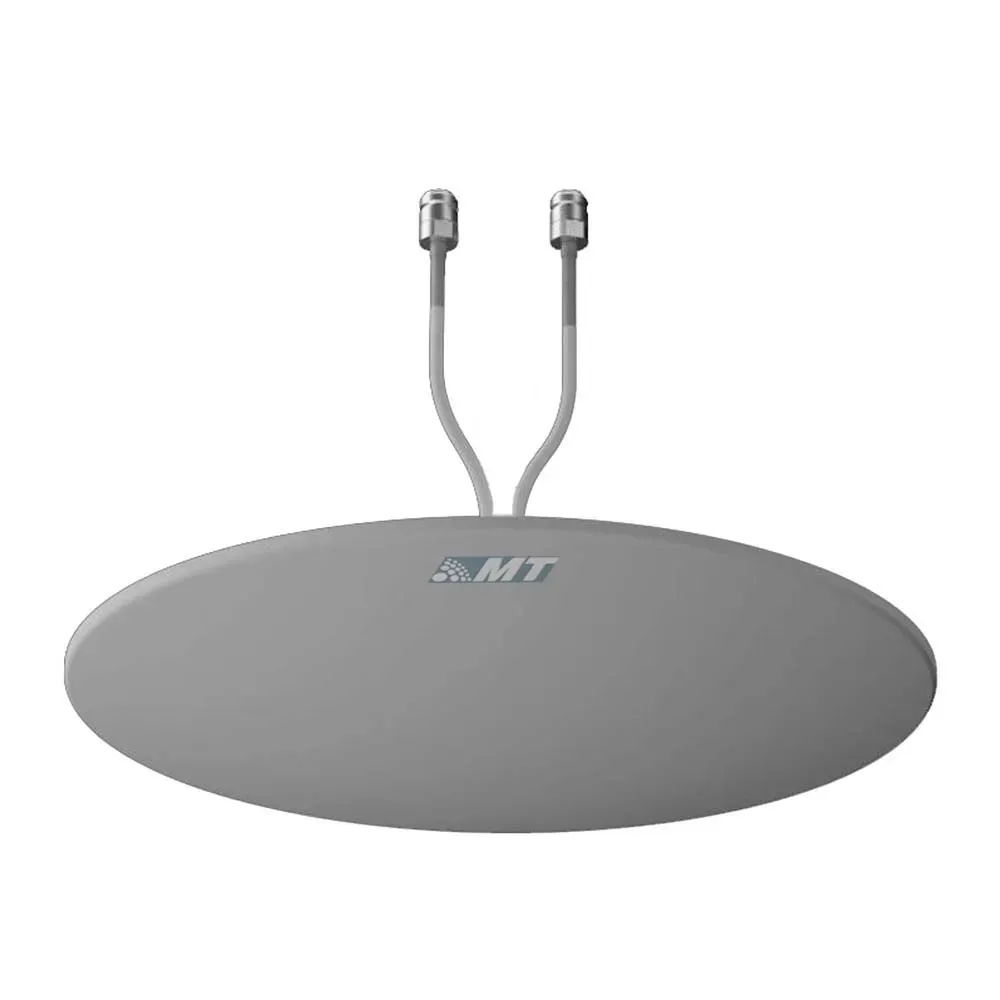

698-2700MHz MIMO 3dBi Indoor Omni Ceiling Mount Antennas

Part No: MT-698-2700-28X-LP
Wide Frequency Band 698-2700MHz
 Low VSWR
High Gain
Widely used for DAS
WhatsApp Chat
Skype
Product Part Number
MT-698-2700-28X-LP-1
Electrical & Mechanical Specification
Electrical Specifications
Frequency Range(MHz)698-9601710-2700
Gain(dBi)3.54.5
VSWR≤1.8≤1.8
PolarizationLinear H | V for each Radiator
PIM, 3rd Order, 2x20W(dBc)≤-140 | -150 | -153
Horizontal Beam width360°
Vertical Beam width90°46°
Input Impedance50 Ω
Max. Input Power50 W
Lightning ProtectionDC Ground
Mechanical Specifications
Connector2xN | 4.3-10 Female
Dimensions(mm)Ø215×47
Weight(kg)0.45
Radome MaterialABS
Operating Temperature-40°C to +65 °C
MountingCeiling Mount
