Product code: MT-740-NF-150-2

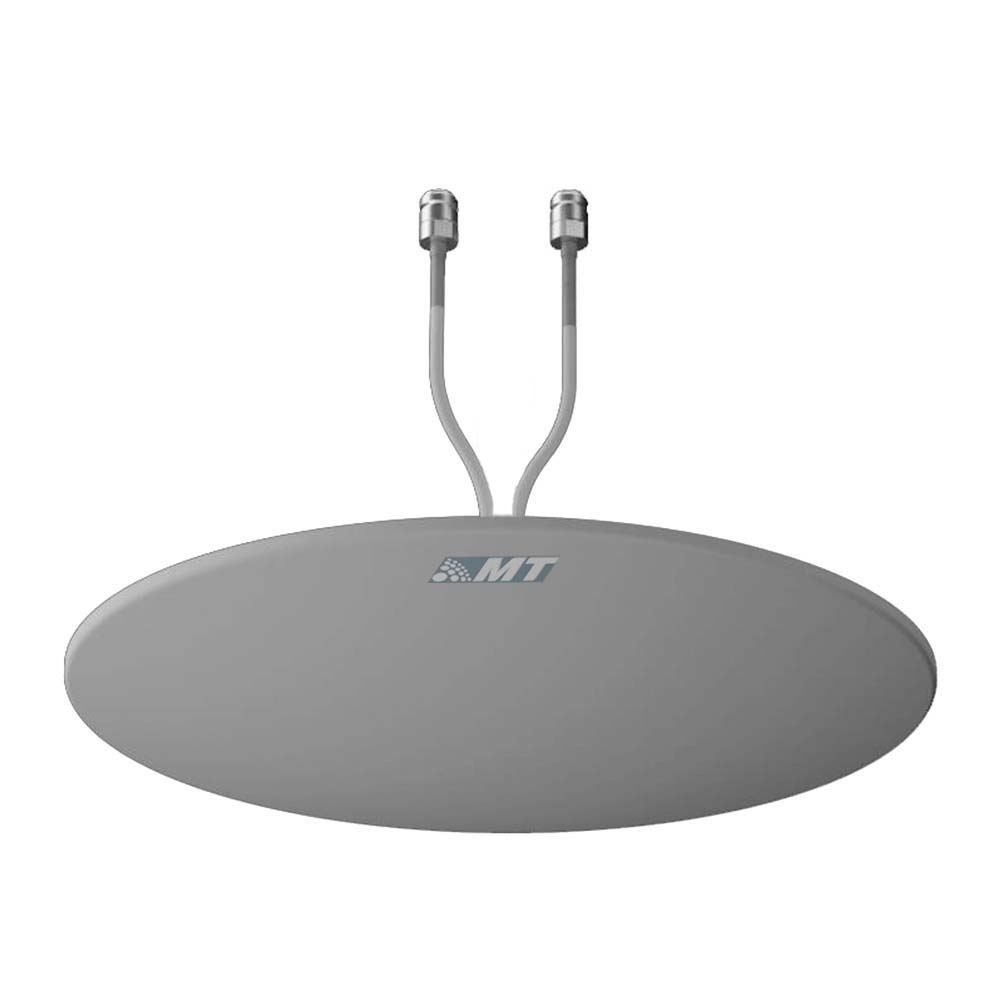

698-4000MHz Low PIM -150dBc MIMO Omni Ceiling Antenna

Part No: MT-740-NF-150-2
Wide Frequency Band 698-4000MHz
Compact, Low Weight
High Reliability
Long Warranty Time
Simple Installation
WhatsApp Chat
Skype
Product Part Number
MT-740-NF-150-2
Electrical & Mechanical Specification
Model No.MOA-740-NF-150-22
Frequency(MHz) 698-9601710-27003300-4000
Gain (dBi)3.54.55
VSWR≤2.0≤1.8≤1.8
PolarizationLinear×2
Isolation(dB)>17/20/25
Horizontal Beam width360°
Vertical Beam width90° 85°45°
3rd PIM(dBc)@2*33dBm≤-150dBc
Total Input Power(W)50
Impedance (ohm)50
Lightning ProtectionDC Ground
Connector/Cable LengthN–Female
Radome materialWhite
