Product code: MT-640-2700-8.5-NF

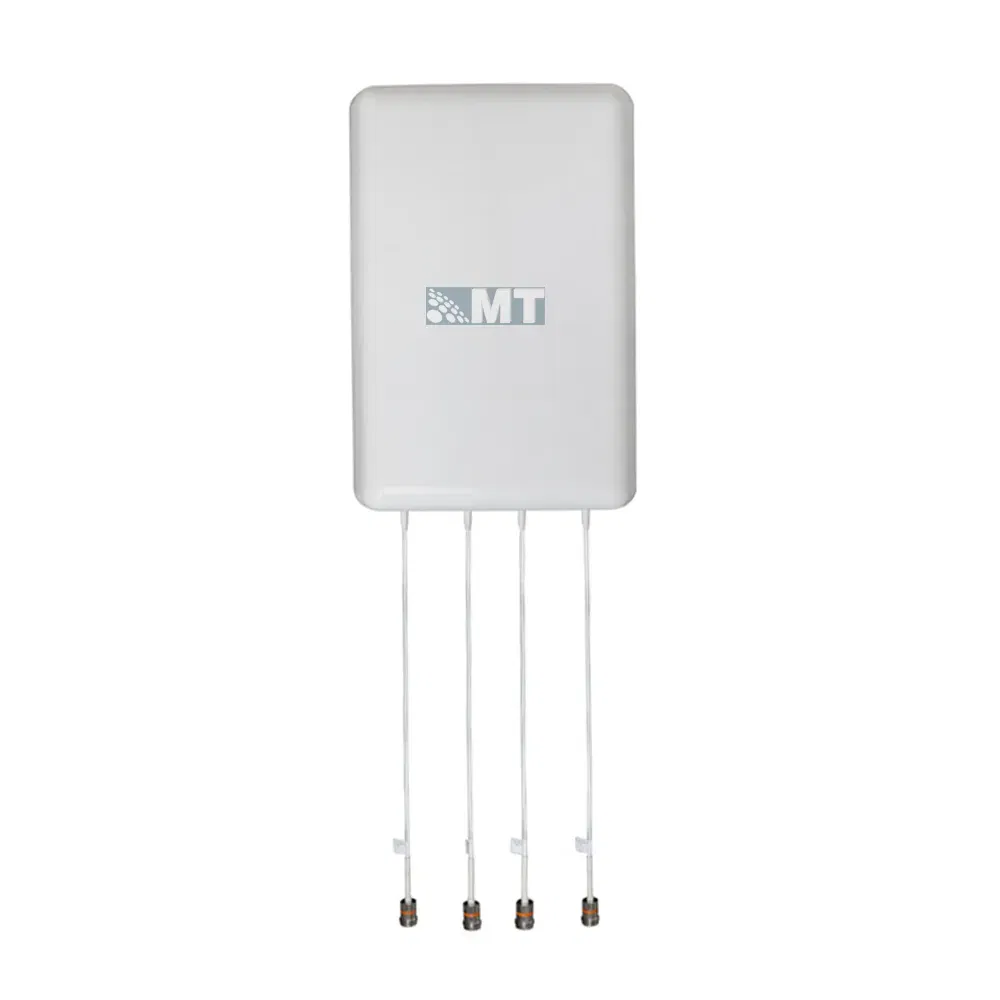

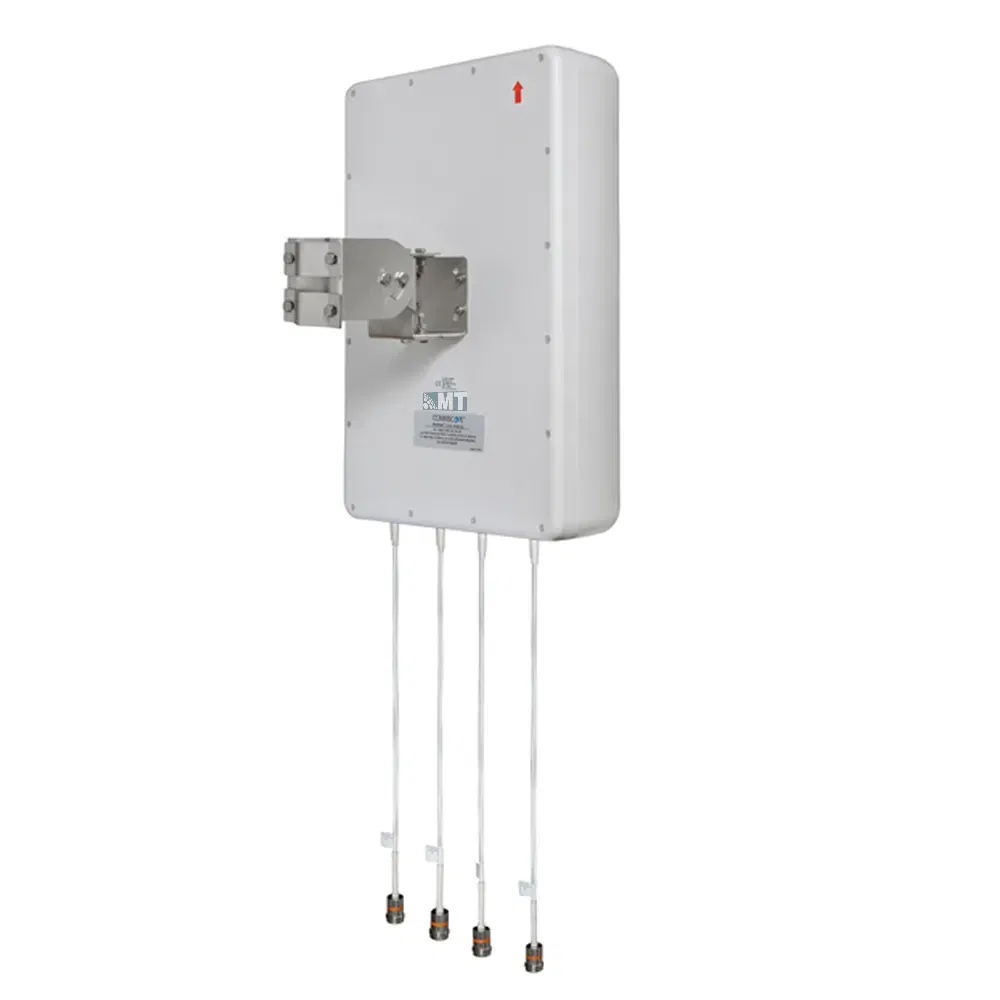

Low PIM 600-4000MHz 8.5dBi 4-Port Outdoor Directional Pole Mount Panel Antennas

Part No: MT-640-2700-8.5-NF
Wide Frequency Band 600-4000MHz
 Low VSWR
High Gain
Widely used for DAS
WhatsApp Chat
Skype
Product Part Number
MT-640-2700-8.5-NF
Electrical & Mechanical Specification
Electrical Specifications
Frequency Range(MHz)600-698617-698698-9601710-27003300-4000
Gain(dBi)45.55.58.57
VSWR≤2.5≤2.5≤2.0≤2.0≤2.0
PolarizationHorizontal + Vertical
Isolation(dB)≥10≥12≥12≥20≥24
Front to Back Ratio(dB)≥6≥7≥7≥13≥10
PIM, 3rd Order, 2x20W(dBc)≤-140≤-140 | -150 | -153
Horizontal Beam width108-80°130-85°130-85°95-58°65-33°
Vertical Beam width98-75°108-78°108-78°83-45°90-25°
Input Impedance50 Ω
Max. Input Power50 W
Mechanical Specifications
Connector4xN | 4.3-10 Female
Dimensions(mm)393x317x80
Weight(kg)1.5
Radome MaterialABS
Operating Temperature-40°C to +65°C
MountingWall Mount | Pole Mount
