Product code: MT-ID-MIMO-627-8.5

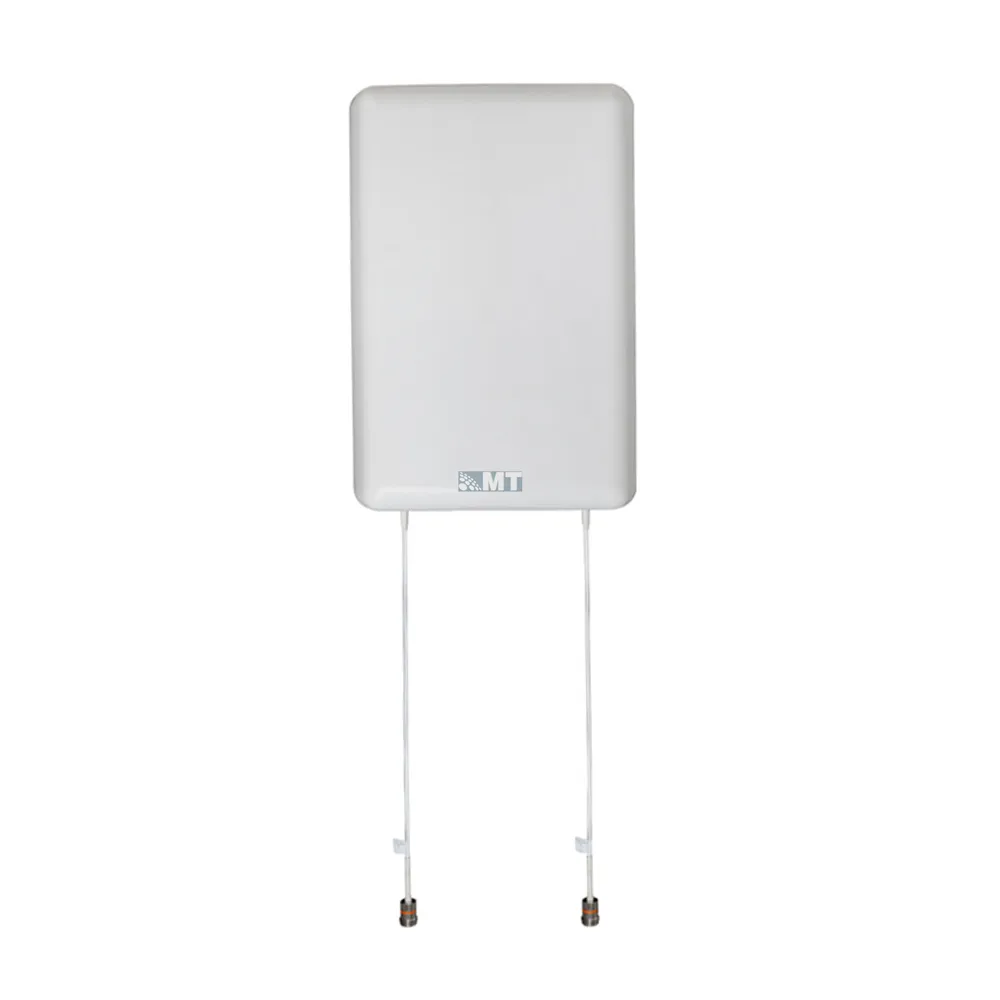

Low PIM 698-2700MHz 8.5dBi MIMO Indoor Directional Wall Mount Panel Antennas

Part No: MT-ID-MIMO-627-8.5
Wide Frequency Band 698-2700MHz
 Low VSWR
High Gain
Widely used for DAS
WhatsApp Chat
Skype
Product Part Number
MT-ID-MIMO-627-8.5
Electrical & Mechanical Specification
Electrical Specifications
Frequency Range(MHz)698-9601710-2700
Gain(dBi)5.58.5
VSWR≤2.0≤1.8
Polarization±45°
Isolation(dB)≥12≥20
Front to Back Ratio(dB)≥10≥13
PIM, 3rd Order, 2x20W(dBc)≤-140 | -150 | -153
Horizontal Beam width90°65°
Vertical Beam width78°60°
Input Impedance50 Ω
Max. Input Power50 W
Mechanical Specifications
Connector2xN | 4.3-10 Female
