Product code: MT-12270MBA
MT-12270MBA/UHF High Gain Broadband Antenna
| Model : MT-12270MBA |
| Frequency range:1200-2700 MHz |
Product Part Number
MT-12270MBA
Electrical & Mechanical Specification
| Electrical specifications | |
|---|---|
| Frequency range | 2 x 1200-2700 MHz |
| VSWR | ≤ 2.5:1 |
| Port-to-port isolation | > 45 dB |
| Nominal impedance | 50 ohm |
| Power rating | 50 W PEP |
| Gain | Average 2 dBi |
| Azimuth radiation pattern | Omnidirectional |
| Polarization | Vertical |
| Connector | 2 x N female (options available) |
| Mechanical specifications | |

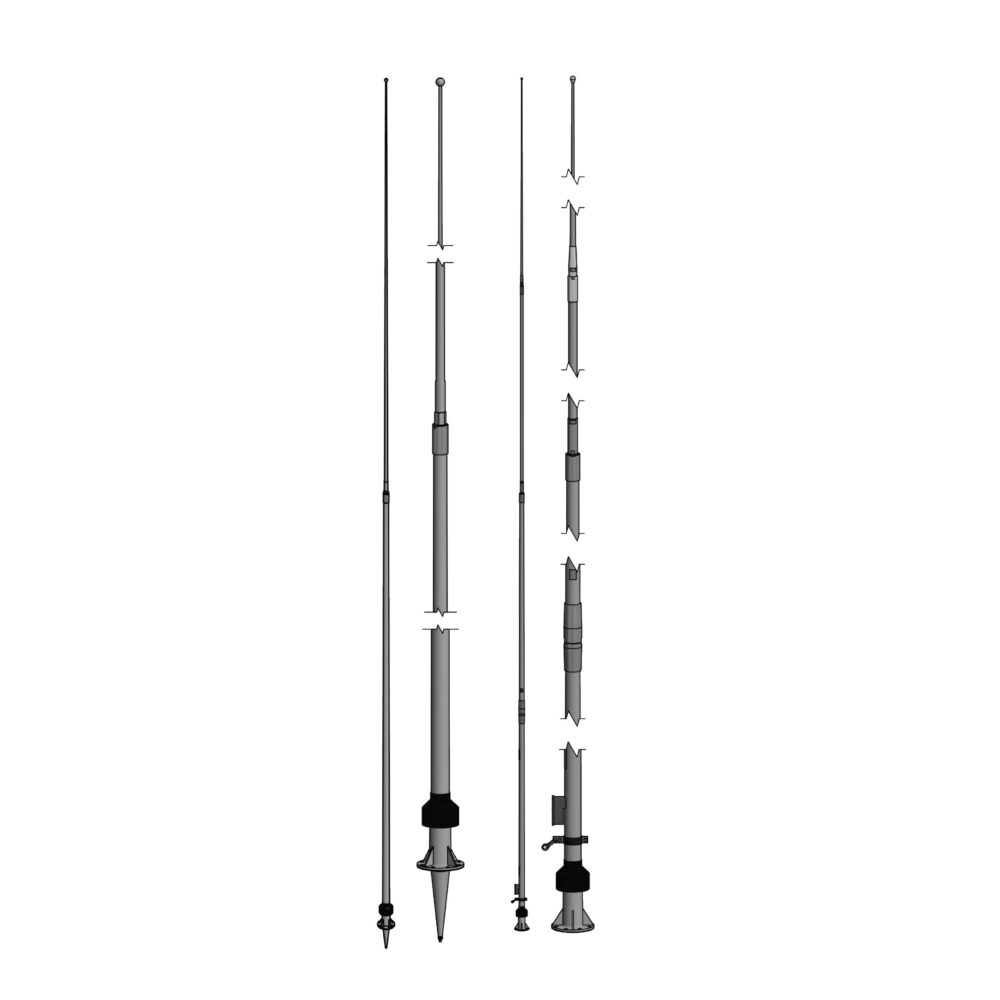

| Design | Centre fed stacked dipoles. Radiating element completely enclosed in epoxy/ fiberglass laminate. Metal parts are brass, aluminum and stainless steel. |
| Length | 1.56 m (61 in) with NATO 4-hole spring base |
| Weight | Whip: 1.2kg (2.6 lbs) Base: 2.4kg (5.3 lbs) |
| Wind rating | 55 m/s = 125 mph |
| Finish | Polyurethane lacquer, olive drab. |
| Temperature range | -55 °C, +71°C; -67 °F, +160 °F |
