MT-1227MBA /UHF High Gain Broadband Antenna

Product code: MT-1227MBA-1

Model:MT-1227MBA

Ultra broadband 1200-2700 MHz

High gain

Stacked dipole design, ground plane independent

Designed for operation on all kinds of vehicles including armoured

Suitable for operation on shelters and masts or in other permanent installations

Rugged high quality antenna with a durable construction

NATO flange base with spring (options available)

Product Part Number

MT-1227MBA-1

Electrical & Mechanical Specification

Electrical specifications
Frequency range	1200-2700 MHz
VSWR	≤ 3.5:1
Nominal impedance	50 ohm
Power rating	100 W PEP

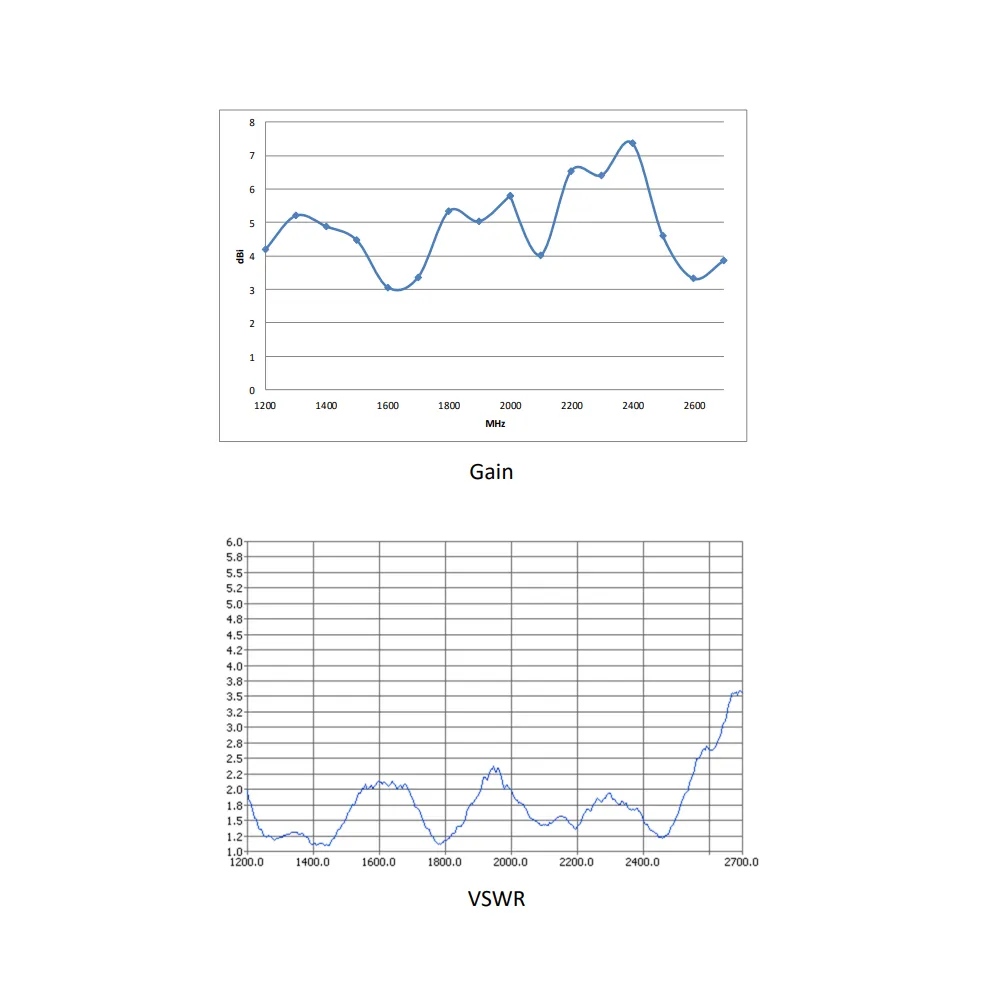

Gain	Average 5 dBi – see curve
Radiation pattern	Azimuth: Omnidirectional Vertical: See plots
Polarization	Vertical
Connector	N female (options available)
Mechanical specifications
Design	Centre fed stacked dipoles. Radiating 8element completely enclosed in epoxy/fiberglass laminate. Metal parts are brass, aluminum and stainless steel.
Length	0.76 m (30 in)
Weight	Whip: 1.1kg (2.5 lbs) Base: 2.2kg (4.8 lbs)
Wind rating	55 m/s = 125 mph
Finish	Polyurethane lacquer, olive drab.
Temperature range	-55 °C, +71°C; -67 °F, +160 °F
