Product code: N/A
MT-16 Ways HF Receiver Multicoupler
| Frequency : 2 – 30 MHz |
| Impedance : 50 Ω |
| Isolation : ≥ 25 dB |
| Temperature Range : -10° to +65°C |
| Weight : 7.5 kg |
Electrical & Mechanical Specification
| Specification: | |||
|---|---|---|---|

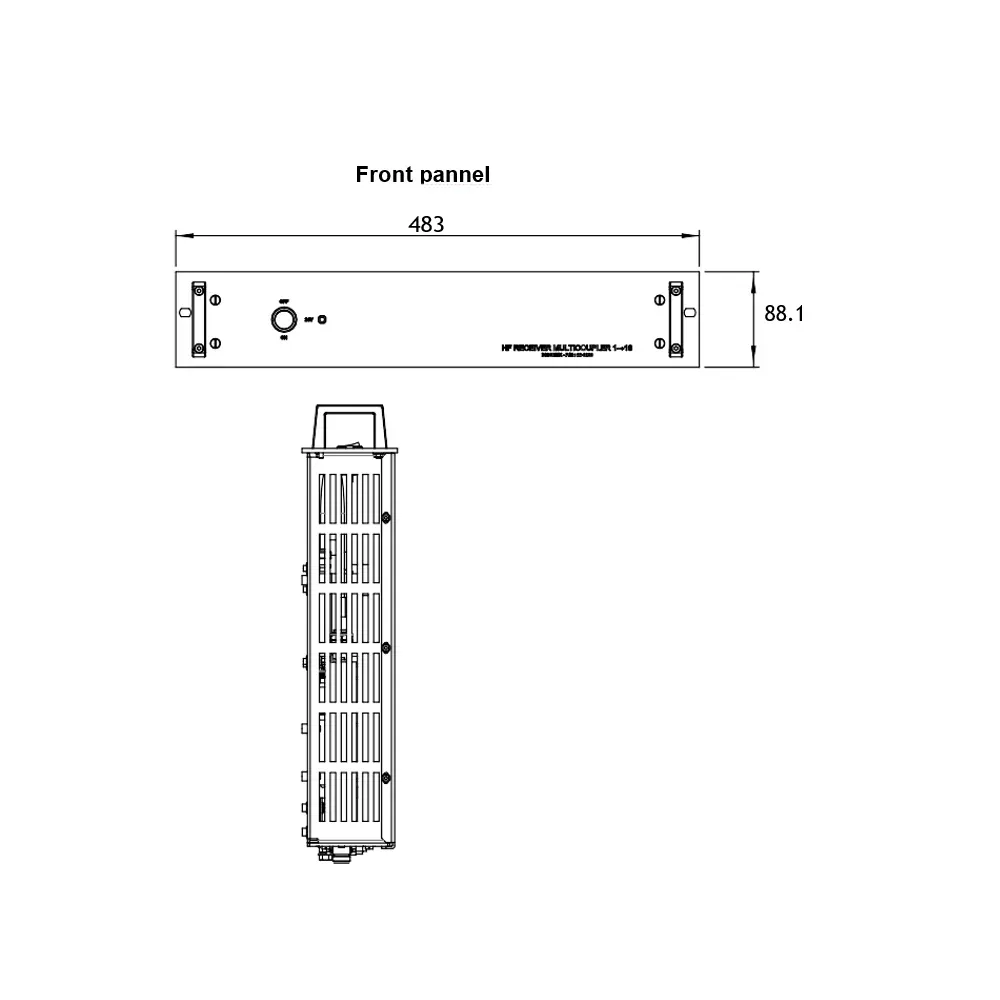

| Frequency range | 2 – 30 MHz | Dimensions (w x h) | 19’’ rack – 4U |
| Impedance | 50 Ω | Depth | 365 mm |
| RF Input ports | 1 | Materials | AGS – galvanised steel |
| RF Output ports | 16 | Temperature range | -10° to +65°C |
| Maximal input power | +10 dBm | Weight | 7.5 kg |
| Average gain | 1.5 dB | RF Input connector | 1 x N f |
| Amplitude balance | <0.3 dB | RF Output connectors | 16 x BNC f |
| Phase balance | <1° | Main power supply connector | C14 IEC |
| VSWR (Input/Output) | < 2 / <1.2 | Backup power supply connector | ®Power con NAC3MPA-1 |
| Isolation | > 25 dB | ||
| Third order intercept | 14 dBm | ||
| Noise figure | 10 dB | ||
| Main power supply | 230 V / 50 Hz – 60 Hz | ||
| Backup power supply | 9 Vdc to 24 Vdc |
