MT-2040MDA/UHF Discone Antenna

Q: Electrical & Mechanical Specification

Electrical specifications Frequency range 200-400 MHz VSWR Gain 2 dBi Impedance 50 Ohm Max. power 300 W Polarization Vertical Radiation pattern Azimuth: Omnidirectional Mechanical specifications Design Conductor completely enclosed in high quality epoxy / fiberglass laminate. Metal parts are plated and painted brass. Weight 5.5 kg (12.1 lbs) Finish Polyurethane lacquer, olive drab. Other colors on request. Temperature -55 °C, +55 °C; -67 °F, +131 °F

Q: Other Inquiries

Please send purchase request at sales@mtsrl.in

Product code: MT-2040MDA

MT-2040MDA/UHF Discone Antenna

Model:MT-2040MDA

Frequency range:200-400 MHz

WhatsApp Chat

Skype

Product Part Number

MT-2040MDA

Electrical & Mechanical Specification

Electrical specifications
Frequency range	200-400 MHz
VSWR	< 1.75 200-400
Gain	2 dBi
Impedance	50 Ohm
Max. power	300 W
Polarization	Vertical
Radiation pattern	Azimuth: Omnidirectional

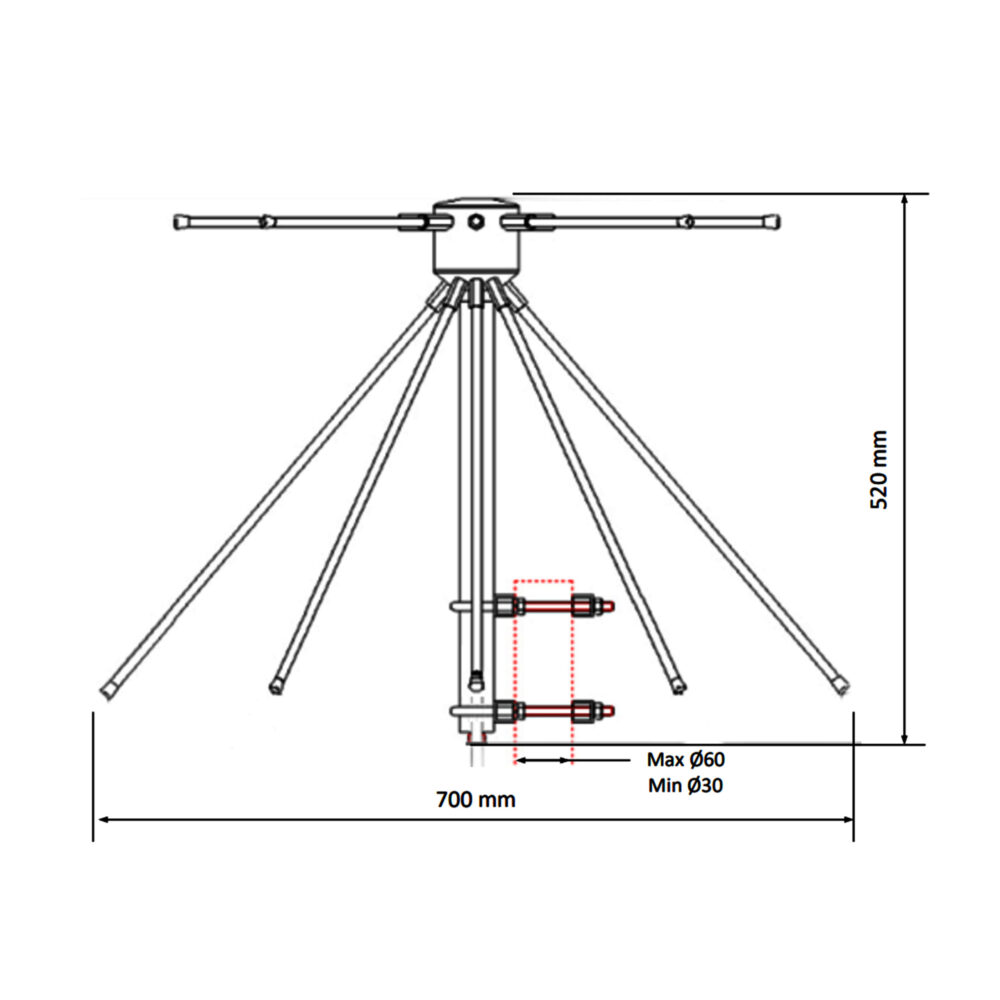

Mechanical specifications
Design	Conductor completely enclosed in high quality epoxy / fiberglass laminate. Metal parts are plated and painted brass.
Weight	5.5 kg (12.1 lbs)
Finish	Polyurethane lacquer, olive drab. Other colors on request.
Temperature	-55 °C, +55 °C; -67 °F, +131 °F
