MT-230M10MTAS1 10m Marine Transmitting Antenna

Product code: MT-230M10MTAS1

Model: MT-230M10MTAS1

Frequency range: 1.6-30 MHz

a high quality glass fibre transmitting antenna.

marine coastal and HF telephony bands.

End-fed or side-fed options are available.

Product Part Number

MT-230M10MTAS1

Electrical & Mechanical Specification

Electrical specifications
Frequency range	1.6-30 MHz
Power rating	1.5 kW PEP
Impedance	See table on page 3
Pattern	Omnidirectional
Polarization	Vertical
Electrical length	10 m (33 ft)
Mechanical specifications
Design	Self-Supporting fiberglass rod with stainless steel armature
Height	10 m (33 ft) nominal
Weight	See table on page 2
Sections	See table on page 2
Wind rating	55 m/s = 125 mph
Moment of flexure	275 kph at 55 m/s
Deflection due to wind load	5 m (16.7 ft) at tip ball at 55 m/s wind load
Finish	Polyurethane lacquer, white.
	Other colors available on request
Temperature range	-55 °C, +55 °C; -67 °F, +131 °F
Water proofing	IP67
Dimension & Weights

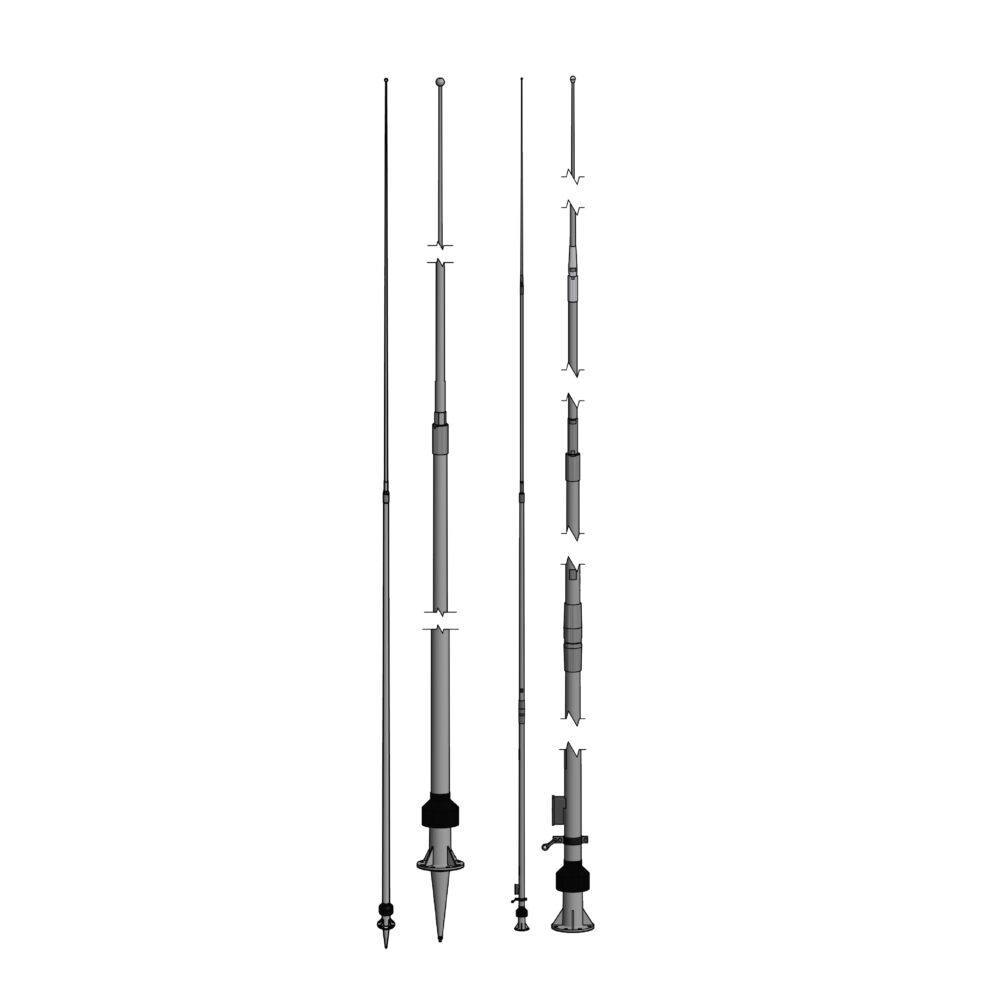

	Two-Section	Four-Section
Dimensions	5m nominal section length	2.5m nominal section length
Weight	End-fed: 22 kg	End-fed: 25.6kg
Weight	Side-fed: 19.8 kg	Side-fed: 23.4kg
Sections	Base section – End-fed: ATB50 – 18.5 kg	Base section – End-fed: AT100D-4B – 14.1 kg Base section – Side-fed: AT100DS-4B – 11.9kg
	Base section – Side-fed: ATB50DS – 16.3kg	Base section – High side-fed: AT100DS-H-4B – 11.9kg
	Base section – High side-fed: ATB50DS-H – 16.3kg Top section: APB50 – 3.5 kg	Lower section: AT100-4L – 8.5kg Middle section: ASM25-2 – 2.2kg Top section: APB25 – 0.8 kg
