MT-230M8MHTA/D-8 m HF Transmitting Antenna

Product code: MT-230M8MHTA

Model:MT-230M8MHTA

Frequency range:1.6-30 MHz

Product Part Number

MT-230M8MHTA

Electrical & Mechanical Specification

Electrical specifications
Frequency range	1.6-30 MHz
Power rating	1.5 kW PEP
Impedance	See diagram on reverse side
Pattern	Omnidirectional
Polarization	Vertical
Electrical length	8 m (27 ft)
Mechanical specifications
Design	Self-supporting fiberglass rod with bronze and stainless steel armatures.
Height	8m (27 ft)
Weight	11kg

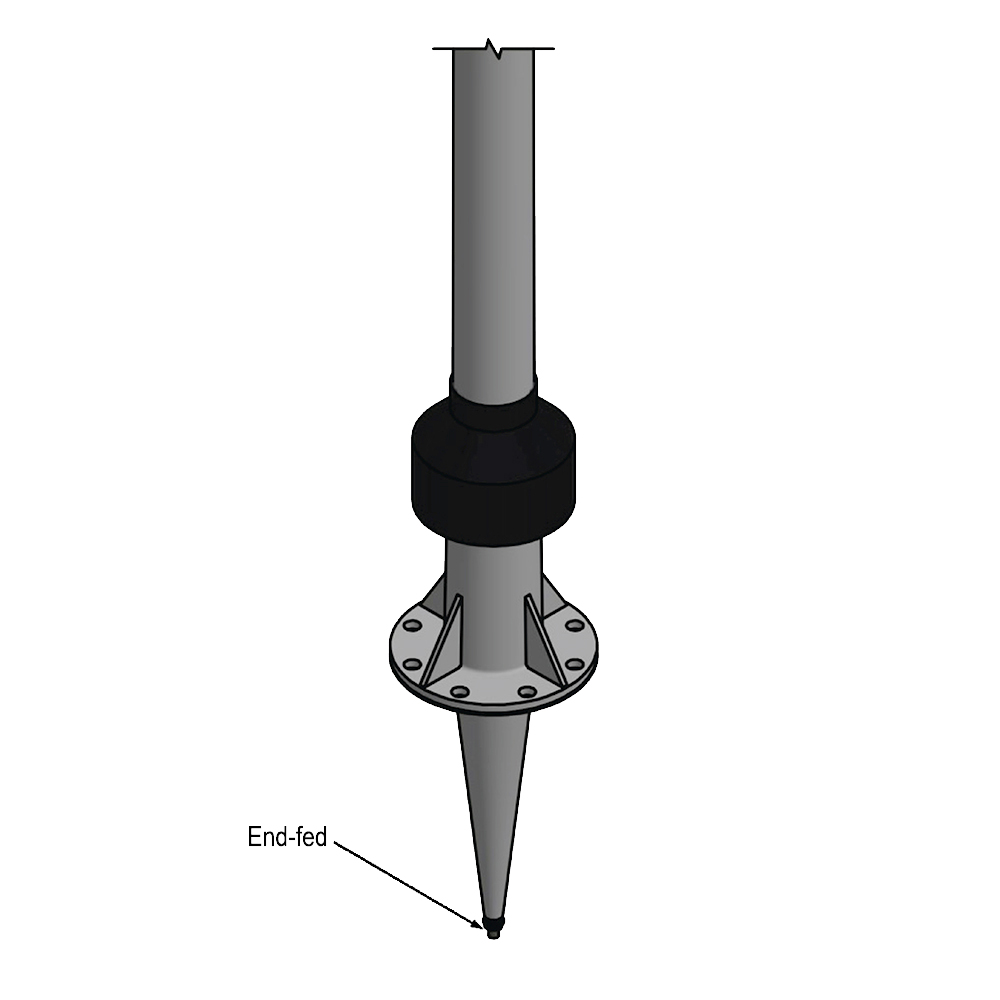

Sections	Base section: ATB42D/D
Wind rating	55 m/s = 125 mph
Moment of flexure	93.7 kpm at 55 m/s
Deflection due to wind load	4.6 m (16.7 ft) at tip ball at 55 m/s wind load
Finish	Polyurethane lacquer, gray
Temperature range	-55 °C, +71°C; -67 °F, +160 °F
