Product code: MT-88108MRA

MT-88108MRA/88-108MHz Receiving Antenna

Model:MT-88108MRA
Frequency range:87.5 -108MHz
WhatsApp Chat
Skype
Product Part Number
MT-88108MRA
Electrical & Mechanical Specification
Electrical specifications
Frequency range87.5 – 108MHz
VSWR< 3:1
Nominal impedance50 ohm
Power ratingReceiving
Gain-4 – 0dBi
Radiation patternOmnidirectional within ±3dB
PolarizationHorizontal
ConnectorBNC, or custom specified
Mechanical specifications
DesignU shaped dipole, made from aluminum and fiberglass reinforced polyester.

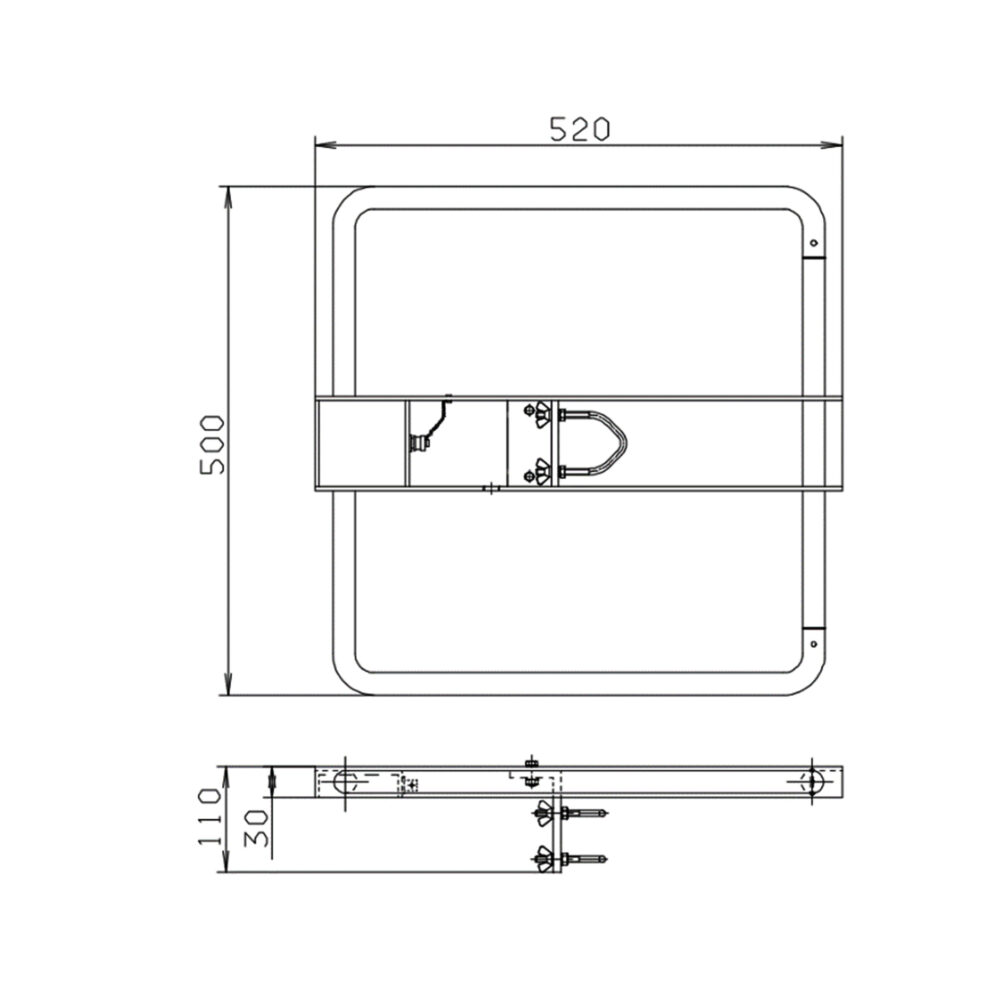

Size520x500x 30 (110) mm
Weight1.9 kg
Wind rating55 m/s = 125 mph
FinishPolyurethane lacquer, olive drab, UV specified.
Temperature range-55 °C, +55 °C; -67 °F, +131 °F

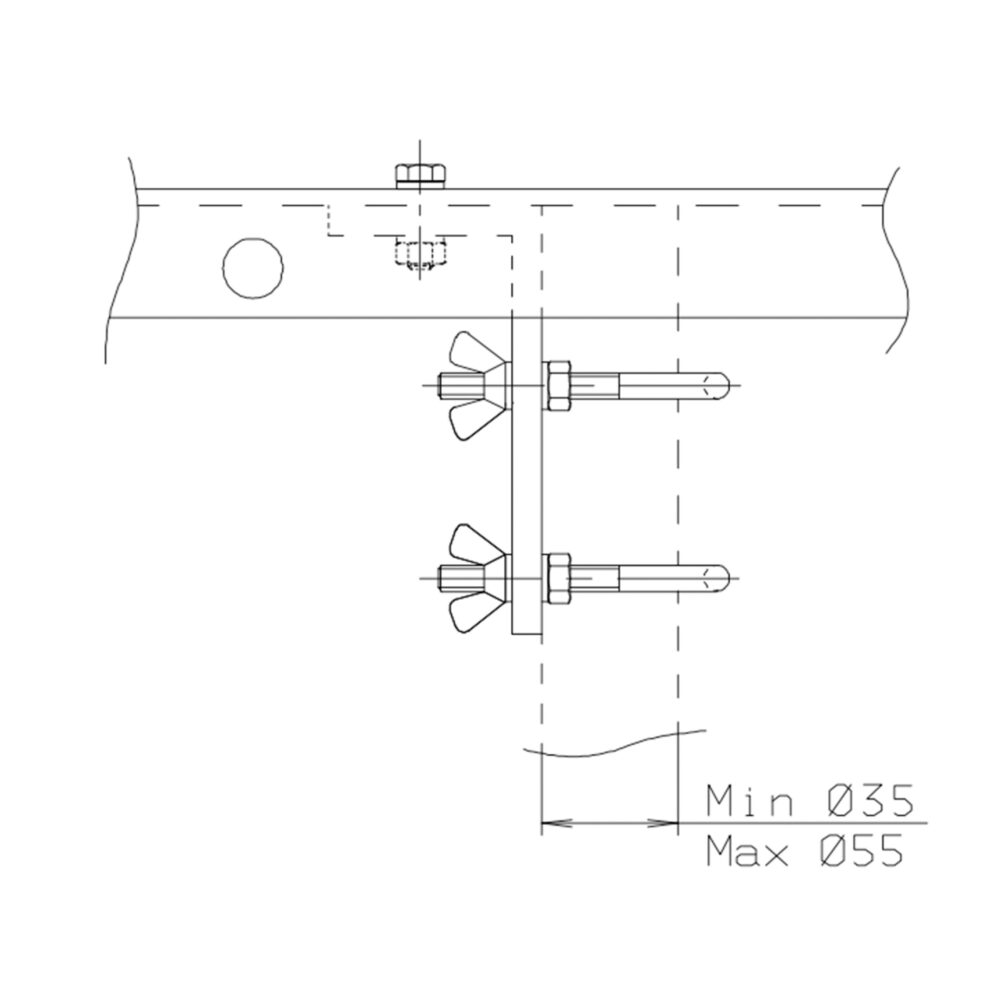

MountingOn ø35 to ø55mm tube
