Product code: MT-30108MDA-1

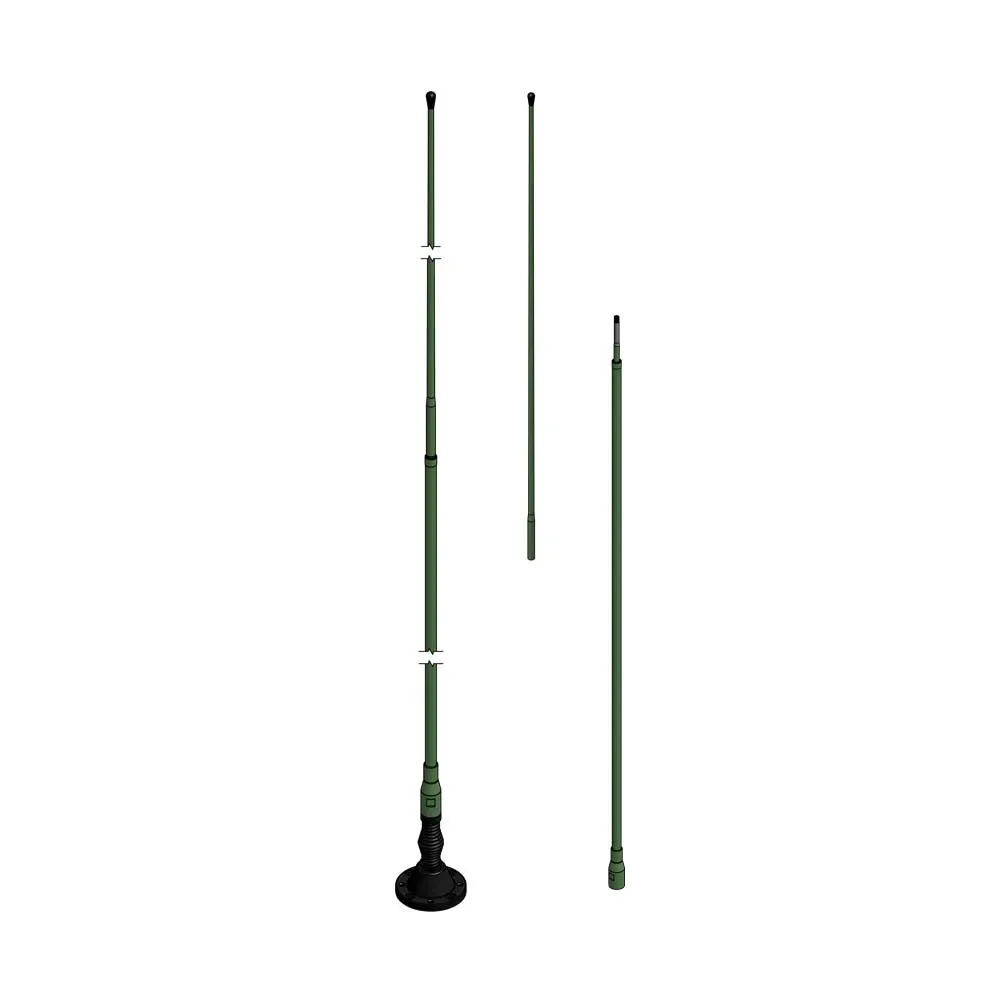

MT-30108MDA/VHF Dipole Antenna, Vehicle, Mast & Fixed Mount Base options including L1 & L1/L2 GPS

Model:MT-30108MDA
Frequency range:30-108 MHz
WhatsApp Chat
Skype
Product Part Number
MT-30108MDA-1
Electrical & Mechanical Specification
Electrical specifications
Frequency range30-108 MHz
VSWRSee diagram
Nominal impedance50 ohm
Power rating100 W
GainSee diagram
Radiation patternAzimuth: Omnidirectional Elevation: See overleaf
PolarizationVertical
ConnectorBNC Female, others on request
Mechanical specifications
DesignCentre fed dipole. Radiating elements completely enclosed in epoxy/fiberglass laminate. Metal parts are plated brass and stainless steel.
LengthTotal: 3.3 m (130 in) Lower Whip: 1.8 m (71 in) Upper Whip: 1.45 m (57 in) Base (Option A): 0.22 m (9 in)
WeightWhips – 1.65 kg (3.6 lbs) Complete – 3.4 kg (7.5 lbs)
Wind rating55 m/s = 125 mph
FinishPolyurethane lacquer.
ColorCustomer Specified
InstallationSee base option table
Temperature range-55 °C, +71 °C; -67 °F, +160 °F
