Product code: MT-727MLA

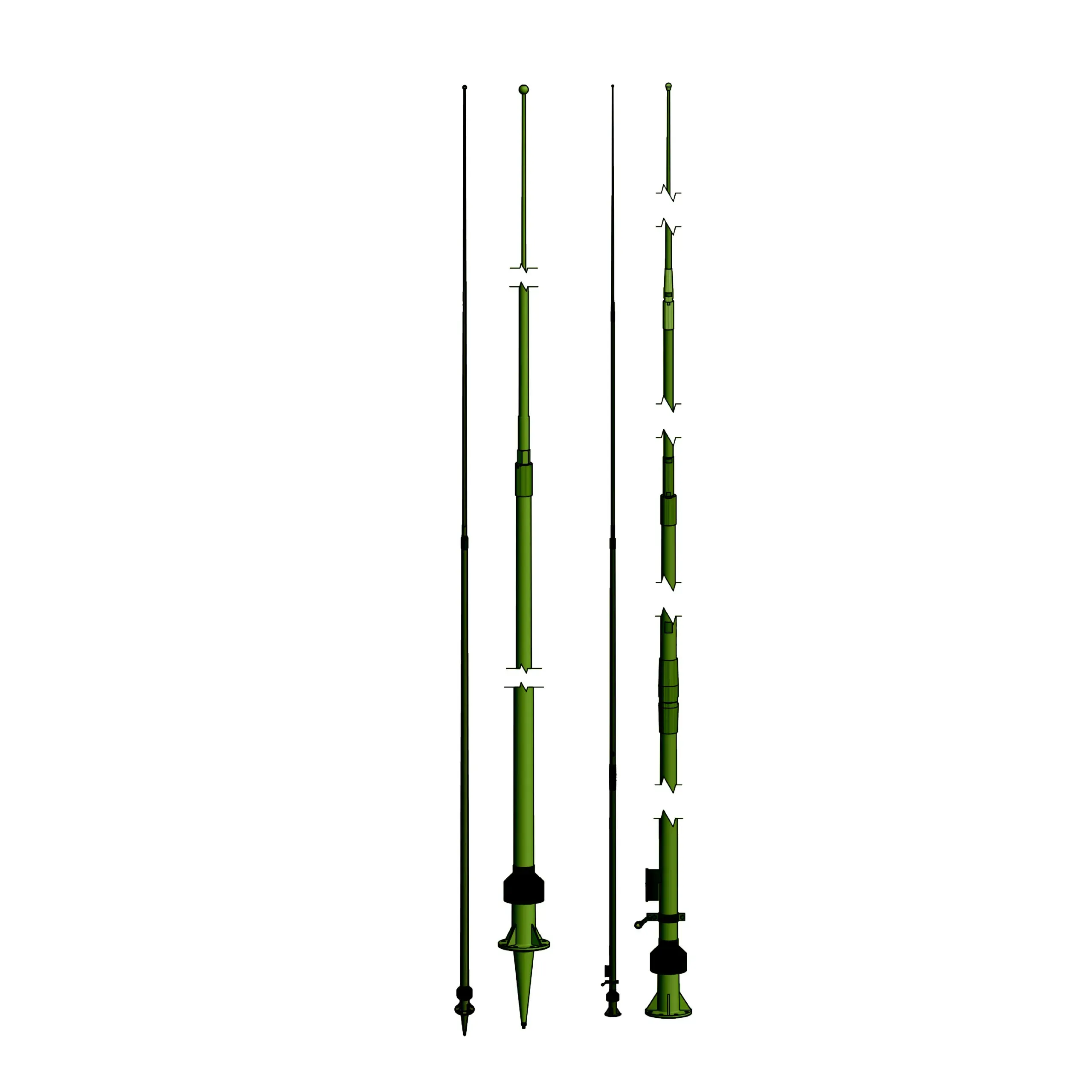

MT-727MLA/Multi-Band LTE Antenna

Model:MT-727MLA
700-2700 MHz (covers multiple LTE bands)
Single connector
Designed for operation on all military & civilian platforms
Designed for operation on shelters, mounted on masts or in other permanent installations
Rugged high quality antenna with a durable construction

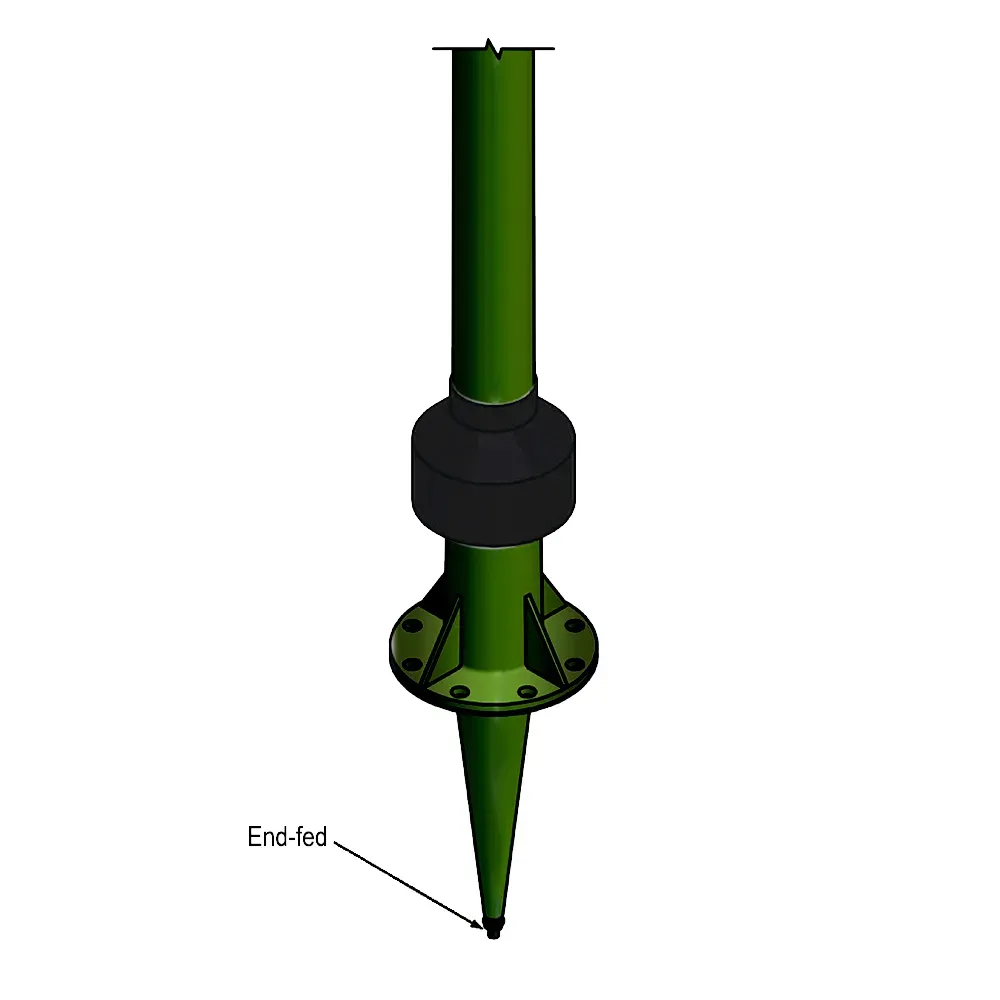

NATO flange base with spring. Base options available including vehicle/ shelter, mast mount and GPS
WhatsApp Chat
Skype
Product Part Number
MT-727MLA
Electrical & Mechanical Specification
Electrical specifications
Frequency range700-2700 MHz
VSWR3.5:1
Nominal impedance50Ω
Power rating40W
GainSee graphs overleaf
Radiation patternOmnidirectional within ±2dB
PolarizationVertical
ConnectorN Type Female (others on request)
Mechanical specifications
DesignStacked dipole elements. Radiating elements completely enclosed in epoxy/fiberglass laminate. Metal parts are brass, aluminum and stainless steel.
Length74cm (29 in), with spring base
WeightWhip: 0.8kg (1.7 lbs) Base: 1.8kg (4.0 lbs)
Wind rating55m/s (123 mph)
FinishPolyurethane lacquer
Temperature range-55°C to +71°C, -67°F to +160°F
