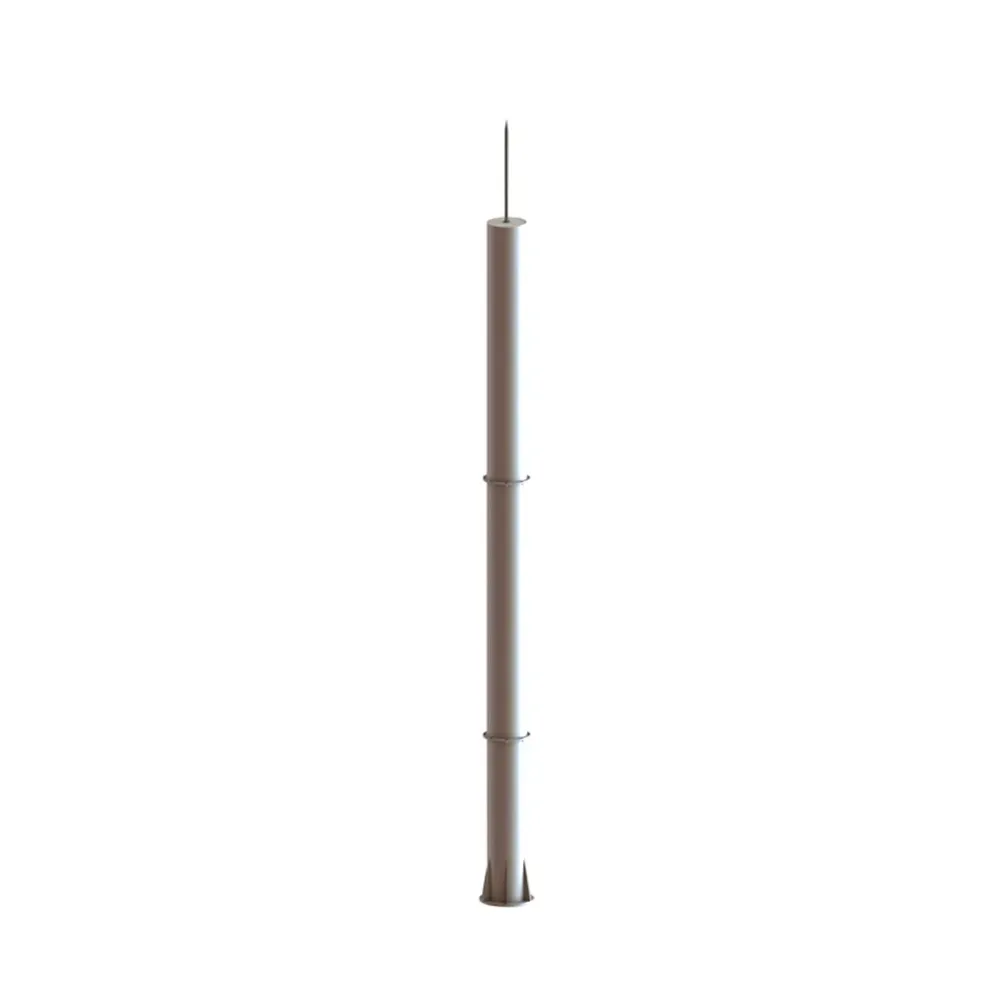

Product code: MT-A3VU110-400
MT-A3VU110-400
| Model :MT-A3VU110-400 |
| Frequency Range : 110-400 MHz |
| Impedance : 50 Ω |
| Gain : 2.5 dBi |
| Weight : 150 Kg |
| Connector : 3 x 7-16f |
Product Part Number
MT-A3VU110-400
Electrical & Mechanical Specification
| Specification: | |||
|---|---|---|---|
| Frequency range | 110 to 400 MHz | Maximum input power | 500 W cw |
| Impedance | 50 Ω | Connector | 3 x 7-16f |
| VSWR in the bands | < 2.0 | Height | 8.40 m |
| Isotropic gain | 2.5 dBi | Radom diameter | 0.42 m |
| Polarization | Vertical | Material | AGS – Fiberglass |

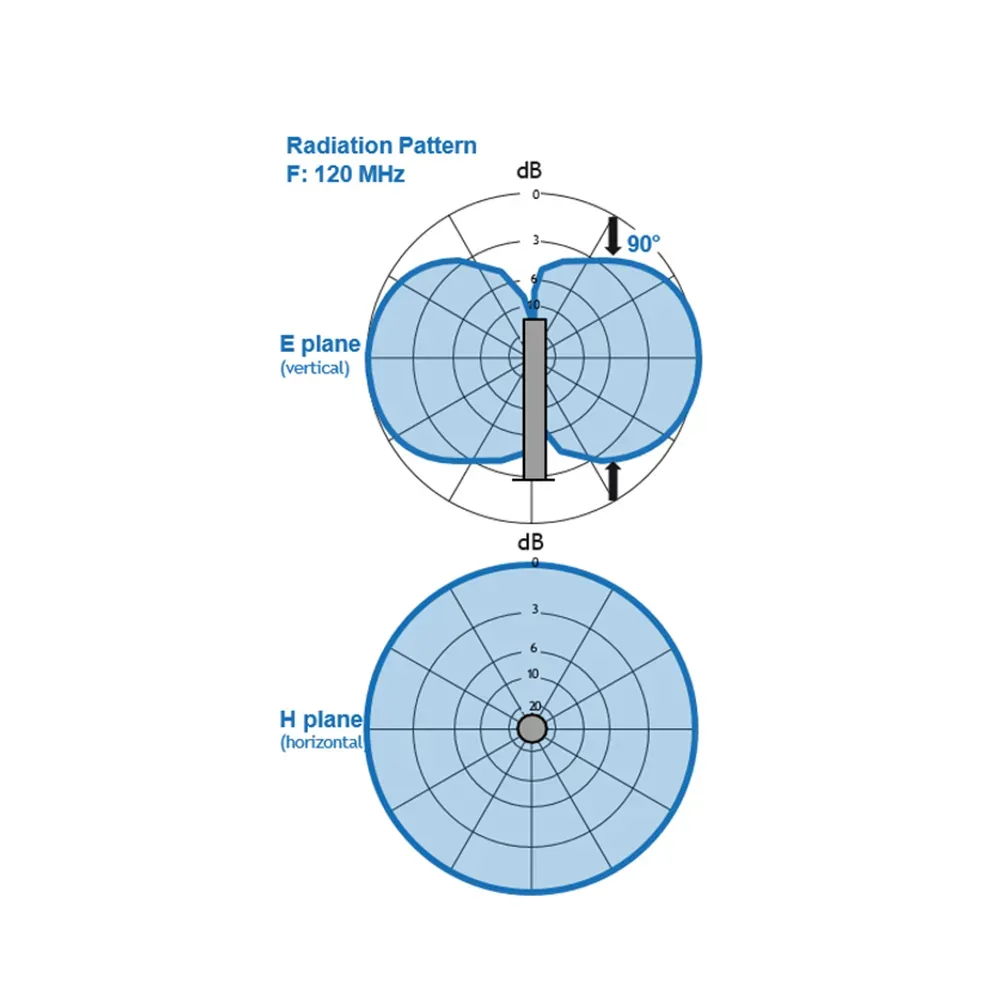

| Radiation pattern | 90° | Weight | 150 kg |
| E plane (vertical) | Omni at ± 0.5 dB | Wind loading area | 2.8 m² |
| H plane (horizontal) | Wind speed resistance | 180 km/h without frost | |
| Isolation between 2 antennas | Wind load at 160 km/h | 330 daN | |
| 2 adjacent antennas | 35dB | Temperature range | -40° to +80°C |
| Top and bottom antennas | 45dB |
