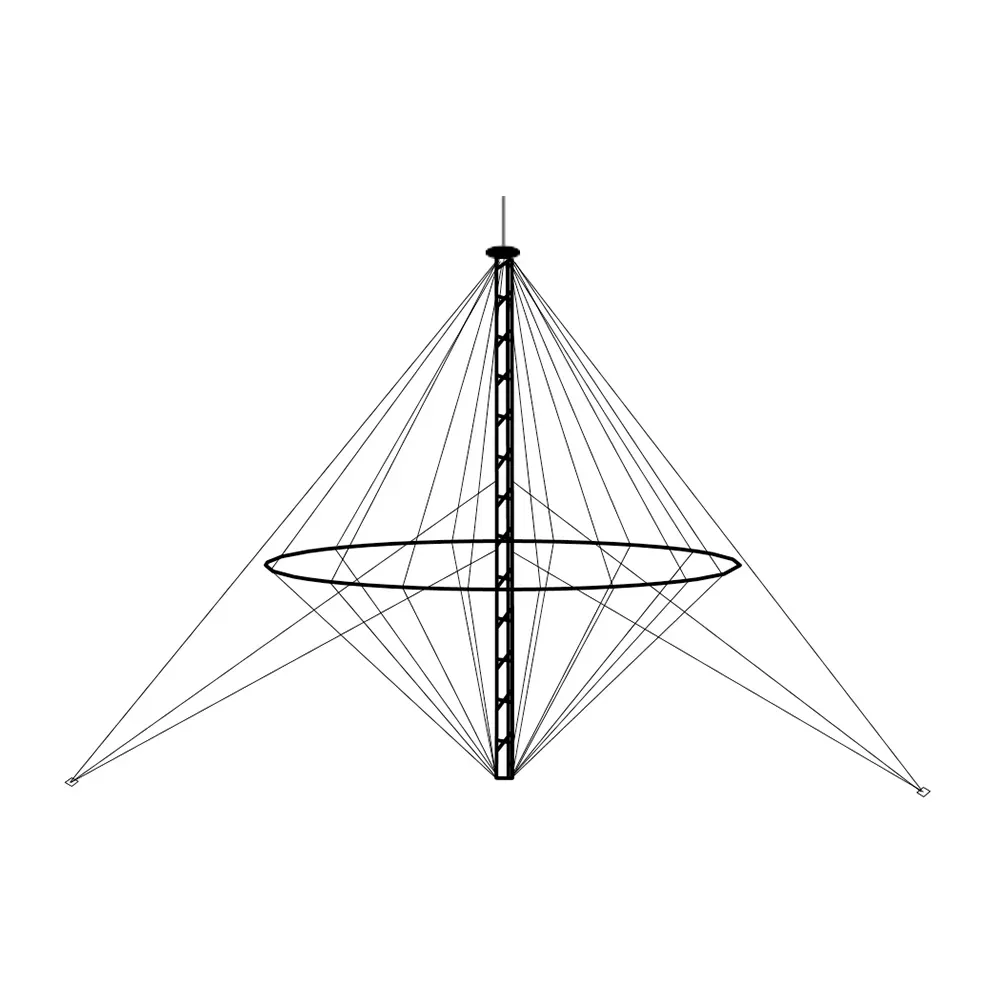

Product code: MT-ABCHF4-15
MT-ABCHF4-15
| Model : MT-ABCHF4-15 |
| Frequency Range : 4-15 MHz |
| Impedance : 50 Ω |
| Temperature Range : -40° to +70°C |
| Connector : EIA7/8” |
Product Part Number
MT-ABCHF4-15
Electrical & Mechanical Specification
| Specification: | |||
|---|---|---|---|
| Frequency range | 4 to 15 MHz | Dimensions on ground | |
| Impedance | 50 Ω | Staying | Ø 16.5 m |
| VSWR in the band | < 2.5 | Standard grounding | Ø 46 m (32 radials) |
| Maximum gain | High density grounding | Ø 60 m (60 radials) | |
| Standard artificial grounding | 3 – 4 dBi | Mast height | 12 m |
| High density artificial grounding | 5 – 6 dBi | Staying | 2 levels of 3 parafil stays |
| Polarization | Vertical | Radiating array material | Stainless steel cables |
| Radiation pattern | See diagrams | Wind speed resistance | 200 km/h without frost |
| Maximum input power | 5 kW cw (option 10kW) | Temperature range | -40° to +70°C |
| Connector | EIA 7/8’’ (option EIA 1.5/8’’) |
