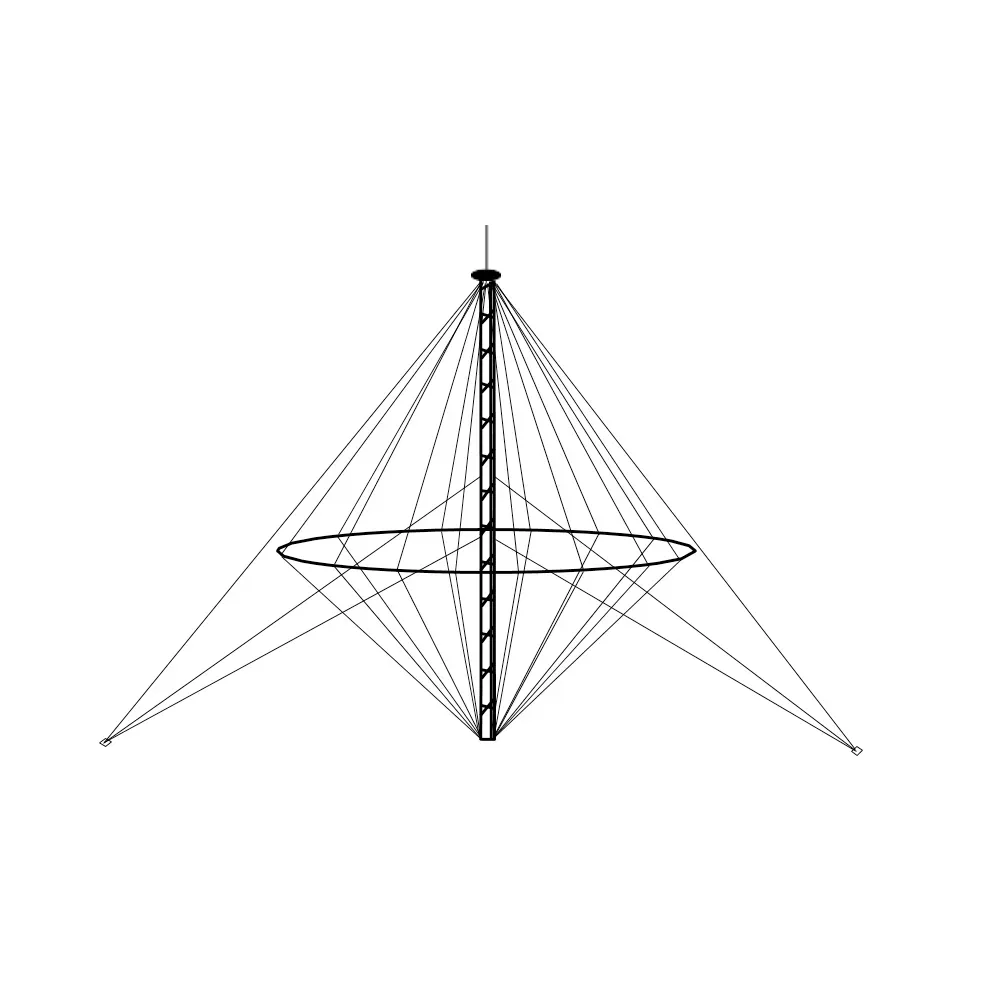

Product code: MT-ABCHF6-28
MT-ABCHF6-28
| Model : MT-ABCHF6-28 |
| Frequency Range : 6-28 MHz |
| Impedance : 50 Ω |
| Temperature Range : -40° to +70°C |
| Connector : 7-16f |
Product Part Number
MT-ABCHF6-28
Electrical & Mechanical Specification
| Specification: | |||
|---|---|---|---|
| Frequency range | 6 to 28 MHz | Dimensions on ground | |
| Impedance | 50 Ω | Staying | Ø 12.5 m |
| VSWR in the band | < 2.5 | Standard grounding | Ø 38 m (24 radials) |
| Maximum gain | High density grounding | Ø 60 m (36 radials) 12 m | |
| Standard artificial grounding | 4 – 5 dBi | Mast height | 7 m |
| High density artificial grounding | 5 – 6 dBi | Staying | |
| Polarization | Vertical | Radiating array material | Stainless steel cables |
| Radiation pattern | See diagrams | Wind speed resistance | 200 km/h without frost |
| Maximum input power | 5 kW cw (option 10kW) | Temperature range | -40° to +70°C |
| Connector | 7-16f (option EIA 7/8’’) |
