Product code: MT-ADH-2-10-12m
MT-ADH-2-10-12m
| Model : MT-ADH-2-10-12m |
| Frequency Range : 2-10 MHz |
| Impedance : 50 Ω |
| Temperature Range : -40° to +70°C |
| Connector : N f |
Product Part Number
MT-ADH-2-10-12m
Electrical & Mechanical Specification
| Specification: | |||
|---|---|---|---|
| Frequency range | 2 to 10 MHz | Dimensions on ground | 58 x 13 m |
| Impedance | 50 Ω | Staying | Ø 12 m |
| VSWR in the band | < 3 | Height | 12 m |
| Maximum Gain | Staying | ||
| at 2 MHz | -4 dBi | Radiating array material | 3 levels of 3 parafil stays |
| at 4 MHz | +4 dBi | Wind speed resistance | Stainless steel cables |
| at 10 MHz | +3 dBi | Temperature range | 160 km/h without frost -40° to +70°C |
| Polarization | Horizontal | Colour | ICAO Red / White |

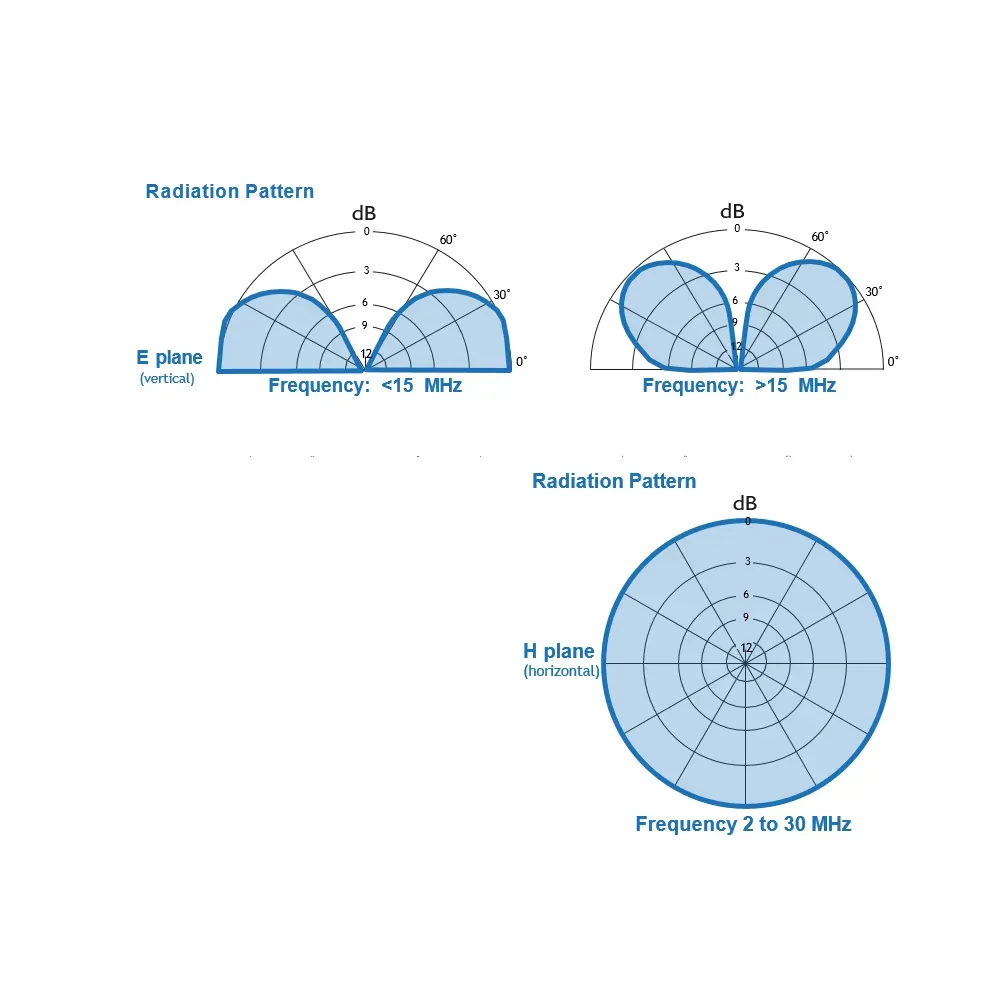

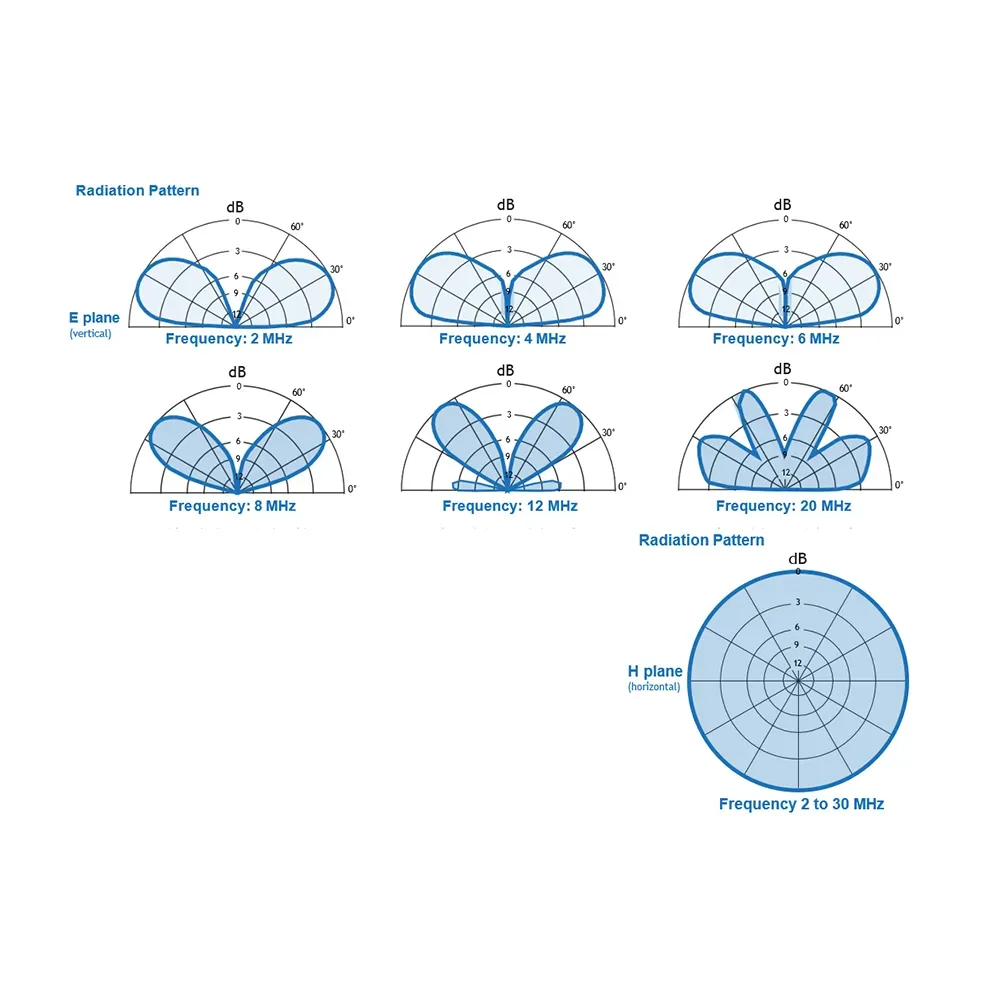

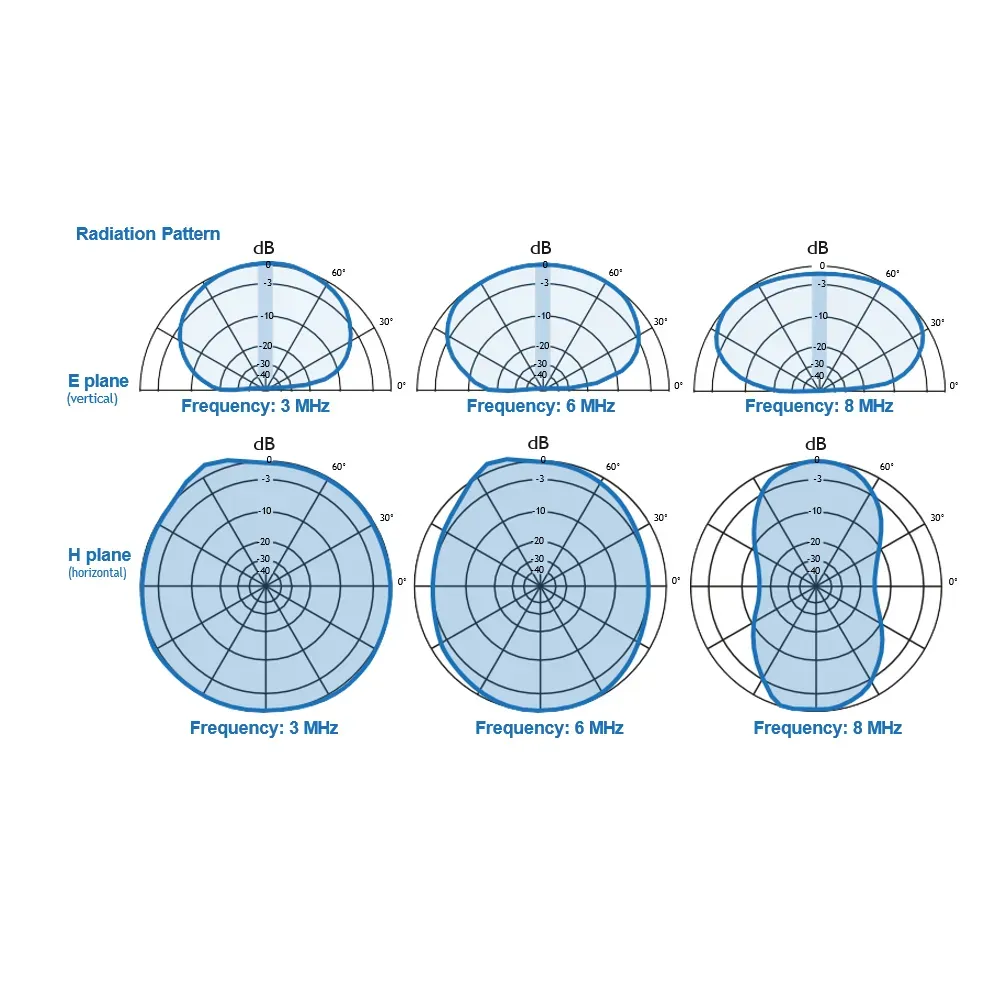

| Radiation pattern | See diagrams | ||
| Maximum input power | 1 kW cw | ||
| Connector | N f |
