Product code: MT-AHFBHP3-10
MT-AHFBHP3-10
| Model : MT-AHFBHP3-10 |
| Frequency Range : 3-30 MHz |
| Impedance : 50 Ω |
| Temperature Range : -40° to +70°C |
| Connector : N f |
Product Part Number
MT-AHFBHP3-10
Electrical & Mechanical Specification
| Specification: | |||
|---|---|---|---|

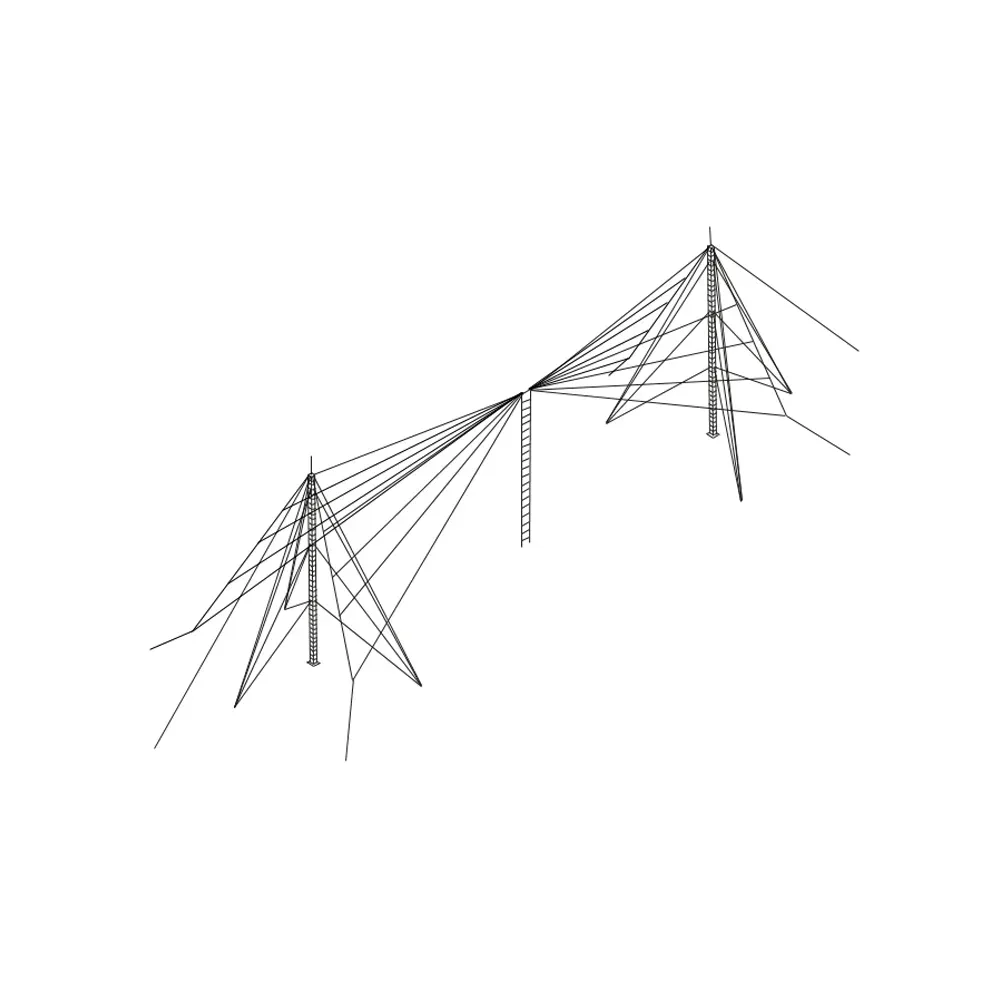

| Frequency range | 3 to 30 MHz | Dimensions on the ground | 75 x 35 m |
| Impedance | 50 Ω | Staying | Ø 20 m |
| VSWR in the band | < 2.5 | Mast height | 15 m |
| Gain | 6 – 8 dBi | Mast spacing | 45 m |
| Polarization | Horizontal | Staying | 3 levels of 3 parafil stays |

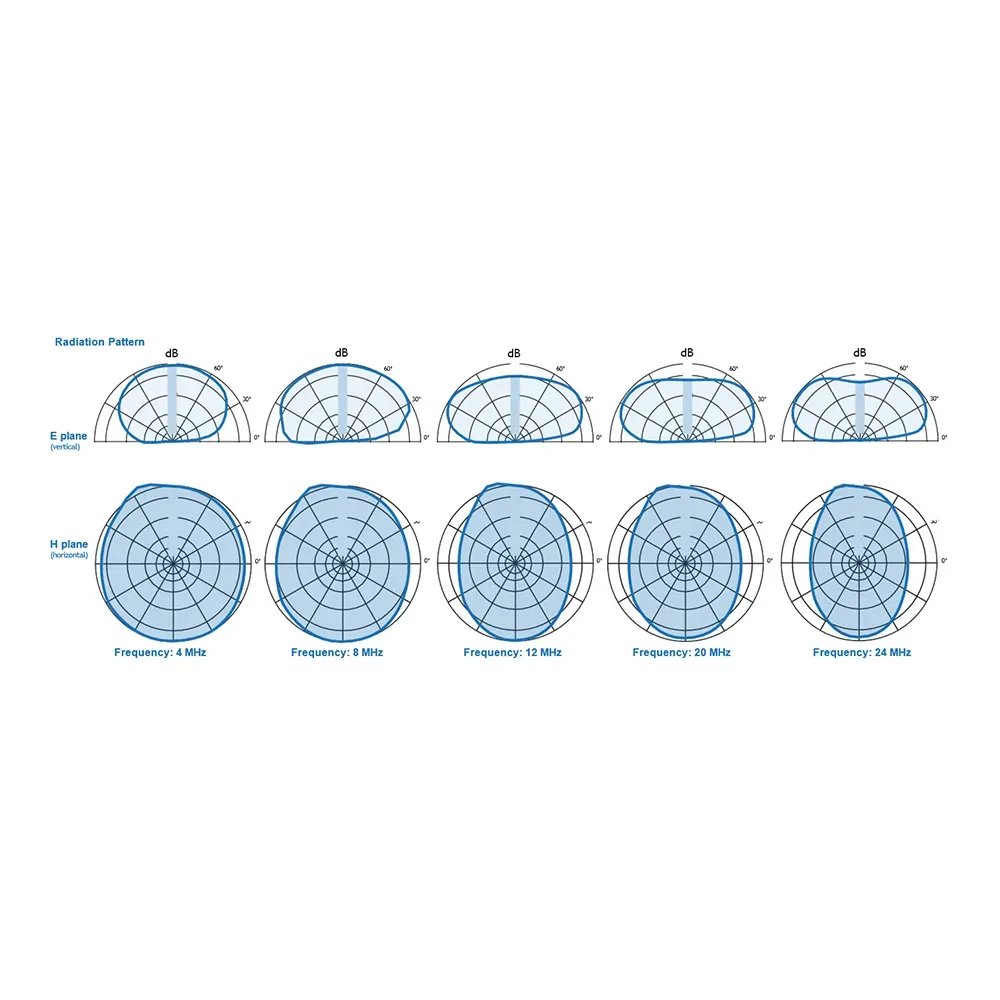

| Radiation pattern | See diagrams | Radiating array material | Stainless steel cables |
| Maximum input power | 400 W cw (option 10kW) | Wind speed resistance | 160 km/h without frost |
| Connector | Nf (option EIA 1’’5/8) | Temperature range | -40° to +70°C |
