Product code: MT-AHFMC10-25

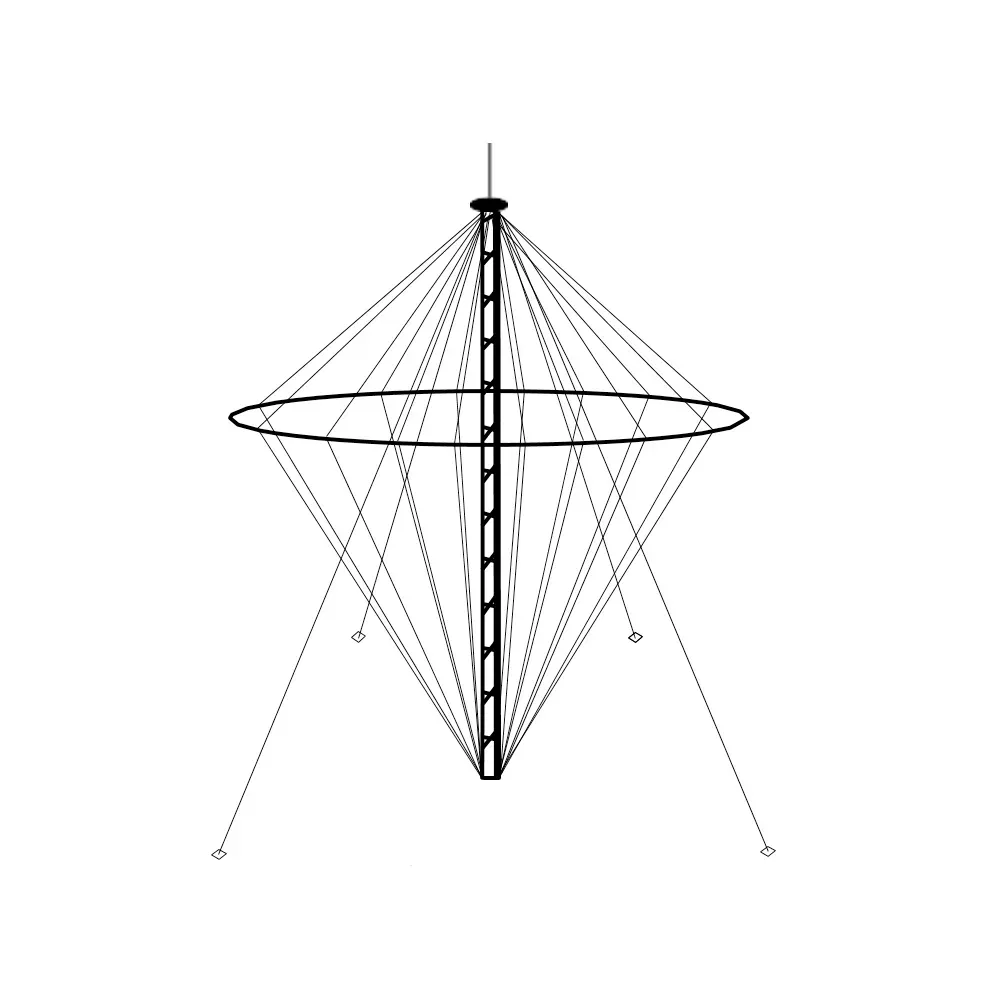

MT-AHFMC10-25
| Model : MT-AHFMC10-25 |
| Frequency Range : 10-30 MHz |
| Impedance : 50 Ω |
| Temperature Range : -40° to +70°C |
| Connector : 7-16f |
Product Part Number
MT-AHFMC10-25
Electrical & Mechanical Specification
| Specification: | |||
|---|---|---|---|
| Frequency range | 10 to 30 MHz | Dimensions on ground | |
| Impedance | 50 Ω | Staying | Ø 8 m |
| VSWR in the band | < 2 | Standard grounding | Ø 30 m (60 radials) |
| Maximum gain | Mast height | 6 m | |
| Standard artificial grounding | 3 – 4 dBi | Staying | 1 level of 3 parafil stays |
| Polarization | Vertical | Radiating array material | Stainless steel cables |
| Radiation pattern | See diagrams | Wind speed resistance | 160 km/h without frost |
| Maximum input power | 5 kW cw | Temperature range | -40° to +70°C |
| Connector | 7-16 f |
