Product code: MT-ASDHF2-30
MT-ASDHF2-30
| Model : MT-ASDHF2-30 |
| Frequency Range : 2-30 MHz |
| Impedance : 50 Ω |
| Temperature Range : -40° to +70°C |
| Connector : N f |
Product Part Number
MT-ASDHF2-30
Electrical & Mechanical Specification
| Specification: | |||
|---|---|---|---|

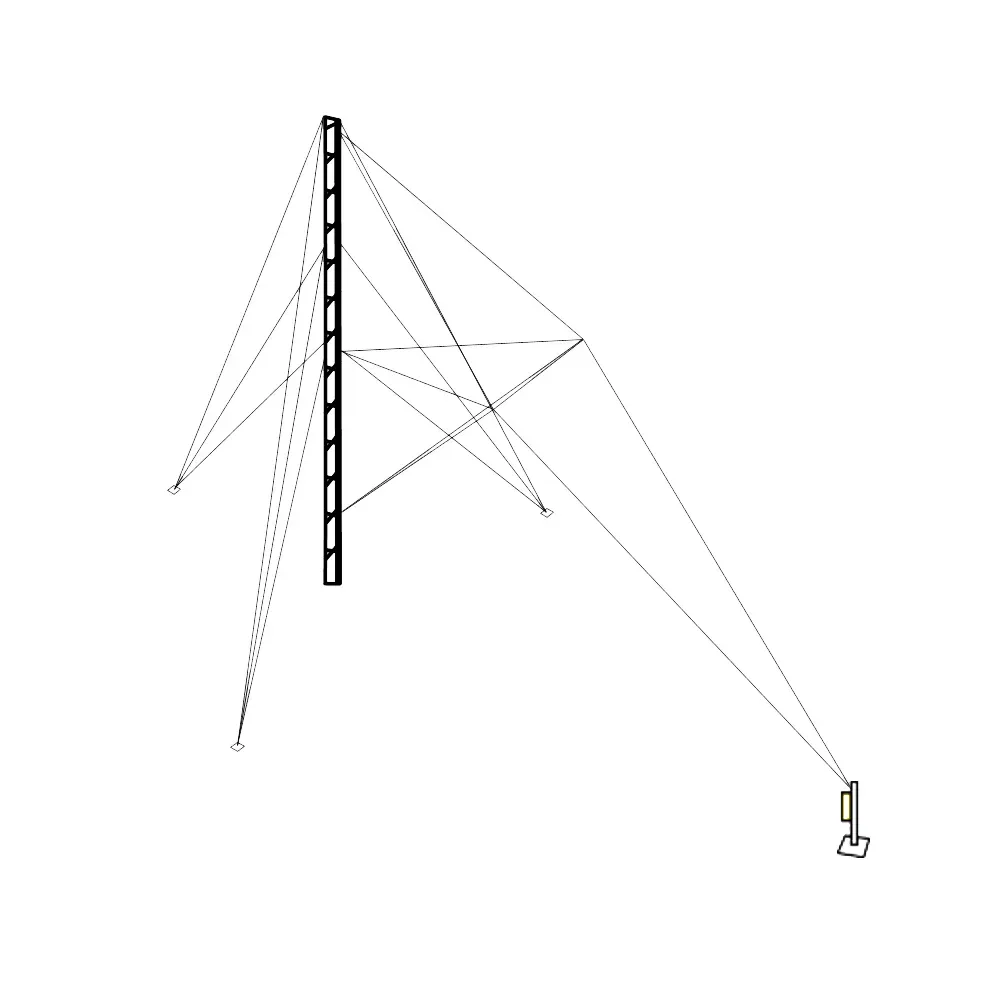

| Frequency range | 2 to 30 MHz | Dimensions on ground | |
| Impedance | 50 Ω | Trapezium (LB x SB x H) | 8 x 6 x 36 m |
| VSWR in the band | < 5 (5-10 MHz) | Mast height | AGS / fiberglass |
| Maximum gain | standard version | 16 m | |
| at 3 MHz | 8 dBi | tactical version | 12 m |
| at 6 MHz | – 1 dBi | Staying | |
| at 15 MHz | + 4dBi | standard version | 4 levels of 3 stays |
| Polarization | Horizontal | tactical version | 3 levels of 4 stays |
| Radiation pattern | See diagrams | Radiating array material | Stainless steel cables |
| Maximum input power | 1 kW cw | Wind speed resistance | 200 km/h without frost |
| Connector | N f | Temperature range | -40° to +70°C |
